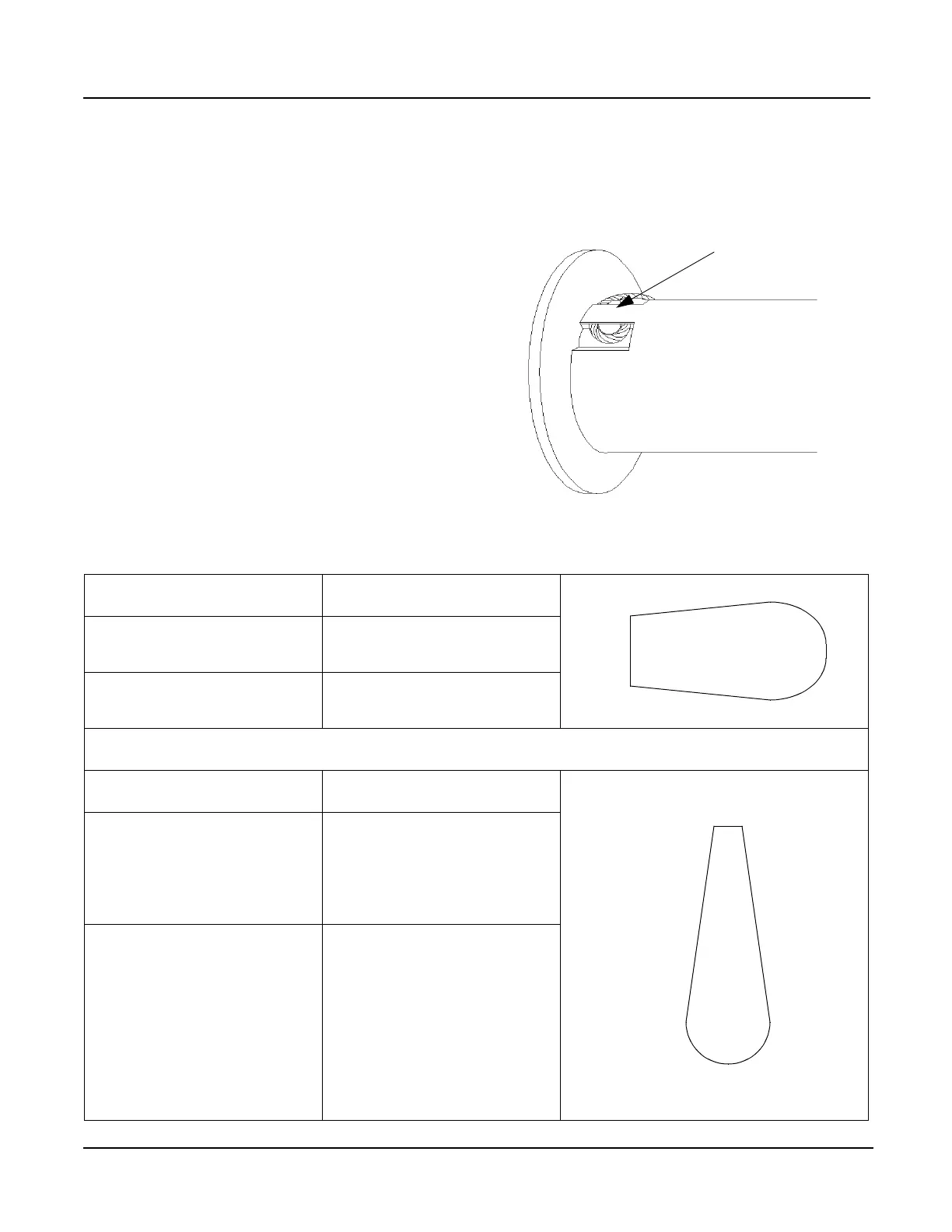

Install cable on the winch drum in accordance with the
following procedure.
1.Position the cable over the boom tip sheave and
route back to the winch drum.
2.Position the winch drum with the cable anchor slot on
top.
3.Insert cable through slot and position around the ca-
ble wedge.
4.Position the anchor wedge in the drum slot; pull firm-
ly on the free end of the cable to secure the wedge.
5.Slowly rotate the drum, ensuring the first layer of ca-
ble is evenly wound on the drum.
6.Install the remainder of the cable, as applicable.
The end of the cable should be even with the bottom of
the anchor wedge.
NOTE: If the wedge does not seat properly in the slot,
carefully tap the top of the wedge with a mallet.
MAINTENANCE AND LUBRICATION
WINCH DRUM WEDGES
WHERE USED
MAIN WINCH
AUXILIARY WINCH
PART NUMBER
216529
216529
CABLE SOCKETS AND WEDGES
WHERE USED
3/4” CABLE SOCKET & WEDGE
3/4” SOCKET WEDGE
PART NUMBER
1234-44
218534
WEDGE
