To Next Page

To Previous Page

T1CC0

T1CCn T1CCn

T1CC0

T1CCn

T1CCn T1CCn

0000h

0-SetOutputonCompare

1-ClearOutputonCompare

5-ClearWhen T1CC0,SetWhen T1CCn

6-SetWhen T1CC0,ClearWhen T1CCn

2- ToggleOutputonCompare

3-SetOutputonCompare-Up,

Clearon Compare-Down

T0313-01

4-ClearOutputonCompare-Up,

Seton Compare-Down

Output Compare Mode

www.ti.com

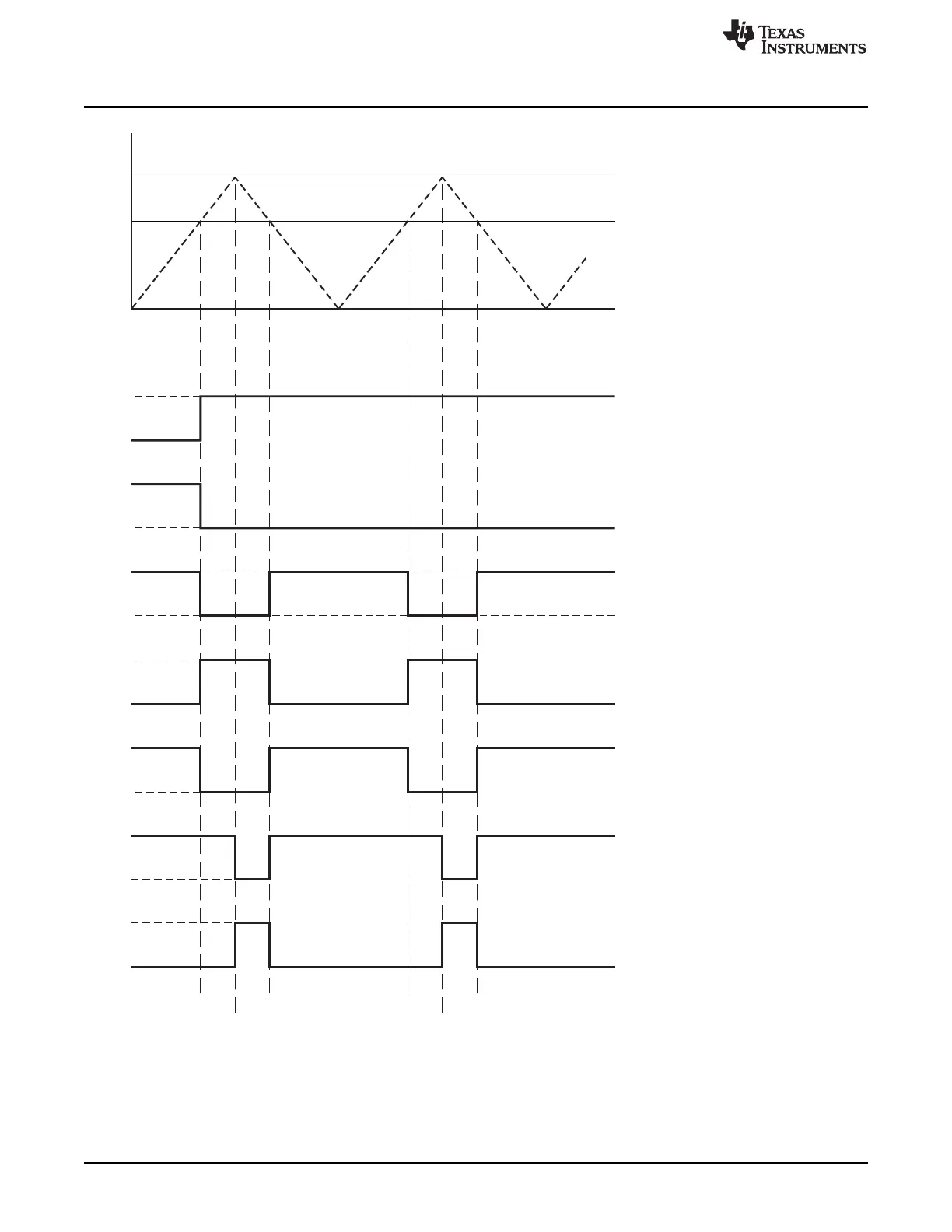

Figure 9-6. Output Compare Modes, Timer Up/Down Mode

114

Timer 1 (16-Bit Timer) SWRU191C–April 2009–Revised January 2012

Submit Documentation Feedback
