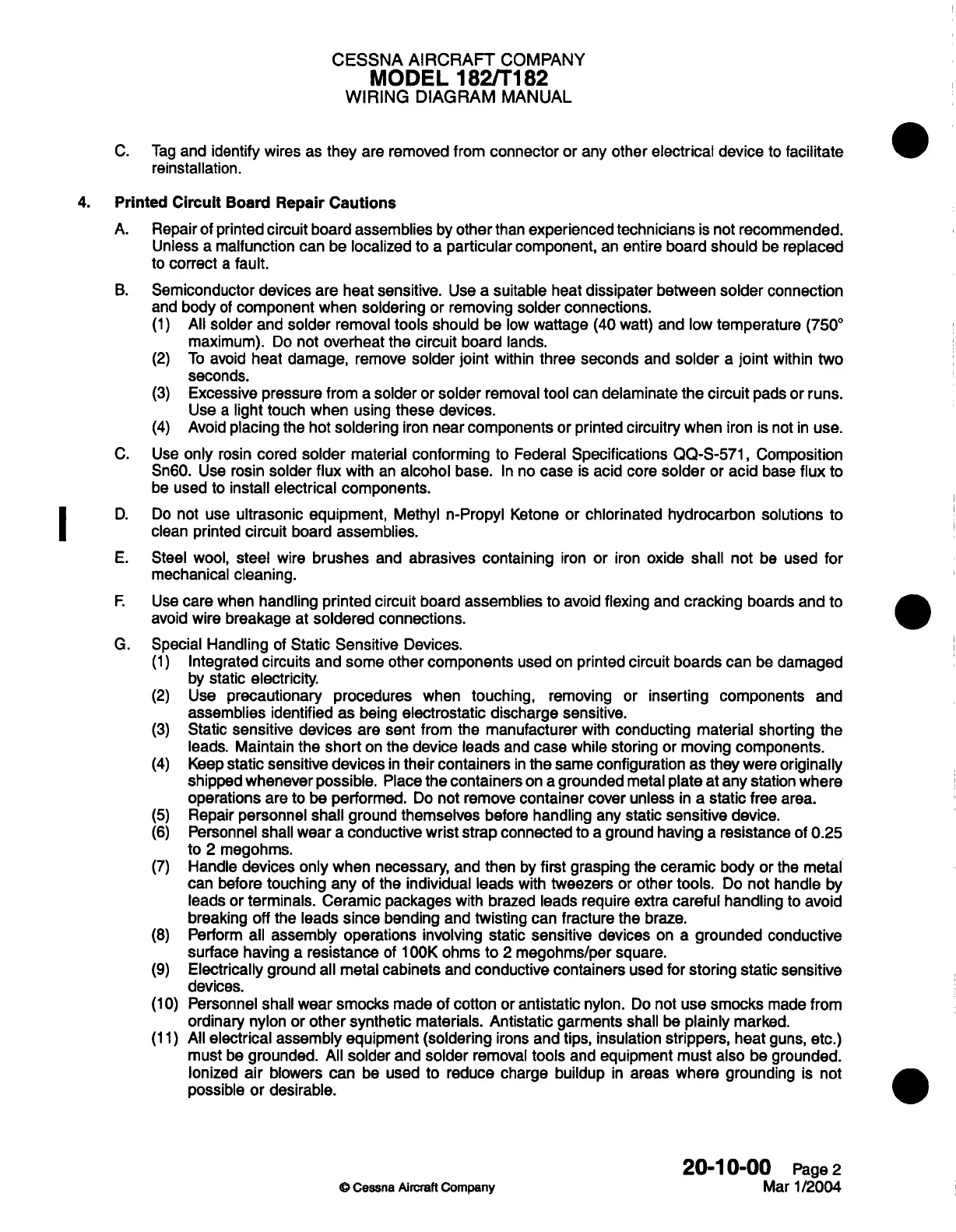

CESSNA AIRCRAFT
COMPANY
MODEL
182/T182
WIRING
DIAGRAM
MANUAL
C.
Tag
and identify
wires
as
they
are
removed
from
connector
or
any
other
electrical
device
to
facilitate
reinstallation.
4.
Printed
Circuit
Board
Repair
Cautions
A.
Repair
of printed
circuit
board
assemblies
by
other
than
experienced technicians
is
not
recommended.
Unless a
malfunction
can
be
localized to
a
particular
component,
an
entire board
should
be
replaced
to
correct
a
fault.
B.
Semiconductor
devices
are heat
sensitive.
Use
a
suitable
heat
dissipater
between
solder
connection
and
body
of
component
when
soldering
or
removing
solder
connections.
(1)
All
solder
and
solder
removal
tools
should
be
low
wattage
(40
watt)
and
low
temperature
(750°
maximum).
Do
not
overheat
the
circuit
board
lands.
(2)
To
avoid
heat
damage,
remove
solder
joint
within
three
seconds
and
solder
a
joint
within
two
seconds.
(3)
Excessive
pressure from
a
solder
or
solder
removal
tool can
delaminate
the
circuit
pads
or
runs.
Use
a
light
touch
when
using
these
devices.
(4)
Avoid
placing
the hot
soldering
iron
near
components
or
printed
circuitry
when
iron
is
not
in
use.
C.
Use
only
rosin
cored
solder
material
conforming
to
Federal
Specifications
QQ-S-571, Composition
Sn60.
Use
rosin
solder
flux
with
an
alcohol
base.
In
no
case
is
acid core
solder
or
acid
base
flux
to
be
used
to
install
electrical components.
D.
Do
not
use
ultrasonic equipment,
Methyl
n-Propyl
Ketone
or
chlorinated
hydrocarbon
solutions
to
clean
printed
circuit
board
assemblies.
E.
Steel
wool,
steel
wire
brushes
and
abrasives containing
iron
or
iron
oxide
shall not
be
used
for
mechanical
cleaning.
F.
Use
care
when
handling
printed circuit
board
assemblies
to
avoid
flexing
and
cracking
boards
and
to
avoid
wire
breakage
at
soldered
connections.
G.
Special
Handling
of
Static Sensitive
Devices.
(1)
Integrated
circuits
and
some
other
components
used
on
printed
circuit
boards
can
be
damaged
by
static electricity.
(2)
Use
precautionary procedures
when
touching,
removing
or
inserting
components
and
assemblies identified as
being
electrostatic discharge
sensitive.
(3)
Static
sensitive
devices
are
sent
from
the
manufacturer
with
conducting
material shorting
the
leads.
Maintain
the
short
on
the
device leads
and
case
while
storing or
moving components.
(4)
Keep
static
sensitive
devices
in
their containers
in
the
same
configuration
as
they
were
originally
shipped whenever
possible.
Place
the containers
on
a
grounded
metal
plate
at
any
station
where
operations
are
to
be
performed.
Do
not
remove
container
cover
unless
in
a
static
free
area.
(5)
Repair
personnel
shall
ground
themselves
before
handling
any
static
sensitive
device.
(6)
Personnel
shall
wear
a
conductive
wrist
strap
connected
to
a
ground
having
a
resistance
of
0.25
to
2
megohms.
(7)
Handle
devices
only
when
necessary,
and
then
by
first
grasping the
ceramic body
or
the
metal
can
before
touching
any
of
the
individual
leads
with
tweezers or
other
tools.
Do
not
handle
by
leads
or
terminals.
Ceramic
packages
with
brazed leads require
extra
careful
handling
to avoid
breaking
off
the leads
since
bending
and
twisting
can fracture
the
braze.
(8)
Perform
all
assembly
operations
involving
static
sensitive
devices
on
a
grounded
conductive
surface
having
a
resistance
of
100K
ohms
to
2
megohms/per
square.
(9)
Electrically
ground
all
metal
cabinets
and
conductive
containers
used
for
storing static
sensitive
devices.
(10)
Personnel
shall
wear
smocks
made of
cotton
or
antistatic
nylon.
Do
not
use
smocks
made
from
ordinary
nylon
or
other
synthetic
materials.
Antistatic
garments
shall
be
plainly
marked.
(11)
All
electrical
assembly
equipment
(soldering
irons
and
tips,
insulation
strippers,
heat
guns,
etc.)
must
be
grounded.
All
solder
and
solder
removal
tools
and
equipment
must
also
be
grounded.
Ionized
air
blowers
can
be
used
to
reduce
charge buildup
in
areas
where
grounding
is
not
possible
or
desirable.
