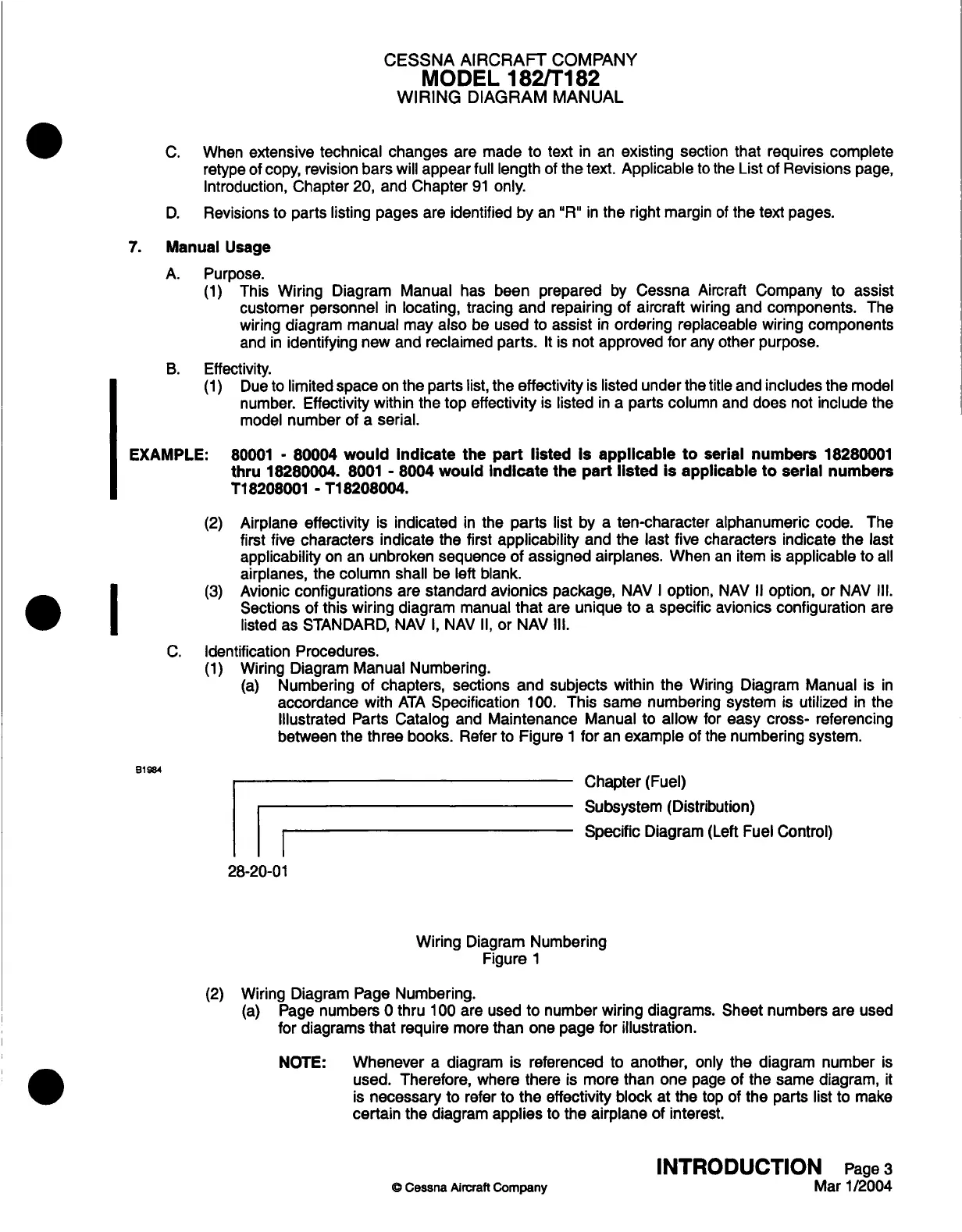

CESSNA
AIRCRAFT
COMPANY
MODEL 182/T182
WIRING
DIAGRAM
MANUAL
C.
When extensive technical
changes are made
to text in an existing
section that requires
complete
retype of copy, revision
bars will appear full length of the text. Applicable
to the List of Revisions page,
Introduction,
Chapter
20, and
Chapter
91 only.
D. Revisions to
parts listing pages are
identified by an "R"
in the right margin
of the text pages.
7. Manual Usage
A. Purpose.
(1)
This Wiring Diagram
Manual has been
prepared by Cessna
Aircraft Company
to assist
customer
personnel in
locating, tracing and
repairing of aircraft
wiring and components.
The
wiring diagram
manual may also
be used to assist
in ordering replaceable
wiring components
and in identifying new and reclaimed
parts. It is not approved for any
other purpose.
B. Effectivity.
(1) Due
to limited space on
the parts list, the effectivity
is listed under
the title and includes
the model
number. Effectivity within the
top effectivity is listed in a parts column
and does not include the
model
number
of a serial.
EXAMPLE:
80001 - 80004
would Indicate the part
listed Is applicable
to serial numbers
18280001
thru 18280004. 8001
- 8004 would Indicate
the part listed
is applicable to
serial numbers
T18208001 - T18208004.
(2) Airplane
effectivity is
indicated in the parts
list by a ten-character
alphanumeric code.
The
first five characters
indicate the first
applicability and
the last five characters
indicate the last
applicability
on an unbroken sequence of assigned
airplanes. When an item is applicable to
all
airplanes, the
column shall be
left blank.
(3) Avionic
configurations
are standard
avionics
package, NAV
I option, NAV
II option, or
NAV III.
Sections of
this wiring diagram
manual that are unique
to a specific avionics
configuration
are
listed as STANDARD,
NAV I, NAV
II, or NAV III.
C. Identification Procedures.
(1) Wiring
Diagram Manual
Numbering.
(a) Numbering of
chapters, sections
and subjects within
the Wiring Diagram
Manual is in
accordance with
ATA Specification
100. This same numbering
system
is utilized in the
Illustrated Parts
Catalog and Maintenance
Manual to
allow for easy cross-
referencing
between
the three books.
Refer to Figure
1 for an example
of the numbering
system.
B1984
Chapter (Fuel)
Subsystem
(Distribution)
Wiring Diagram Numbering
Figure 1
(2)
Wiring Diagram
Page Numbering.
(a) Page numbers
0 thru 100 are
used to number wiring
diagrams. Sheet
numbers are used
for
diagrams that
require more
than one
page for illustration.
NOTE:
Whenever a diagram
is referenced
to another, only
the diagram number
is
used. Therefore, where there
is more than one page of the same
diagram, it
is necessary to refer to the effectivity block at the top of the parts list to make
certain
the diagram applies to
the airplane of interest.
INTRODUCTION Page 3
© Cessna Aircraft
Company
Mar 1/2004
