Textron Cessna 182S - FIGURE 02 - MAGNETO SYSTEM - WITHOUT NAV III AVIONICS

CESSNA
AIRCRAFT
COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
1. ALL WIRE 22AWG. EXCEPT AS NOTED
USE THE GRD TERMINAL LOCATED ON
THE BACK/CENTER OF SI002 SWITCH.
GROUND STUD LOCATED ON MAGNETO
CASE
LABLED
AS "GND".
RN001

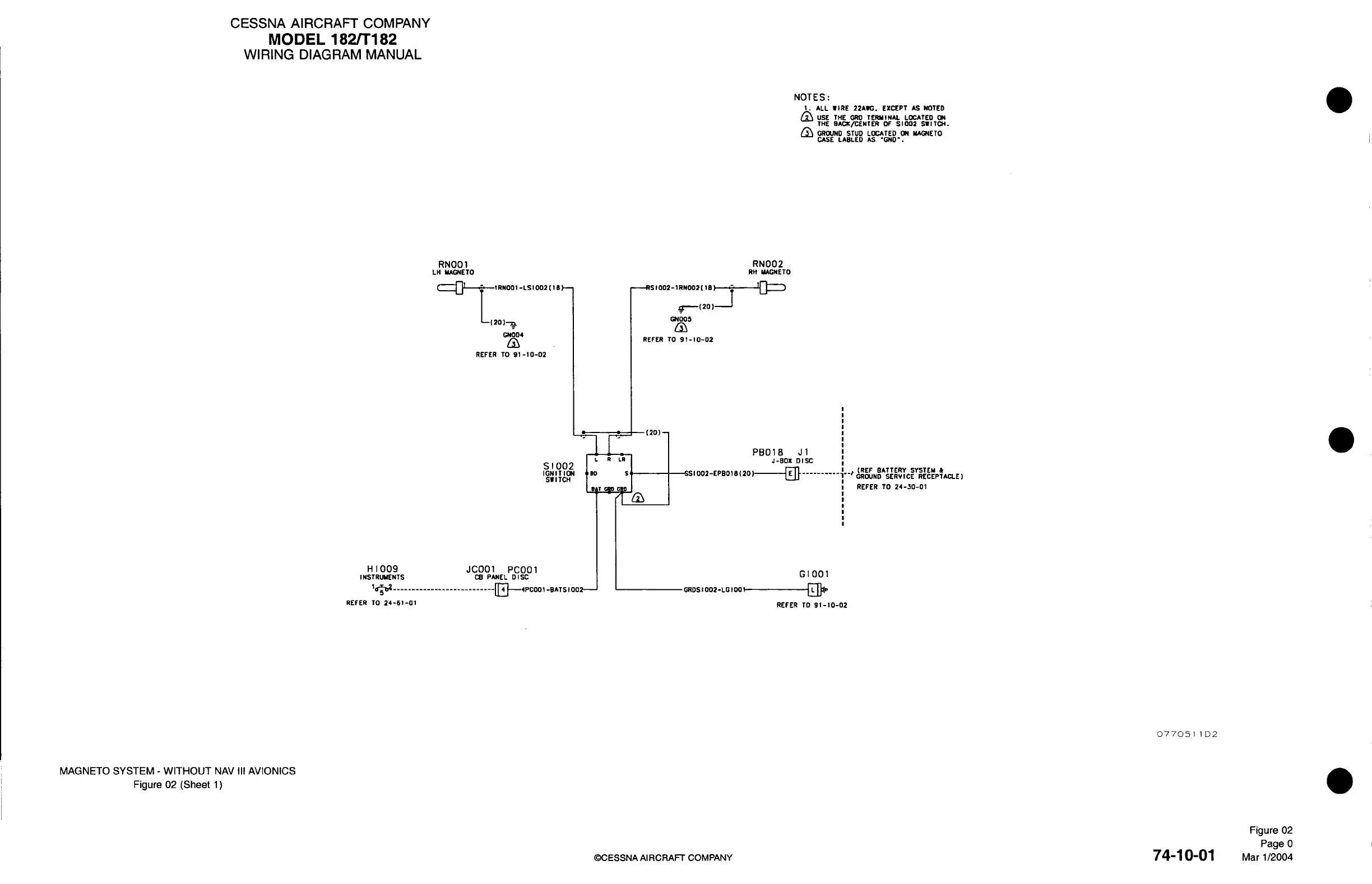

MAGNETO SYSTEM - WITHOUT NAV III AVIONICS
Figure 02 (Sheet 1)
©CESSNA AIRCRAFT COMPANY
0770511D2
74-10-01
Figure 02
Page 0
Mar 1/2004
