CESSNA AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
1. ALL WIRE 22 AWG. EXCEPT AS NOTED.
PART OF COIL CORD (REF CONTROL WHEEL ASSY).
WIRE
SUPPLIED WITH
LIGHT ASSY.
WIRE, PIN AND RING TERMINAL
SUPPLIED WITH
LIGHT ASSY.
REF STINGER
ASSY FOR CONNECTOR
AND CONTACT CALL OUT.
REF WINGTIP ASSY FOR CONNECTOR CALL OUT.
REF DES J1506 CHANGES
TO J1514 WITH NAV
PACKAGE. OR
ELECTRIC
TRIM PROVISIONS.
WIRE AND CONNECTOR
SUPPLIED WITH LIGHT
ASSY.

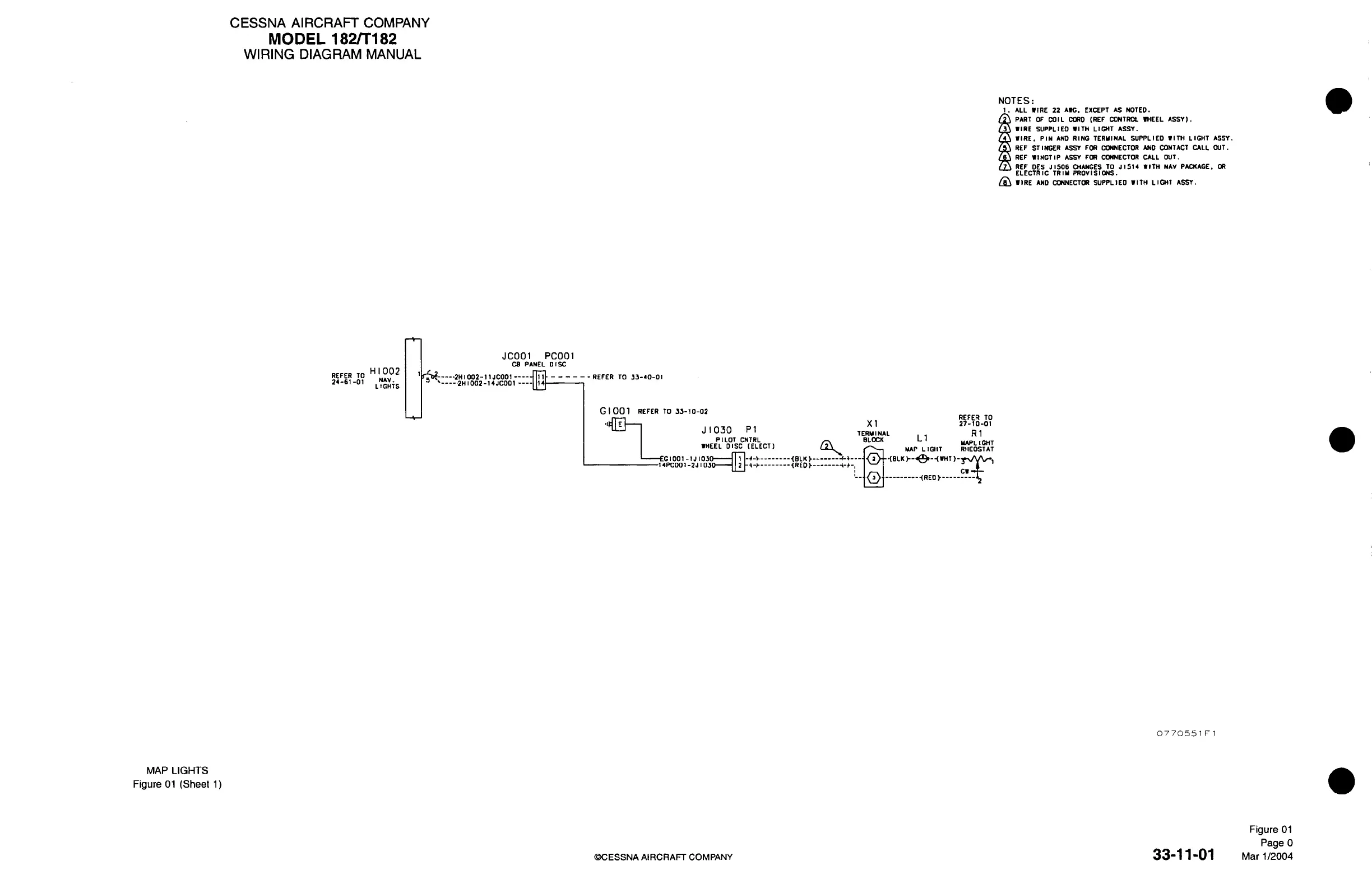

MAP
LIGHTS
Figure
01 (Sheet
1)
©CESSNA AIRCRAFT COMPANY
Figure 01
Page 0
Mar 1/2004
33-11-01
