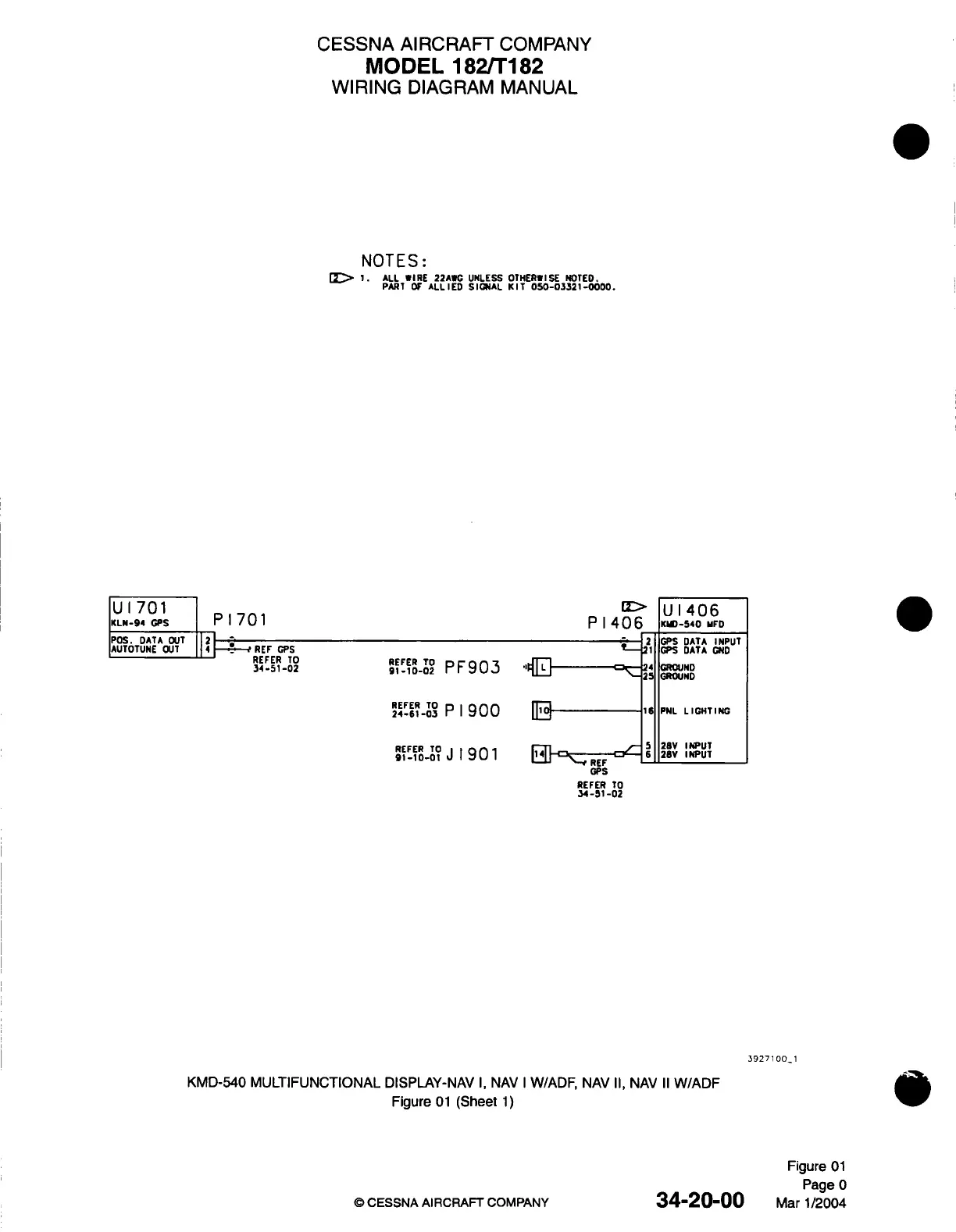

Textron Cessna 182S - FIGURE 01 - KMD-540 MULTIFUNCTIONAL DISPLAY-NAV I, NAV I W;ADF, NAV II, NAV II W;ADF

CESSNA AIRCRAFT
COMPANY
MODEL 182/T182
WIRING
DIAGRAM
MANUAL
NOTES:
1. ALL WIRE
22AWG UNLESS OTHERWISE
NOTED.
PART OF ALLIED
SIGNAL KIT
050-03321-0000.
KMD-540
MULTIFUNCTIONAL
DISPLAY-NAV
I, NAV I
W/ADF,
NAV II, NAV
II W/ADF
Figure 01 (Sheet 1)
© CESSNA AIRCRAFT COMPANY
Figure 01
Page 0
Mar
1/2004
34-20-00
