CESSNA AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
THE SWITCH/INDICATOR IS SUPPLIED WITH THE ELT SYSTEM.
IT COMES WITH A 1/4 WATT RESISTOR MOUNTED ON IT.
REFER TO THE SKETCH BELOW FOR PIN NUMBERS:
2 5
THE ANTENNA AND
CABLE ARE SUPPLIED WITH
THE ELT TRANSMITTER.
3. ALL WIRE 22AWG UNLESS OTHERWISE NOTED.
THE WIRE LENGTH FROM THE BACK OF JZ905 & SI900 TO BE 2.5" +/- 0.5".
CONNECTOR SUPPLIED WITH ELT KIT.
PC007

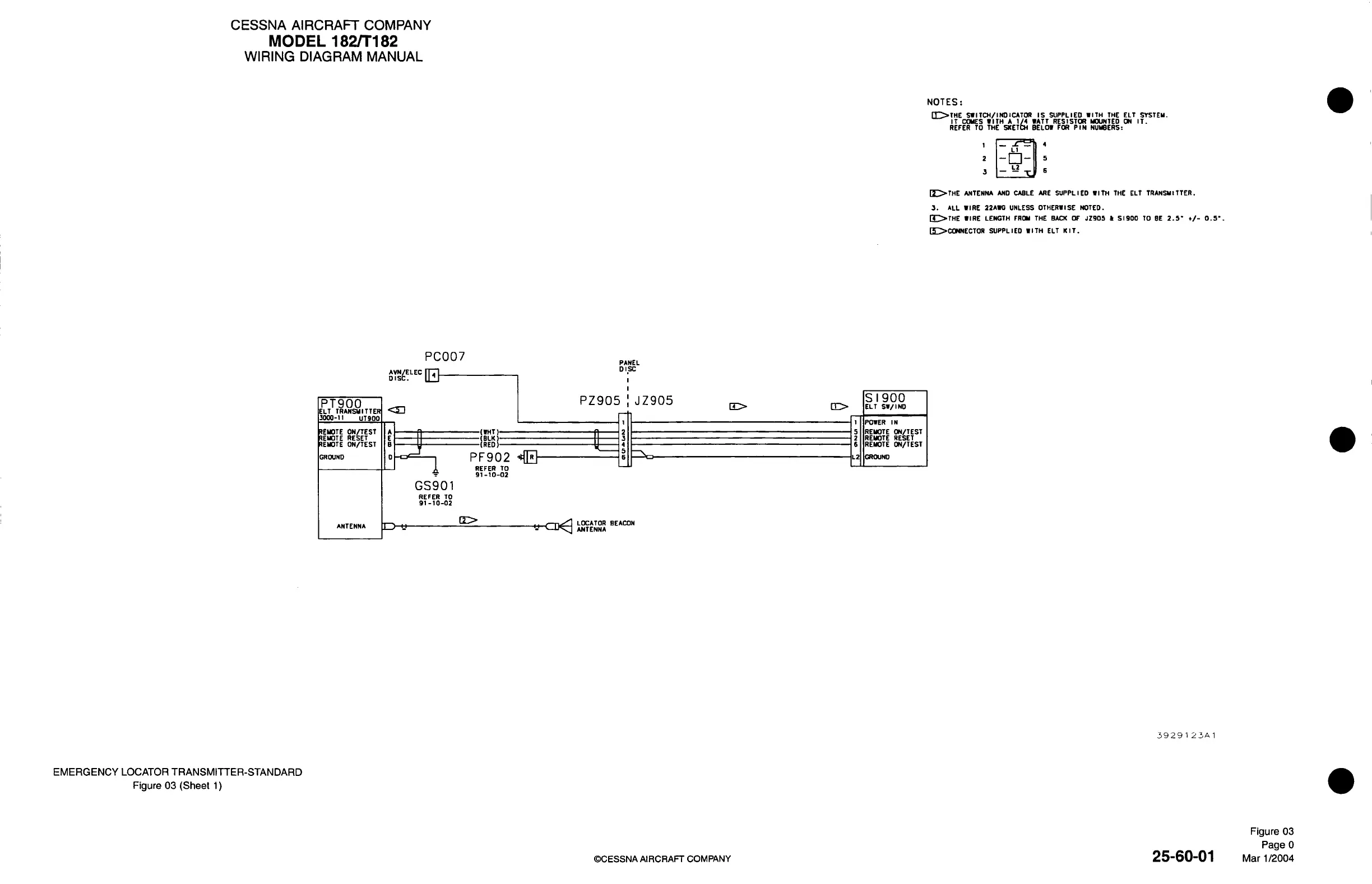

EMERGENCY LOCATOR TRANSMITTER-STANDARD
Figure 03 (Sheet 1)
©CESSNA AIRCRAFT COMPANY
25-60-01
3929123A1
Figure 03
Page 0
Mar 1/2004
