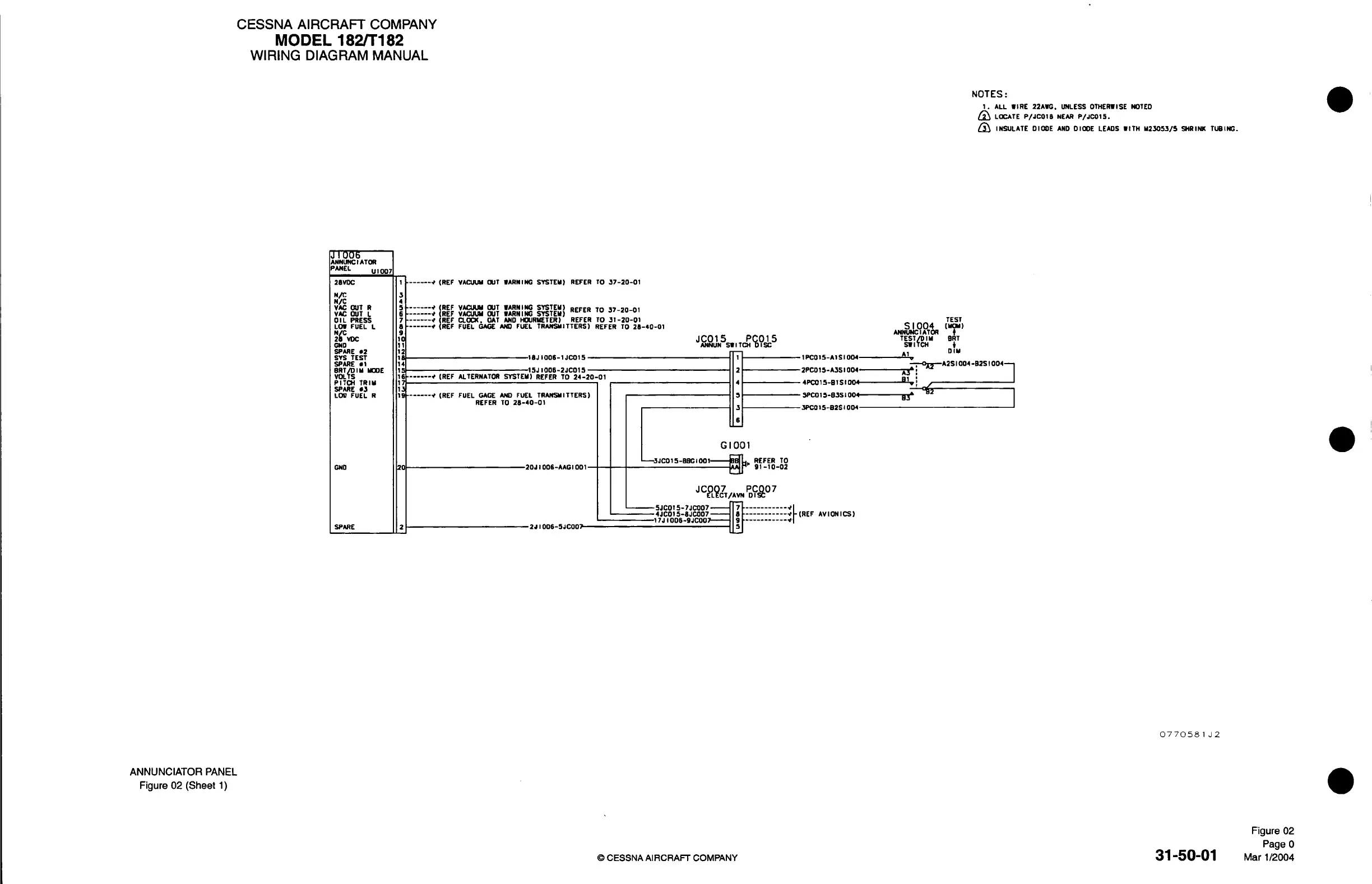

Textron Cessna 182S - FIGURE 02 - ANNUNCIATOR PANEL

CESSNA AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
1. ALL WIRE 22AWG. UNLESS OTHERWISE NOTED
LOCATE P/JC018 NEAR P/JC015.
INSULATE DIODE AND DIODE LEADS WITH M23053/5 SHRINK TUBING.
31-50-01
Figure 02
Page 0
Mar 1/2004
20
SPARE
2
