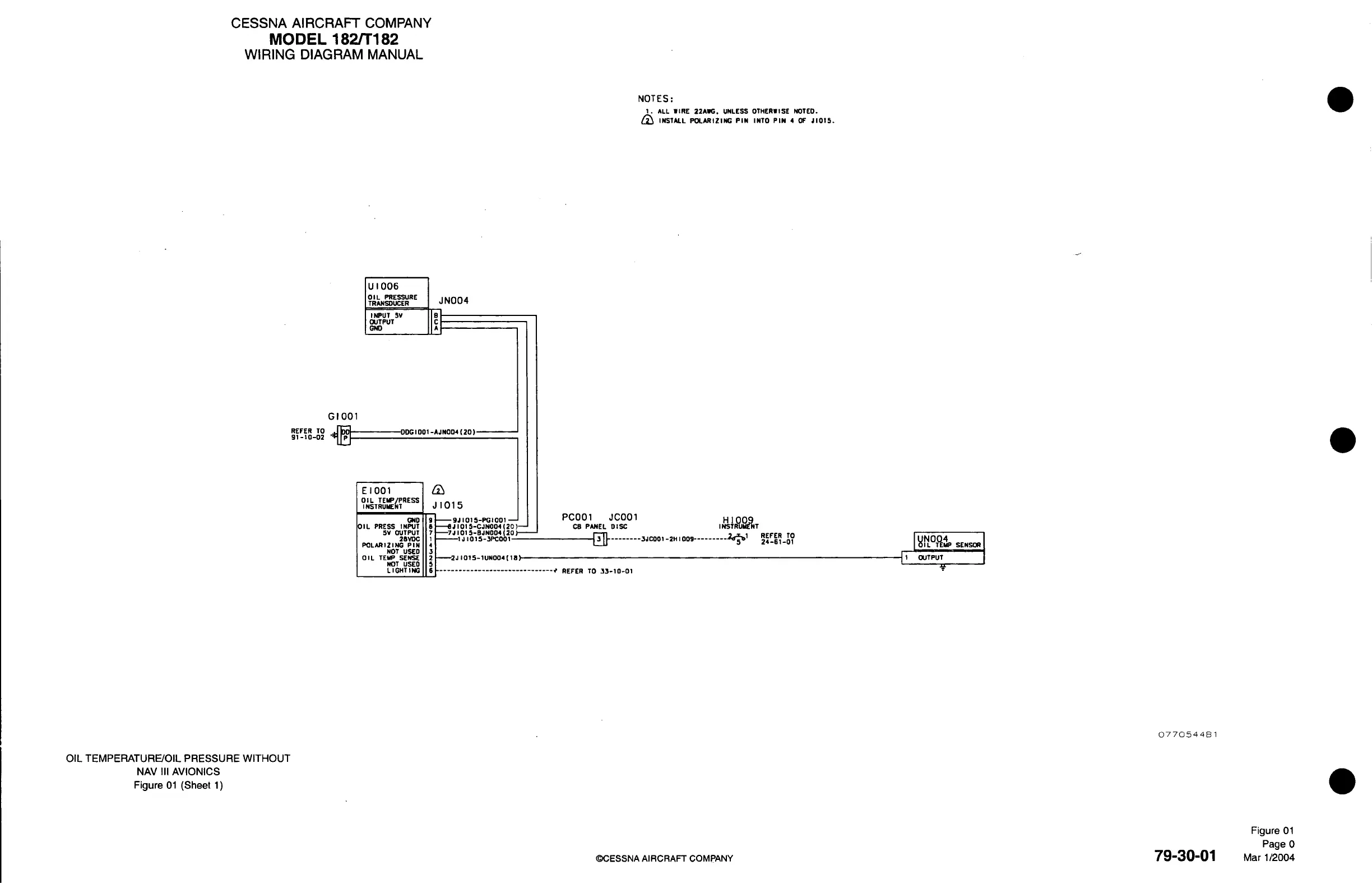

Textron Cessna 182S - FIGURE 01 - OIL TEMPERATURE;OIL PRESSURE WITHOUT NAV III AVIONICS

CESSNA
AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
1. ALL WIRE
22AWG. UNLESS OTHERWISE
NOTED.
INSTALL POLARIZING PIN INTO PIN 4 OF JI015.
U1006
OIL PRESSURE
TRANSDUCER
OIL TEMPERATURE/OIL PRESSURE WITHOUT
NAV
III AVIONICS
Figure
01 (Sheet
1)
©CESSNA AIRCRAFT COMPANY
0770544B1
79-30-01
Figure 01
Page 0
Mar 1/2004
