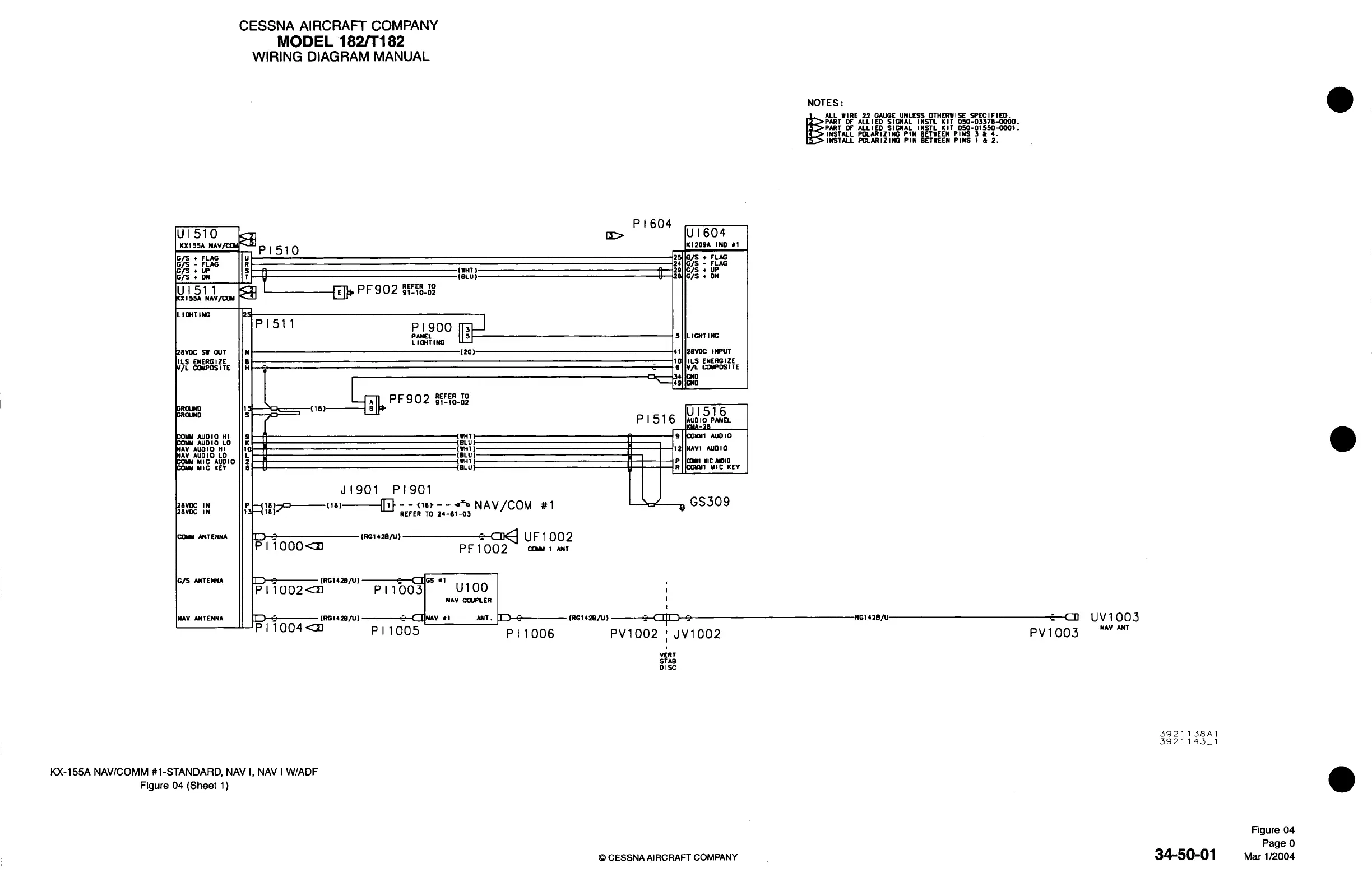

Textron Cessna 182S - FIGURE 04 - KX-155 A NAV;COMM #1-STANDARD, NAV I, NAV I W;ADF

CESSNA AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
ALL WIRE 22 GAUGE UNLESS OTHERWISE SPECIFIED.
PART OF ALLIED SIGNAL INSTL KIT 050-03378-0000.
PART OF ALLIED
SIGNAL INSTL KIT
050-01550-0001.
INSTALL POLARIZING
PIN BETWEEN
PINS 3 & 4.
INSTALL POLARIZING
PIN BETWEEN
PINS 1 & 2.
KX-155A
NAV/COMM #1-STANDARD,
NAV I, NAV I W/ADF
Figure 04 (Sheet 1)
© CESSNA AIRCRAFT COMPANY
34-50-01
Figure 04
Page 0
Mar 1/2004
