CESSNA AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
1. ALL WIRE 22 AWG. EXCEPT AS NOTED.
PART OF COIL
CORD (REF CONTROL
WHEEL ASSY).
WIRE SUPPLIED WITH LIGHT ASSY.
WIRE. PIN AND
RING TERMINAL SUPPLIED
WITH LIGHT ASSY.
REF STINGER ASSY FOR CONNECTOR AND CONTACT CALL OUT.
REF WINGTIP ASSY FOR CONNECTOR CALL OUT.
REF DES JI506 CHANGES TO JI514 WITH NAV PACKAGE. OR
ELECTRIC
TRIM
PROVISIONS.
WIRE AND
CONNECTOR
SUPPLIED
WITH LIGHT
ASSY.

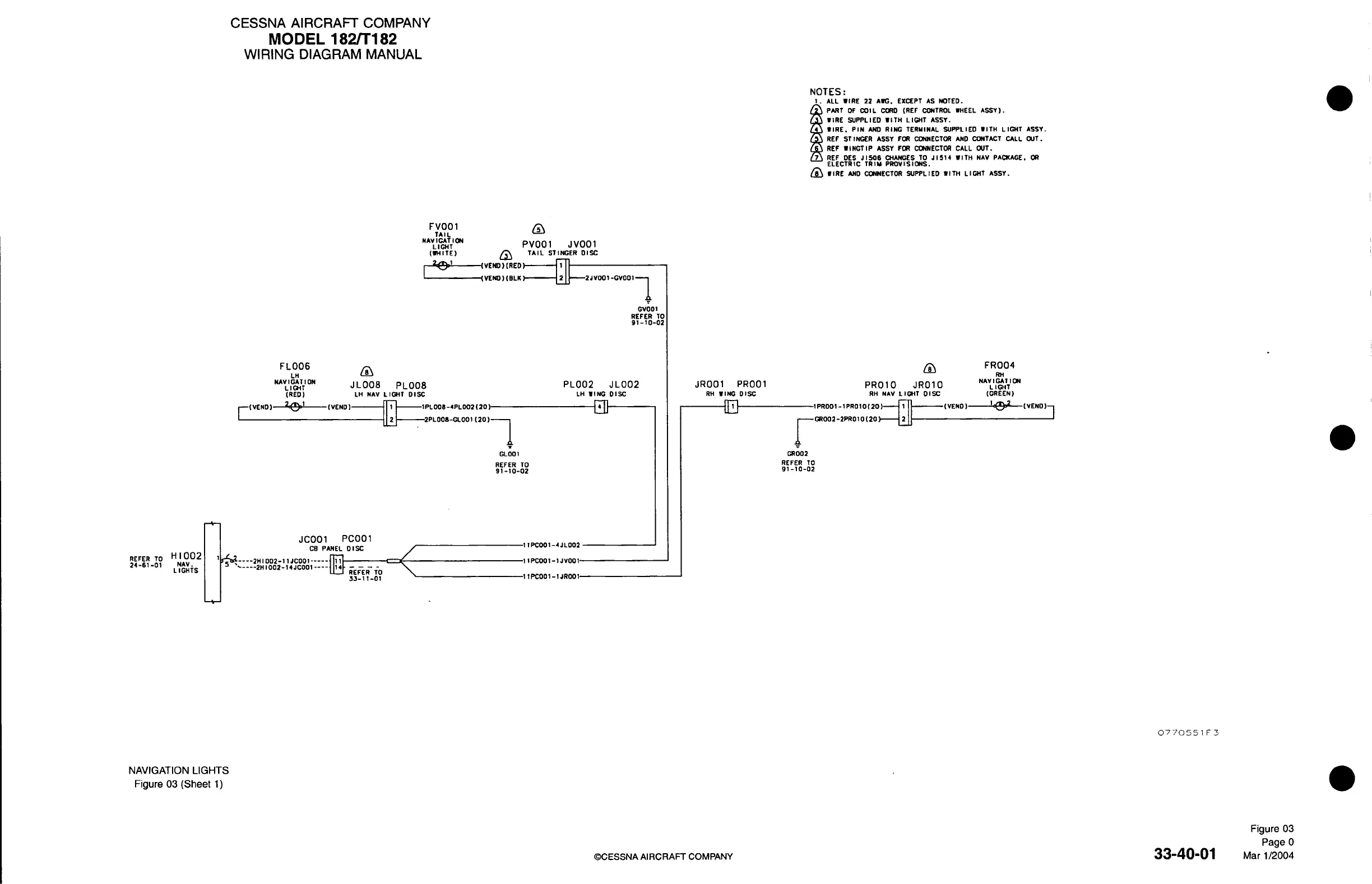

NAVIGATION LIGHTS
Figure 03 (Sheet 1)
©CESSNA
AIRCRAFT COMPANY
33-40-01
Figure 03
Page 0
Mar 1/2004
