Textron Cessna 182S User Manual

CESSNA
AIRCRAFT
COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
1. ALL WIRE 22GAUGE UNLESS OTHERWISE NOTED.
CONNECTOR PART OF ALLIEDSIGNAL INSTALLATION KIT
050-03613-0001
GROUND STUDS
ARE LOCATED ON THE
BACK OF THE
KMA-28 MOUNTING
RACK.
REFER
TO DETAIL A FOR PINS
ON ENTERTAINMENT JACK.

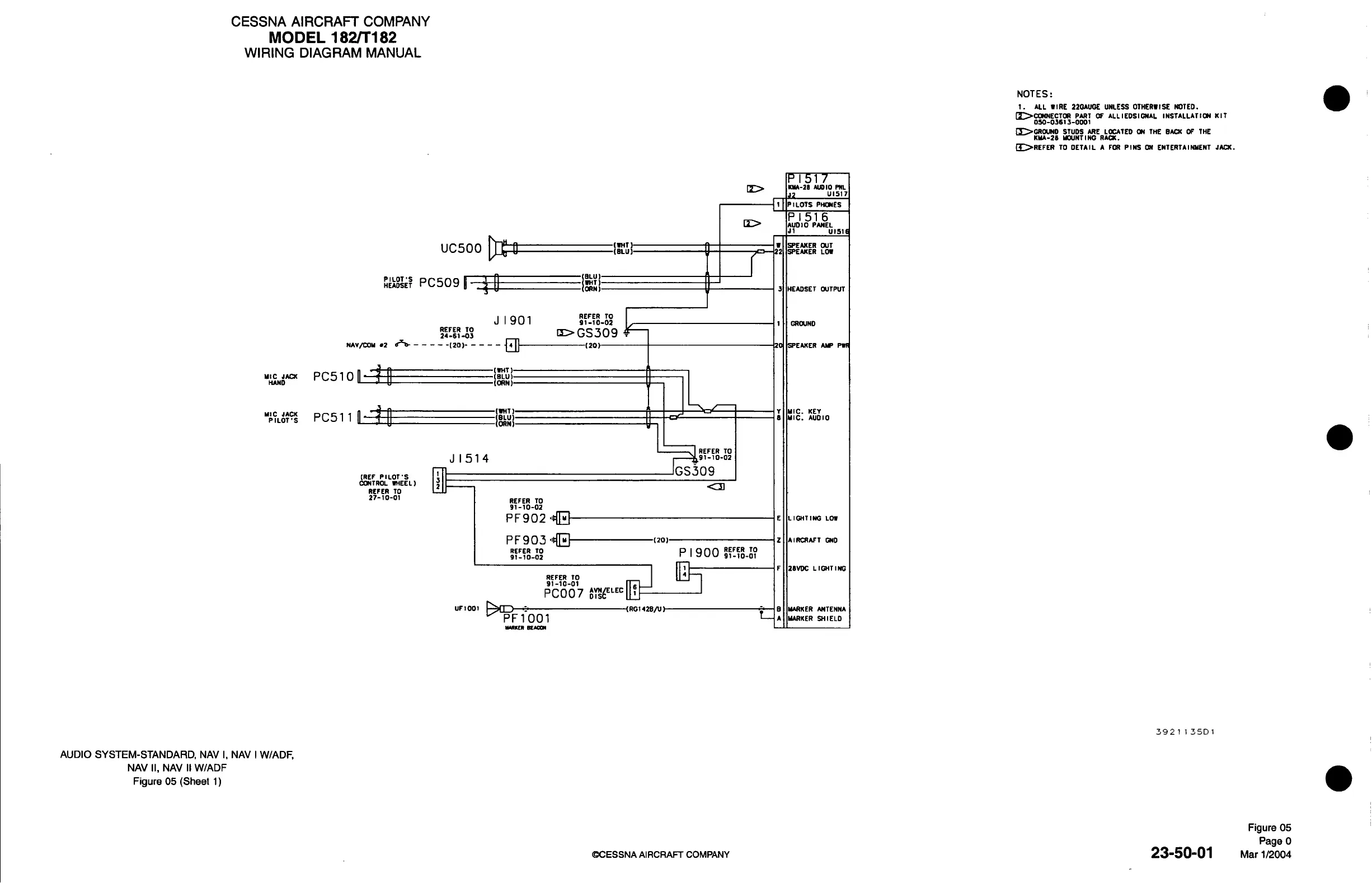

AUDIO SYSTEM-STANDARD,
NAV I,
NAV I W/ADF,
NAV II, NAV II W/ADF
Figure 05 (Sheet 1)
CCESSNA AIRCRAFT COMPANY
3921135D1
23-50-01
Figure 05
Page 0
Mar 1/2004
