Textron Cessna 182S User Manual

CESSNA
AIRCRAFT COMPANY
MODEL
182/T182
WIRING
DIAGRAM MANUAL
NOTES:
1.
ALL WIRE 22AWG.
UNLESS OTHERWISE
NOTED
J 1019
AMMETER/VACUUM
GAGE
E1012
LIGHTING 5
(REF BATTERY SYSTEM AND
GROUND
SERVICE
RECEPTACLE)
REFER TO 24-30-01
J 1013
FUEL OTY GAGE
E1011
LIGHTING 6
(REF
FUEL GAGE
AND
FUEL TRANSMITTER)
REFER TO 28-40-01
3J1004-6J1015
6J1019-611013
6J1015-6J1017
6JI013-J1004
J 1015
OIL TEMP/PRESS
GAGE
E 1001
6A LIGHTING
(REF OIL TEMP AND
OIL
PRESSURE)
REFER TO 79-30-01
J 1017
EGT/CHT GAGE
E1014
6
LIGHTING
(REF EGT/CHT)
REFER TO 77-20-01
E 1002
CLOCK
P1004 J1004
CLOCK DISC
DIM ---------
(VEND)(BLK) ---
--- T---
(REF CLOCK. OAT
AND HOURMETER)
REFER TO 31-20-01
6J1017-6J1033
(REF
DIMMING)
)
REFER TO 33-10-01
J 1033
MAN IFOLD PRESS/
FUEL FLOW GAGE
EI1015
,6
LIGHTING
(REF
MANIFOLD
PRESSURE/
FUEL FLOI)
REFER
TO
77-30-01
LIGHTING ENGINE INSTRUMENTS

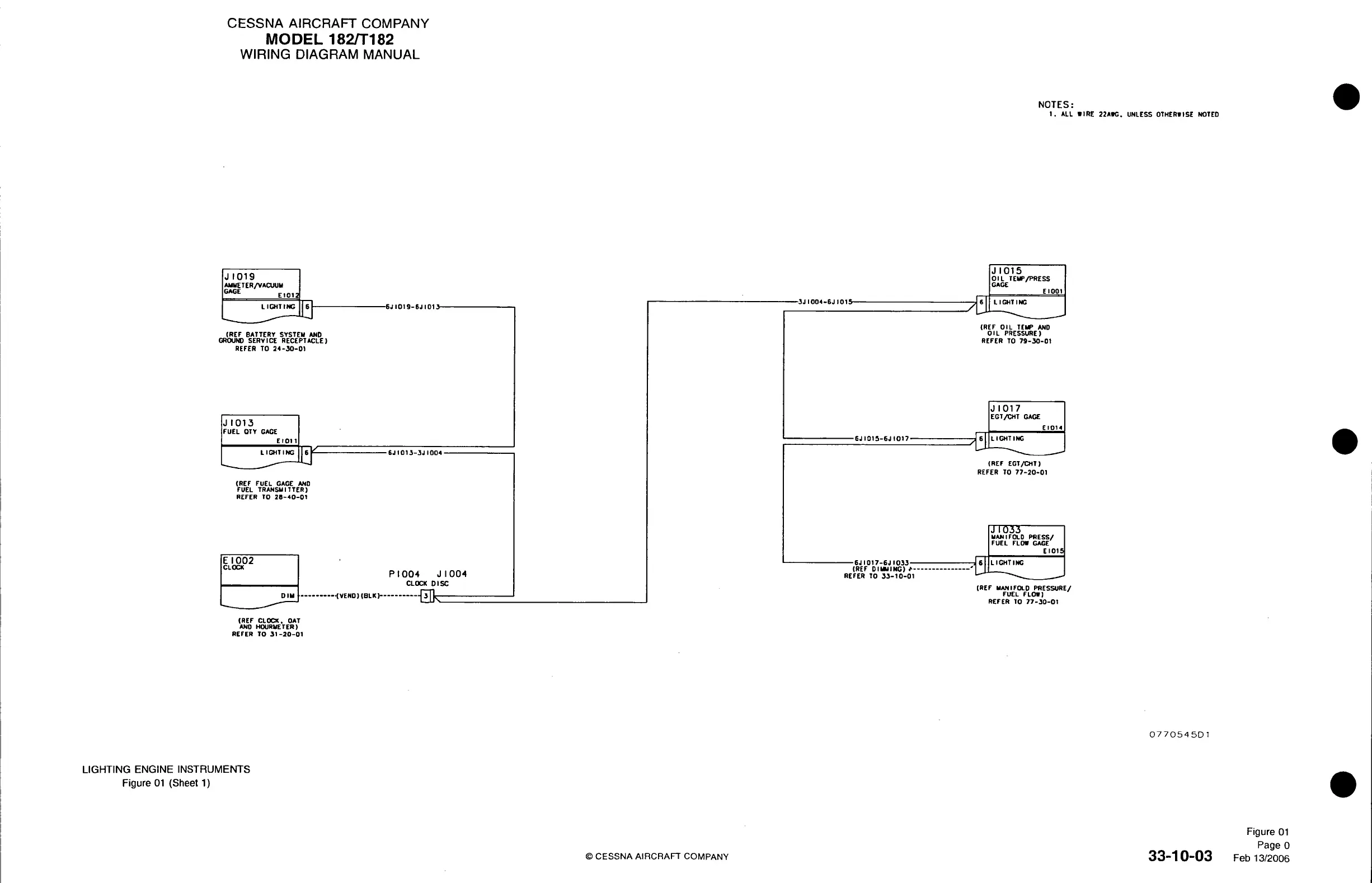

Figure 01 (Sheet 1)
© CESSNA AIRCRAFT
COMPANY
33-10-03
0770545D1
Figure 01
Page 0
Feb
13/2006
