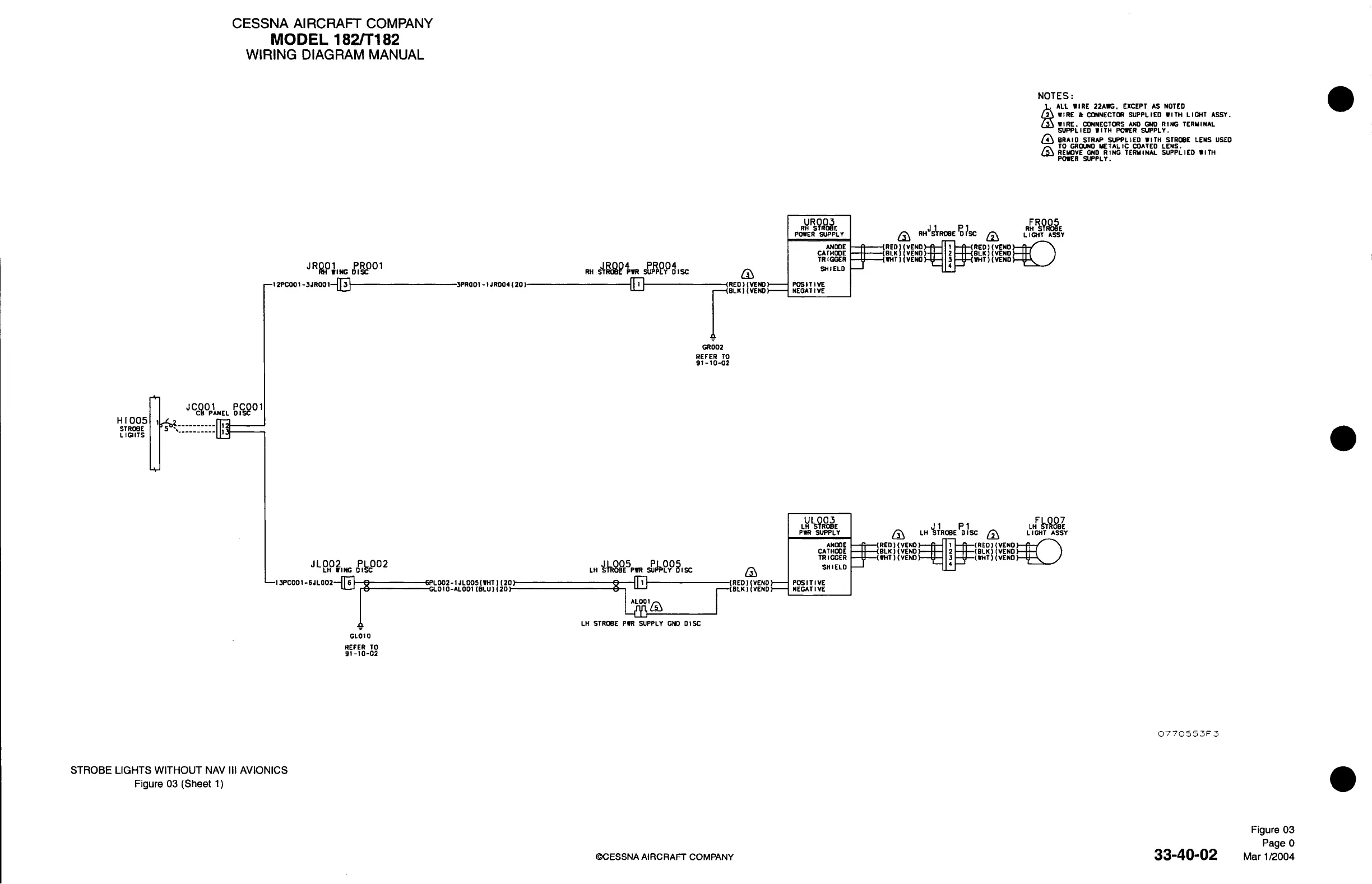

Textron Cessna 182S - FIGURE 03 - STROBE LIGHTS

CESSNA AIRCRAFT COMPANY
MODEL
182/T182
WIRING DIAGRAM MANUAL
NOTES:
1 ALL WIRE 22AWG. EXCEPT AS NOTED
WIRE
& CONNECTOR SUPPLIED
WITH LIGHT
ASSY.
WIRE. CONNECTORS
AND GND RING TERMINAL
SUPPLIED WITH POWER SUPPLY.
BRAID STRAP SUPPLIED WITH STROBE LENS USED
TO GROUND METALIC COATED LENS.
REMOVE GND RING TERMINAL SUPPLIED WITH
POWER SUPPLY.
33-40-02
0770553F3
Figure 03
Page 0
Mar 1/2004
