Textron Cessna 182S - FIGURE 01 - KX-155 A NAV;COMM #2-STANDARD

CESSNA AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
1. ALL WIRE 22 GAUGE UNLESS OTHERWISE SPECIFIED.

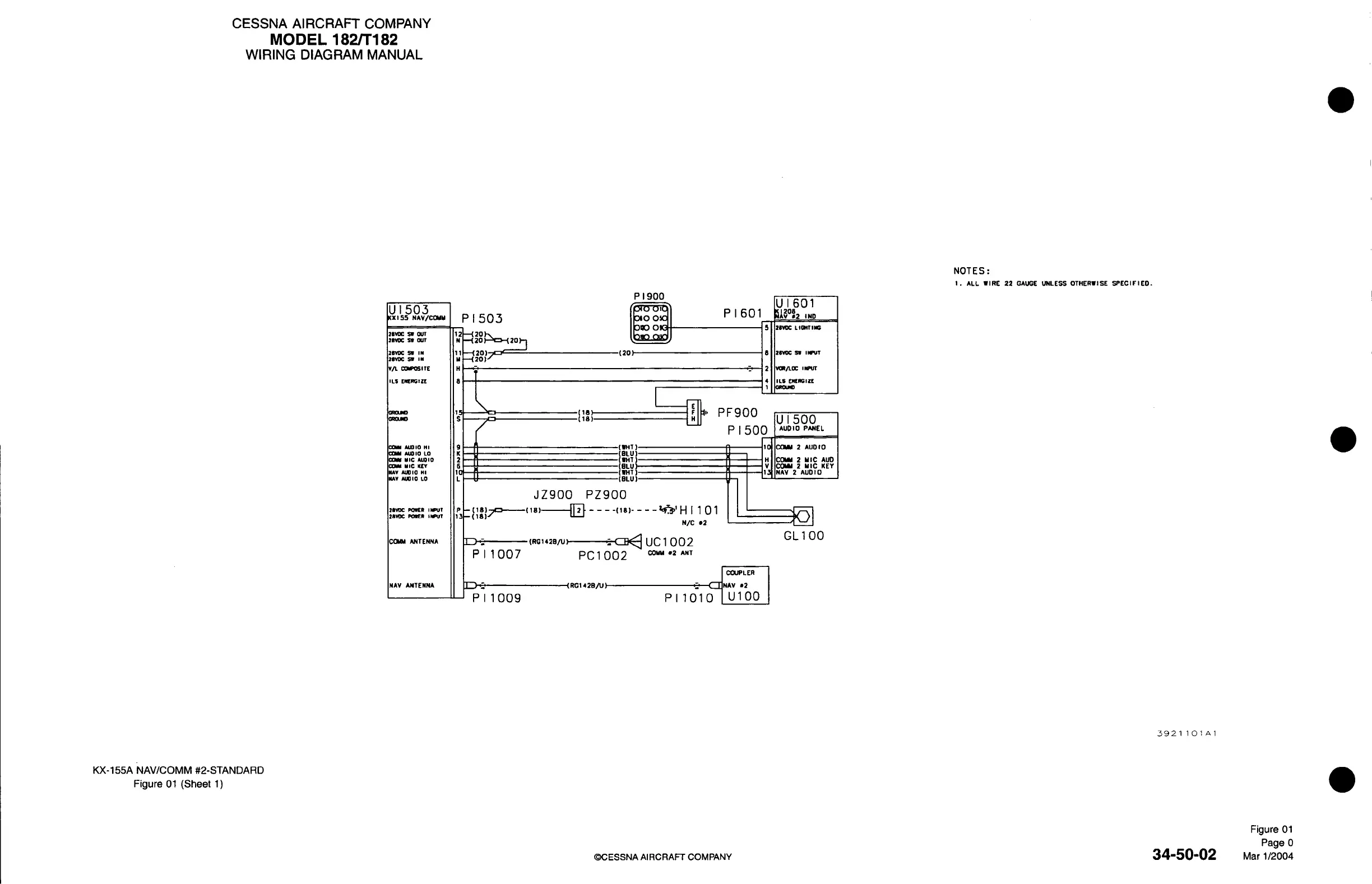

KX-155A NAV/COMM #2-STANDARD
Figure 01 (Sheet 1)
©CESSNA AIRCRAFT COMPANY 34-50-02
Figure 01
Page 0
Mar 1/2004
