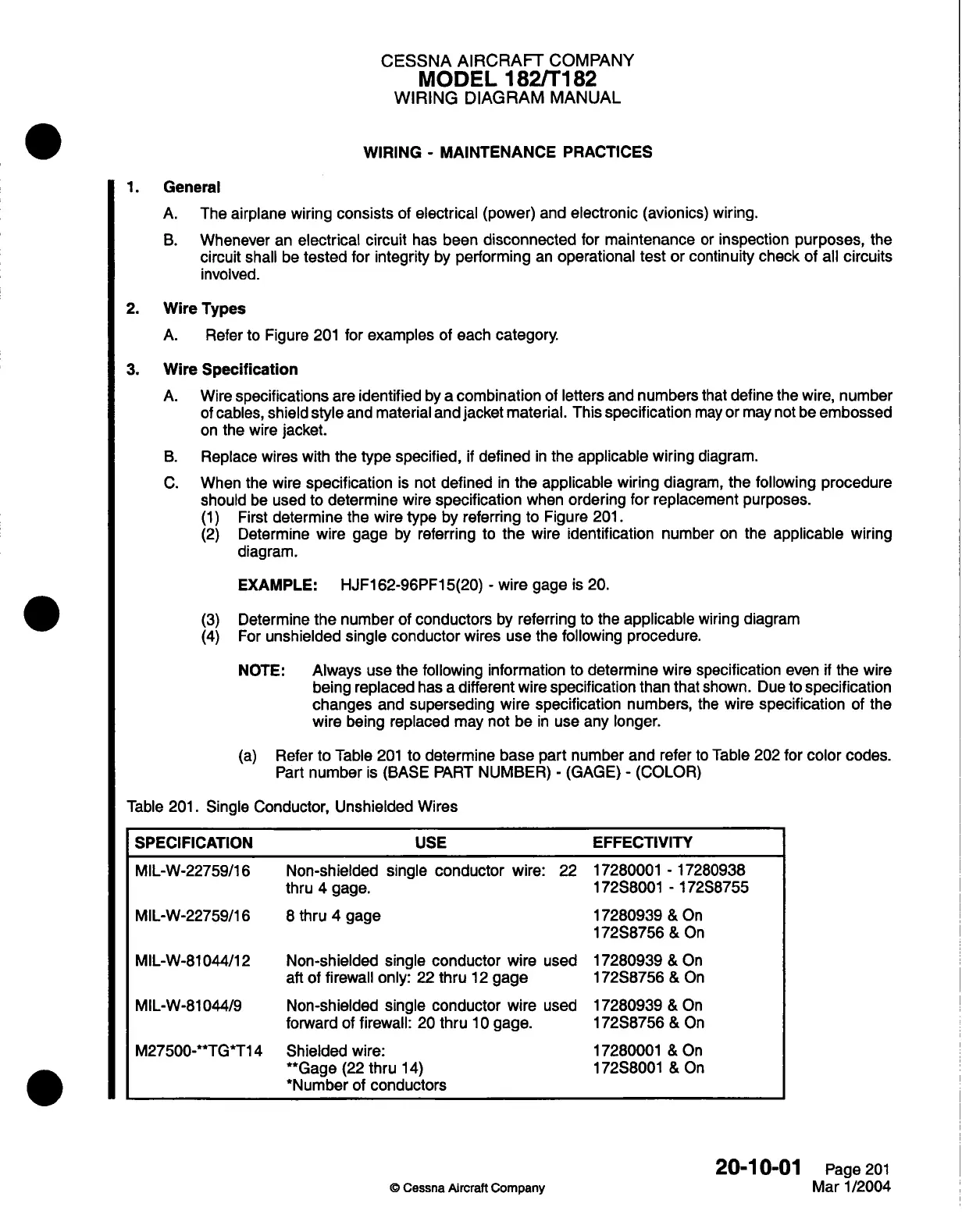

CESSNA AIRCRAFT
COMPANY
MODEL
182/T182
WIRING
DIAGRAM
MANUAL
WIRING
-
MAINTENANCE
PRACTICES
1.
General
A.
The
airplane
wiring
consists
of
electrical
(power) and
electronic
(avionics)
wiring.
B.
Whenever
an
electrical circuit
has
been
disconnected
for
maintenance
or
inspection
purposes,
the
circuit
shall
be
tested
for
integrity
by
performing
an
operational
test
or continuity
check
of all
circuits
involved.
2.
Wire
Types
A.
Refer to Figure
201
for examples
of
each
category.
3.
Wire
Specification
A.
Wire
specifications
are
identified
by
a
combination
of
letters
and numbers
that
define
the wire, number
of
cables,
shield
style
and
material
and
jacket
material.
This
specification
may
or
may
not
be
embossed
on
the
wire
jacket.
B.
Replace
wires
with
the
type specified,
if
defined
in
the
applicable wiring
diagram.
C.
When
the
wire
specification
is
not
defined
in
the applicable wiring
diagram,
the
following
procedure
should
be
used
to
determine
wire
specification
when
ordering
for
replacement purposes.
(1)
First
determine the
wire
type
by referring
to
Figure
201.
(2)
Determine
wire
gage
by
referring
to
the
wire
identification
number
on
the
applicable
wiring
diagram.
EXAMPLE:
HJF162-96PF15(20)
-
wire
gage
is
20.
(3)
(4)
Determine
the
number of
conductors
by
referring
to
the
applicable
wiring
diagram
For
unshielded
single
conductor
wires use
the
following
procedure.
NOTE:
Always use
the following
information to
determine
wire specification
even
if
the
wire
being replaced
has
a
different
wire
specification
than
that
shown.
Due
to
specification
changes
and
superseding
wire specification
numbers,
the
wire
specification
of
the
wire
being replaced
may
not be
in
use
any
longer.
(a)
Refer
to
Table
201
to
determine
base part
number
and
refer
to
Table
202
for
color
codes.
Part
number
is
(BASE
PART
NUMBER)
-
(GAGE)
-
(COLOR)
Table
201.
Single
Conductor,
Unshielded
Wires
SPECIFICATION
MIL-W-22759/16
USE
EFFECTIVITY
Non-shielded
single
conductor
wire: 22
17280001
-17280938
thru
4
gage.
172S8001
-
172S8755
MIL-W-22759/16
8
thru
4
gage
17280939
&
On
172S8756
&
On
MIL-W-81044/12
Non-shielded
single conductor
wire
used
17280939
&
On
aft
of
firewall
only:
22
thru
12
gage
172S8756
&
On
MIL-W-81044/9
M27500-**TG*T14
Non-shielded
single
conductor
wire
used
forward
of
firewall:
20
thru
10
gage.
Shielded wire:
**Gage
(22
thru
14)
*Number
of
conductors
17280939
&
On
172S8756
&
On
17280001
&
On
172S8001
&
On
20-10-01
©
Cessna Aircraft Company
Page
201
Mar
1/2004
