CESSNA
AIRCRAFT
COMPANY
MODEL
182/T182
WIRING
DIAGRAM
MANUAL
NOTES:
1.
ALL WIRE
22AWG.
EXCEPT
AS
NOTED
USE
THE
GRD
TERMINAL LOCATED
ON
THE
BACK/CENTER
OF
S1002
SWITCH.
GROUND STUD LOCATED
ON
MAGNETO
CASE
LABLED
AS
"GND".
RN001
LH
MAGNETO

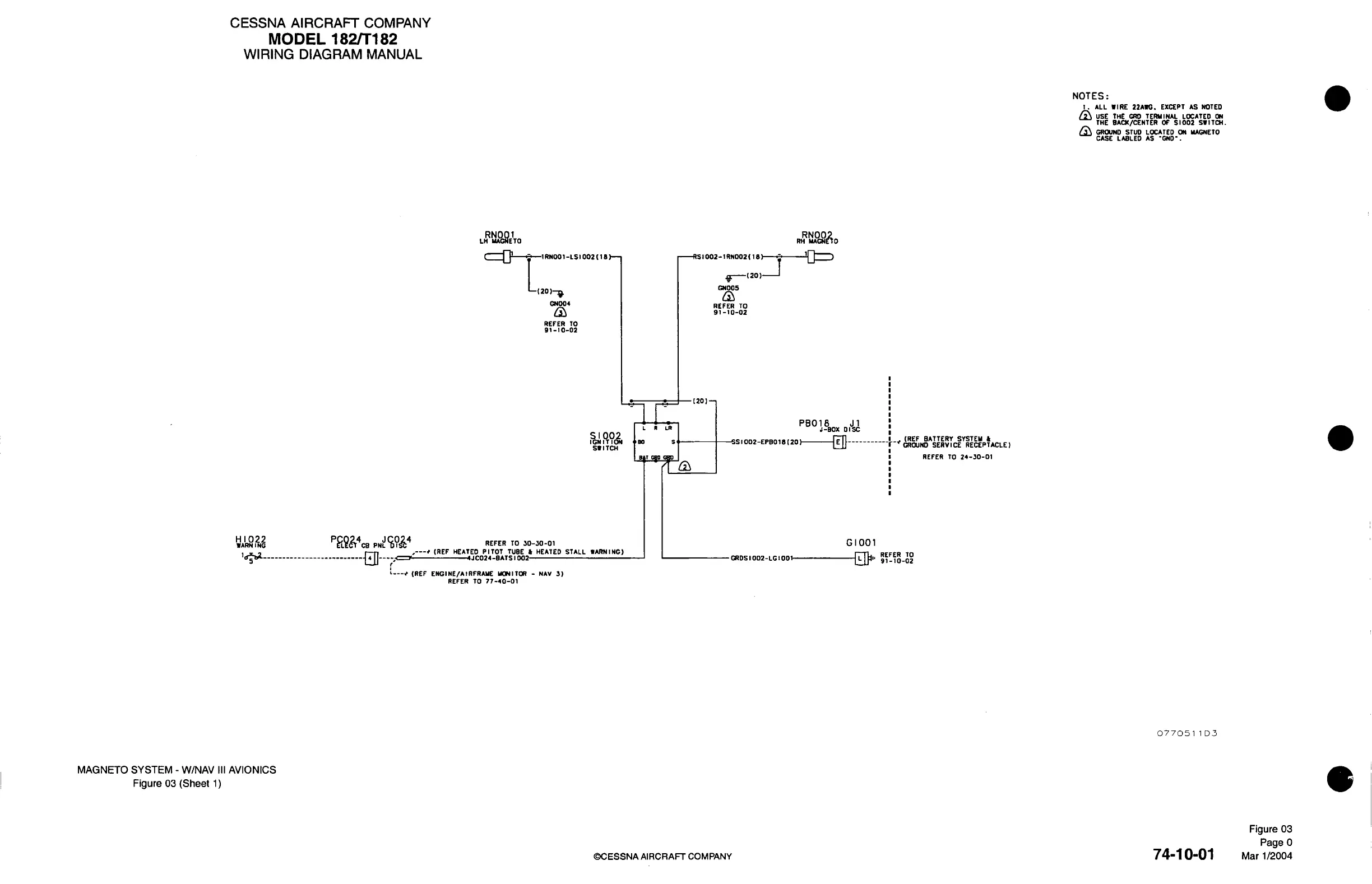

MAGNETO SYSTEM
-
W/NAV
III
AVIONICS
Figure
03
(Sheet
1)
©CESSNA
AIRCRAFT
COMPANY
S
1002
74-10-01
Figure 03
Page
0
Mar
1/2004
