CESSNA AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
1. ALL WIRE 22 AWG. EXCEPT AS NOTED.
PART OF COIL CORD (REF CONTROL WHEEL ASSY).
WIRE SUPPLIED
WITH LIGHT
ASSY.
WIRE. PIN AND RING TERMINAL SUPPLIED WITH LIGHT ASSY.
REF STINGER ASSY FOR CONNECTOR AND CONTACT CALL OUT.
REF WINGTIP ASSY FOR CONNECTOR CALL OUT.
REF DES JI506 CHANGES
TO JI514 WITH NAV
PACKAGE. OR
ELECTRIC
TRIM PROVISIONS.
WIRE AND CONNECTOR SUPPLIED WITH LIGHT ASSY.
FV001
TAIL
NAVIGATION
LIGHT

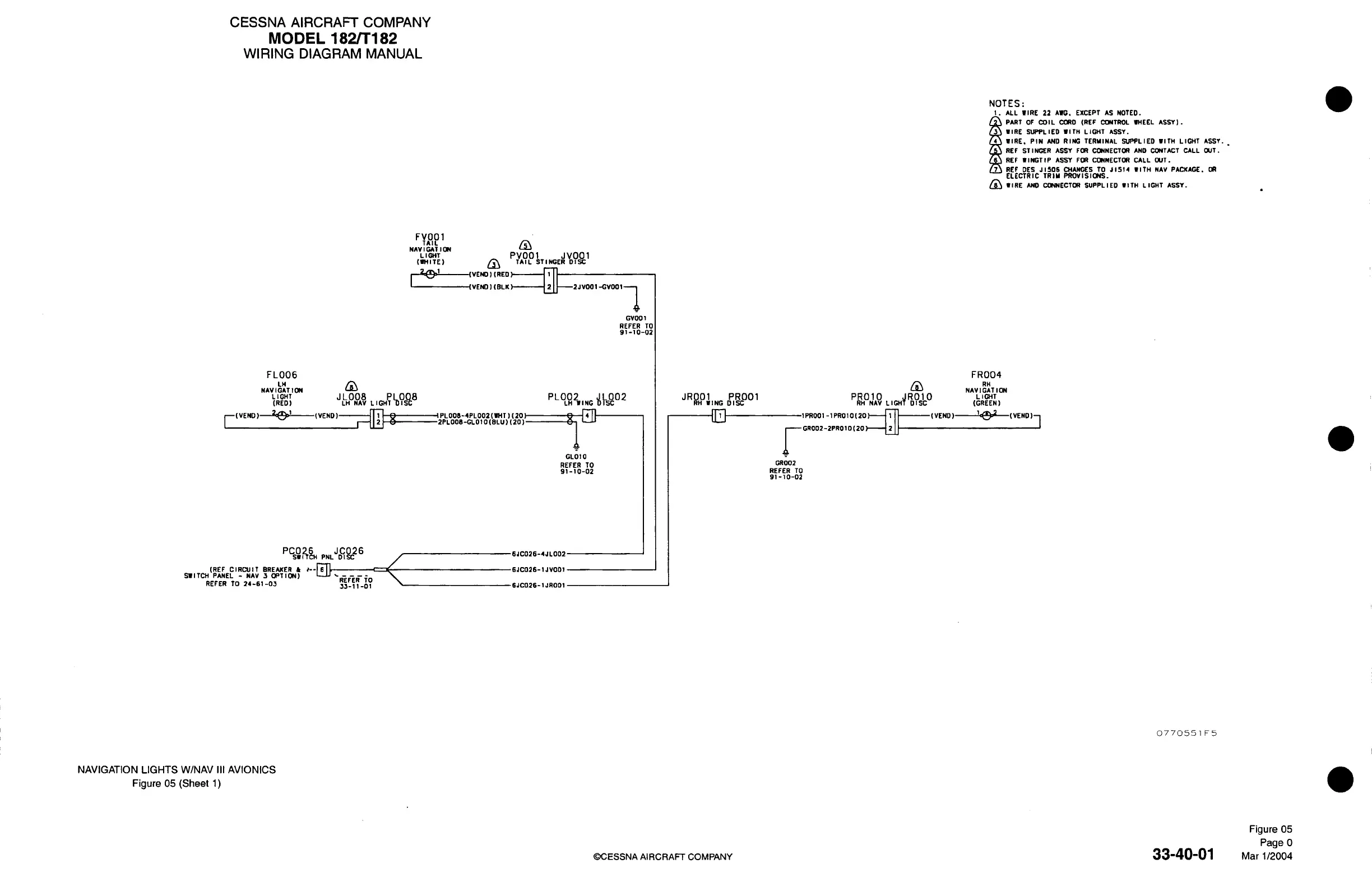

NAVIGATION LIGHTS W/NAV III AVIONICS
Figure 05 (Sheet 1)
©CESSNA AIRCRAFT COMPANY
Figure 05
Page 0
Mar 1/2004
