CESSNA AIRCRAFT COMPANY
MODEL
182/T182
WIRING
DIAGRAM
MANUAL
NOTES:
1. ALL WIRE 22AWG. EXCEPT AS NOTED
NEVER USED.
PART OF VENDOR ACTUATOR ASSY.
COVER
RESISTOR AND WIRE TO
JR006 WITH HEAT SHRINK
TUBING.
LOCATE RESISTOR
WITHIN 3 INCHES OF JR007
UNDER AND SUPPORTED BY ID TAG.

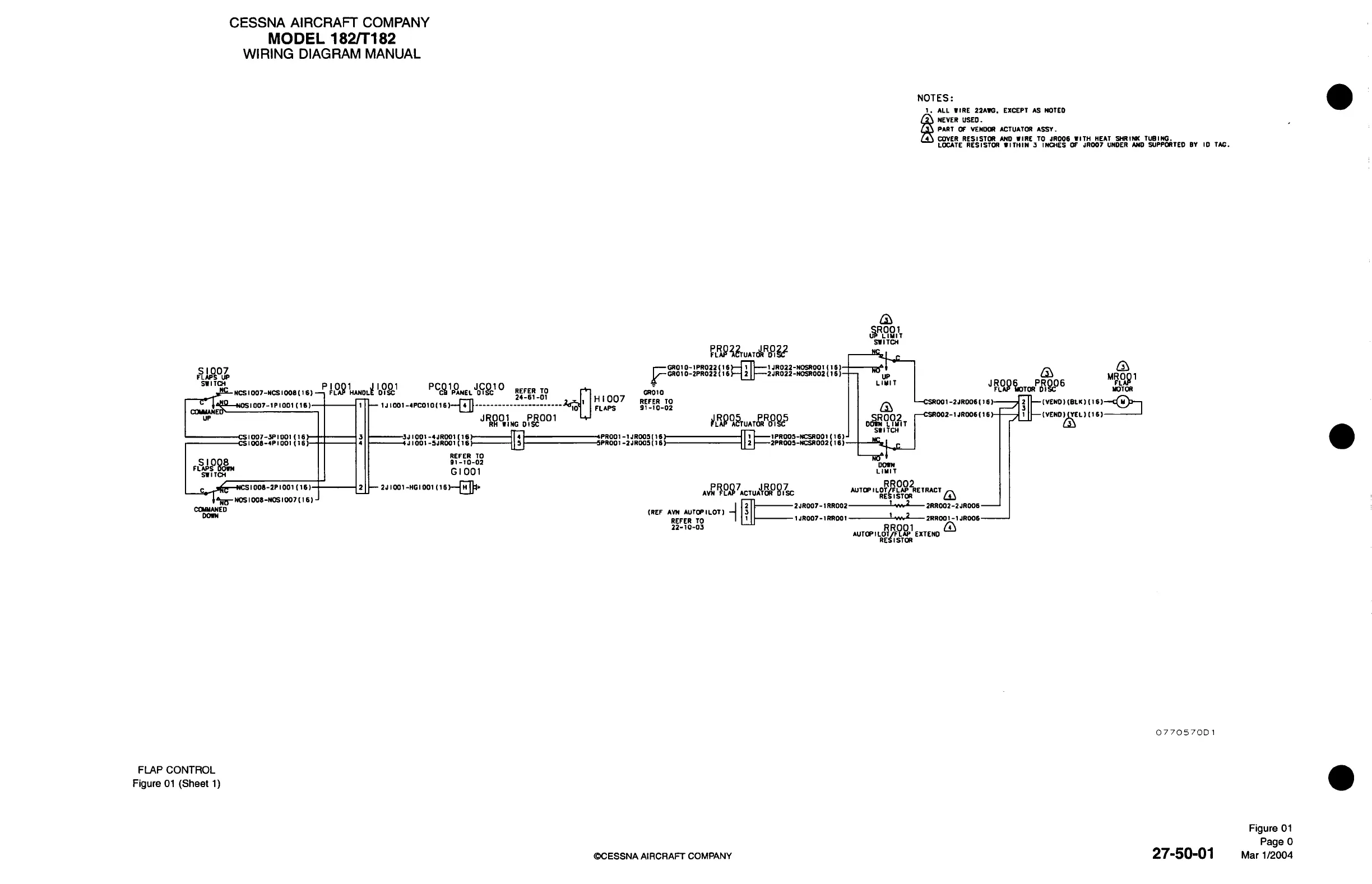

FLAP CONTROL
Figure 01 (Sheet 1)
©CESSNA
AIRCRAFT
COMPANY
27-50-01
Figure 01
Page 0
Mar 1/2004
