CESSNA
AIRCRAFT
COMPANY
MODEL 182/T182
WIRING
DIAGRAM
MANUAL
NOTES:
ALL
WIRE
22AWG
UNLESS
OTHERWISE
NOTED.
WIRE BRUSH
BLOCKS WITH OUTER
RING BRUSH TO TERMINAL
I
AND INNER
RING BRUSH TO TERMINAL
G. INSTALL PROTECTIVE
RUBBER BOOT OVER TERMINAL I.
USE
HIGH CURRENT CONTACTS (S3373-2)
IN PINS 1PC013 AND
5PC013.
USE
WIRE WITH
THICK WALL
INSULATION
(M81044/9-14-9).

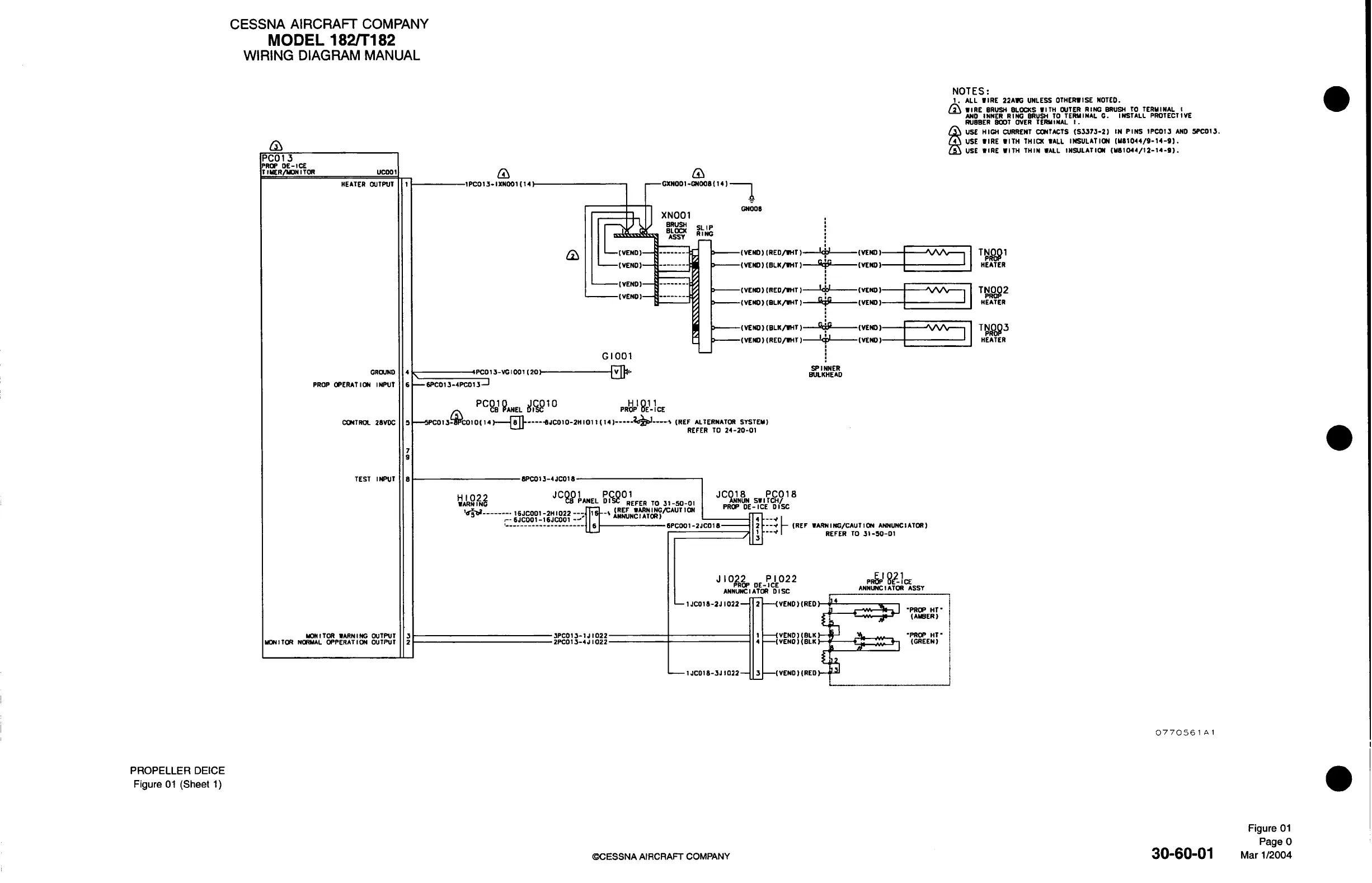

PROPELLER
DEICE
Figure
01
(Sheet
1)
Figure 01
Page 0
©CESSNA
AIRCRAFT
COMPANY
30-60-01
Mar
1/2004
