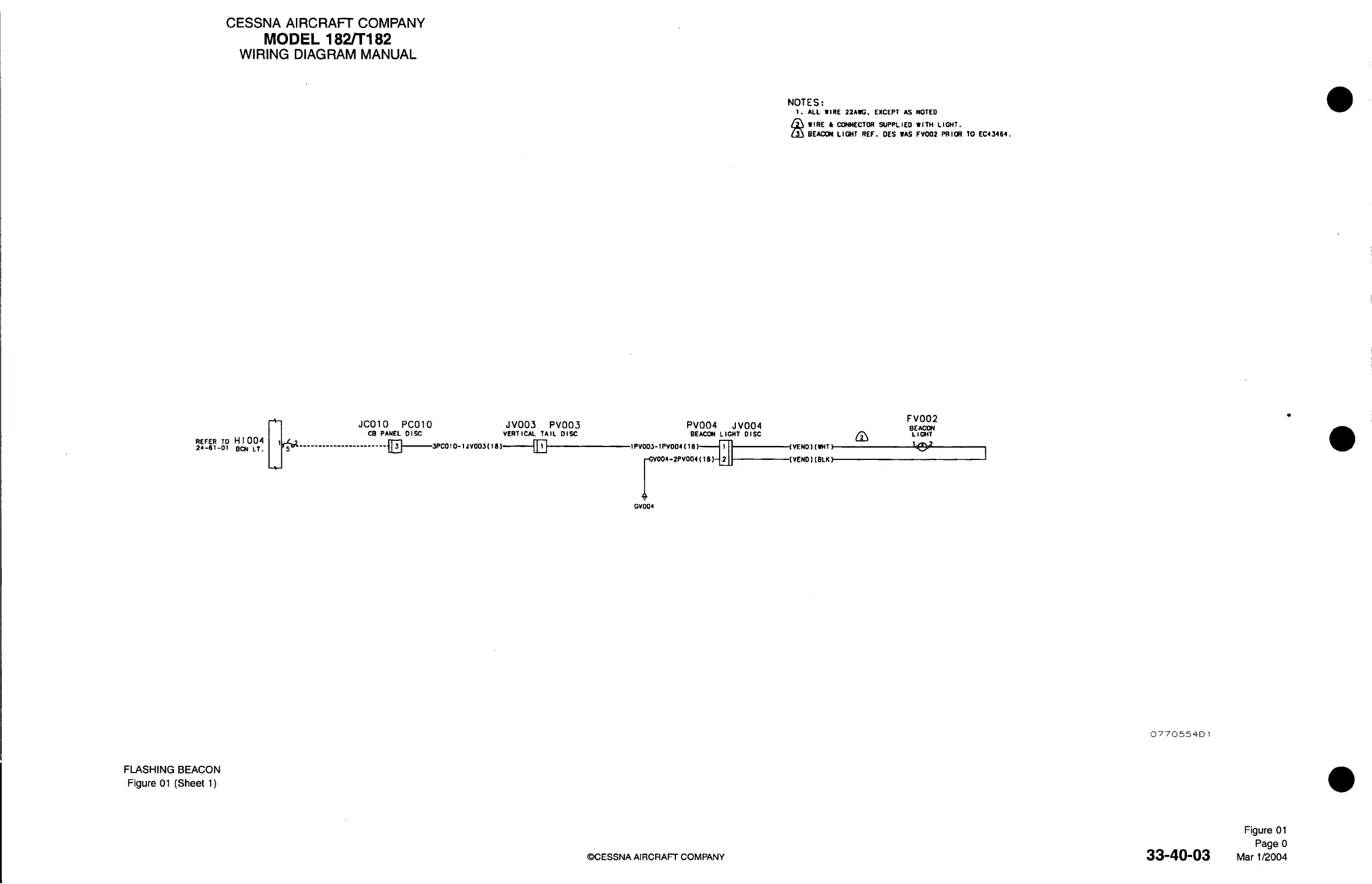

Textron Cessna 182S - FIGURE 01 - FLASHING BEACON

CESSNA
AIRCRAFT
COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
NOTES:
1. ALL WIRE 22AWG. EXCEPT AS NOTED
WIRE & CONNECTOR SUPPLIED WITH LIGHT.
BEACON LIGHT REF. DES WAS FV002 PRIOR TO EC43464.
REFER TO HI 004
24-61-01 BCN LT.
JC010 PC010
JV003
PV003
CB PANEL
DISC
VERTICAL TAIL DISC
PV004
JV004
BEACON LIGHT DISC
0770554D1
Figure 01
Page 0
Mar 1/2004 33-40-03
