CESSNA
AIRCRAFT
COMPANY
MODEL
182/T182
WIRING
DIAGRAM
MANUAL
NOTES:
THE
SWITCH/INDICATOR IS SUPPLIED
WITH
THE
ELT SYSTEM.
IT
COMES
WITH
A
1/4
WATT
RESISTOR
MOUNTED
ON
IT.
REFER
TO THE
SKETCH
BELOW
FOR
PIN
NUMBERS:
THE
ANTENNA
AND
CABLE
ARE
SUPPLIED
WITH
THE
ELT
TRANSMITTER.
3.
ALL
WIRE
22AWG
UNLESS
OTHERWISE
NOTED.
PC007

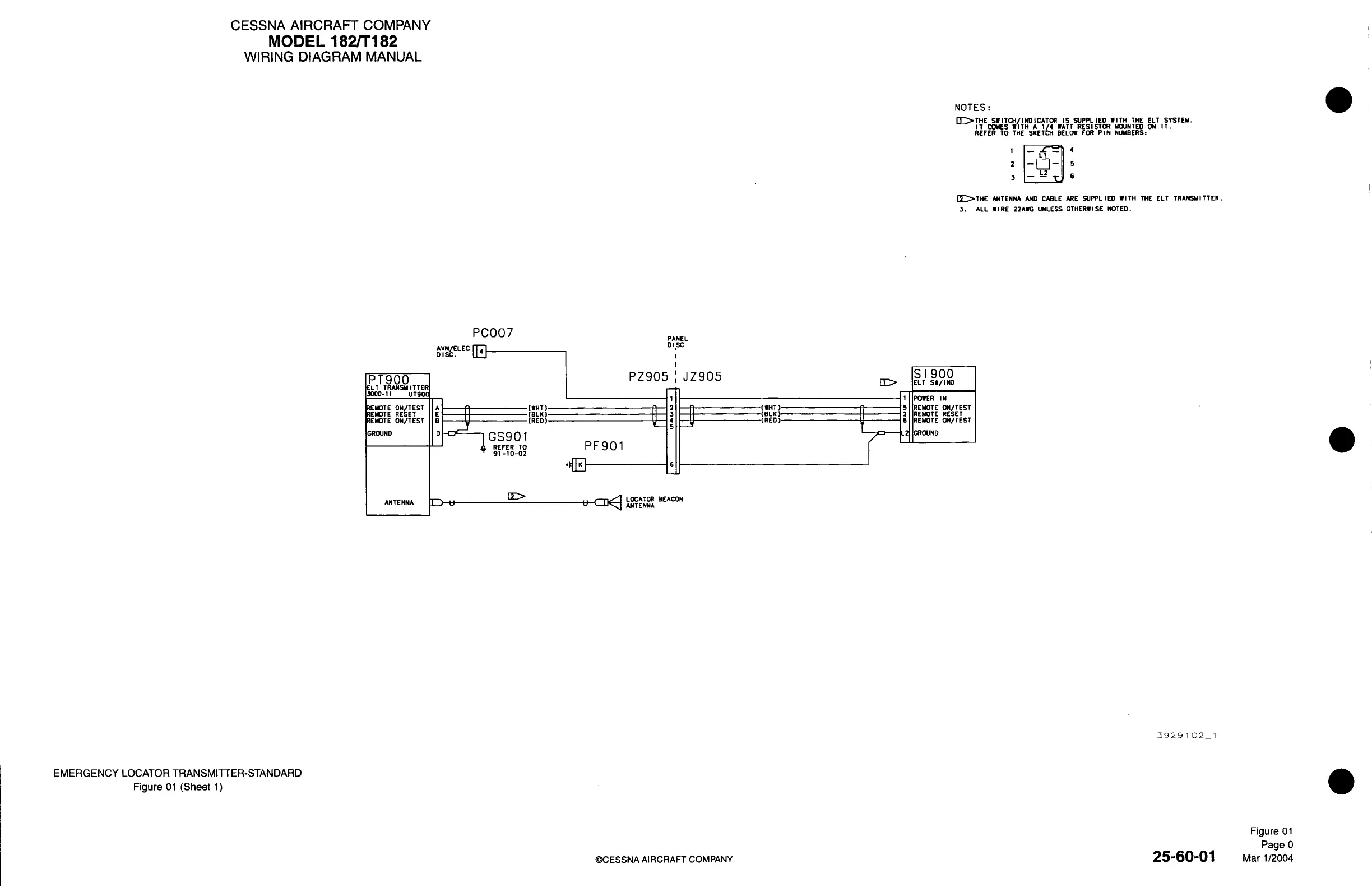

EMERGENCY
LOCATOR
TRANSMITTER-STANDARD
Figure
01
(Sheet
1)
©CESSNA
AIRCRAFT
COMPANY
25-60-01
39291021
Figure
01
Page
0
Mar
1/2004
