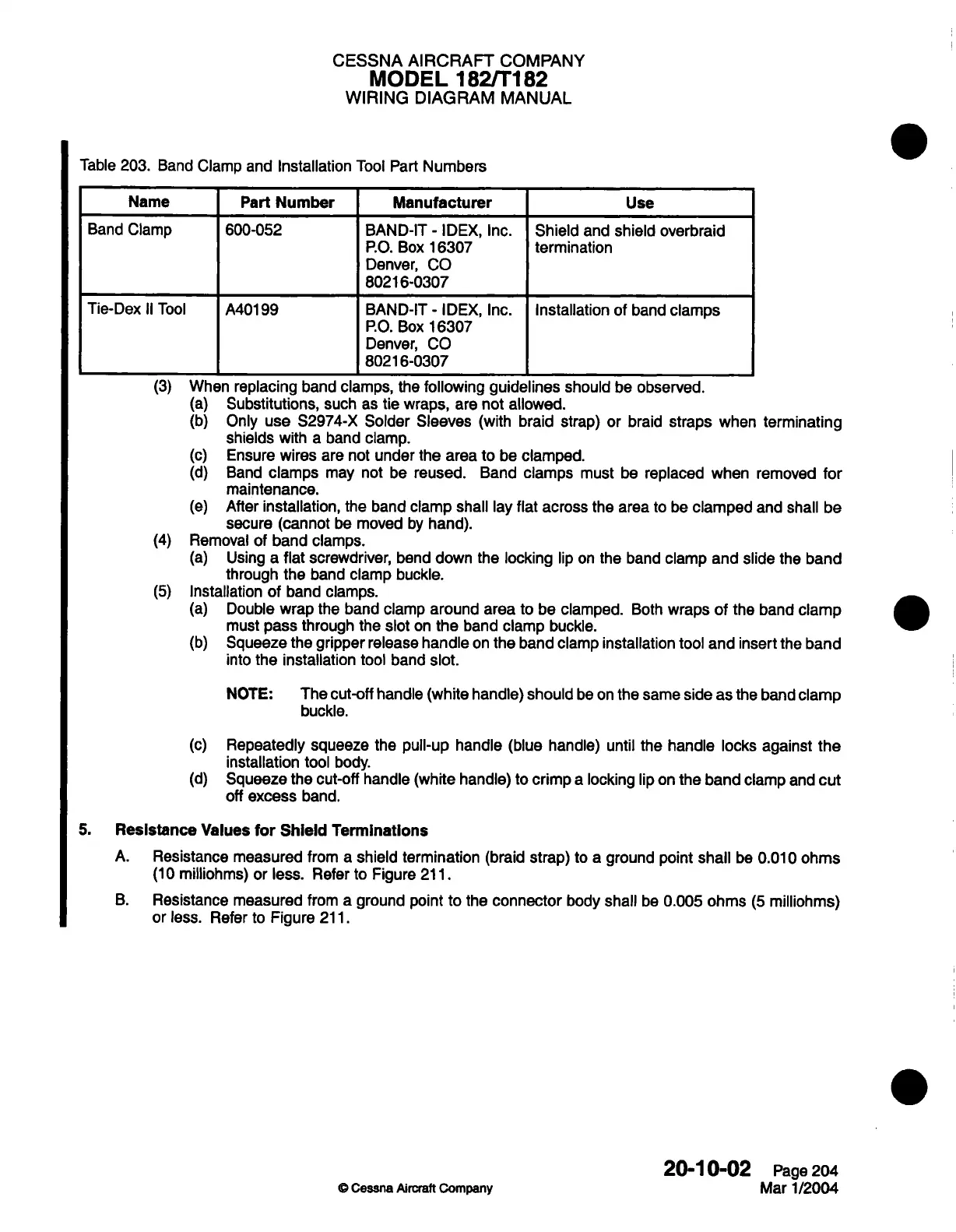

CESSNA
AIRCRAFT
COMPANY
MODEL
182/T182
WIRING
DIAGRAM
MANUAL
Table
203.
Band
Clamp
and
Installation
Tool
Part
Numbers
Name
Band
Clamp
Tie-Dex
II
Tool
Part
Number
600-052
A40199
Manufacturer
BAND-IT
-
IDEX,
Inc.
P.O.
Box
16307
Denver,
CO
80216-0307
BAND-IT-
IDEX,
Inc.
P.O.
Box
16307
Denver,
CO
80216-0307
Use
Shield
and
shield
overbraid
termination
Installation
of
band
clamps
(3)
When
replacing
band
clamps,
the
following
guidelines
should
be
observed.
(a)
Substitutions,
such
as
tie
wraps,
are
not allowed.
(b)
Only
use
S2974-X
Solder
Sleeves
(with
braid strap)
or
braid
straps
when
terminating
shields
with
a
band
clamp.
(c)
Ensure
wires
are
not
under
the
area
to
be
clamped.
(d)
Band
clamps
may
not be
reused.
Band
clamps
must
be
replaced
when
removed
for
maintenance.
(e)
After
installation, the
band
clamp shall
lay
flat
across
the
area
to be
clamped
and
shall
be
secure (cannot
be
moved
by
hand).
(4)
Removal
of
band
clamps.
(a)
Using
a
flat
screwdriver,
bend
down
the locking
lip on
the
band
clamp
and
slide
the
band
through
the
band
clamp buckle.
(5)
Installation
of
band
clamps.
(a)
Double
wrap
the
band
clamp
around
area
to
be
clamped.
Both
wraps
of
the
band
clamp
must
pass
through
the
slot
on
the
band
clamp
buckle.
(b)
Squeeze
the
gripper
release
handle
on
the
band clamp
installation
tool
and insert
the
band
into
the installation
tool
band
slot.
NOTE:
The
cut-off
handle
(white
handle)
should
be on
the
same
side
as
the band
clamp
buckle.
(c)
Repeatedly
squeeze
the
pull-up handle
(blue
handle) until
the
handle
locks
against
the
installation
tool
body.
(d)
Squeeze
the
cut-off
handle
(white
handle) to
crimp
a
locking
lip
on
the band
clamp
and
cut
off
excess
band.
5.
Resistance
Values
for
Shield
Terminations
A.
Resistance measured
from
a
shield
termination
(braid
strap)
to a
ground
point
shall
be
0.010
ohms
(10
milliohms)
or
less.
Refer
to
Figure
211.
B.
Resistance
measured
from
a
ground
point
to
the
connector
body
shall
be
0.005
ohms
(5
milliohms)
or
less.
Refer
to
Figure
211.
20-10-02
©
Cessna
Aircraft
Company
Page
204
Mar
1/2004
