CESSNA AIRCRAFT
COMPANY
MODEL
182/T182
WIRING
DIAGRAM
MANUAL
A25457
TYPE H
· .AArv
TYPE J
Hnnn
LOCK
TAB
(NOTE)
D-9-000-0-V3
D-15-000-0-V3
D-25-000-0-V3
D-37-000-0-V3
D-50-000-0-V3
QUICK RELEASE
LOCKING
DEVICE
WITH HOOD
(NOTE)
D-9-000 * VL
D-15-000 * VL
D-25-000
*
VL
D-37-000 * VL
D-50-000
* VL
* ADD HOOD STYLE
P-. \/IIrt
M24308
Series
Connectors

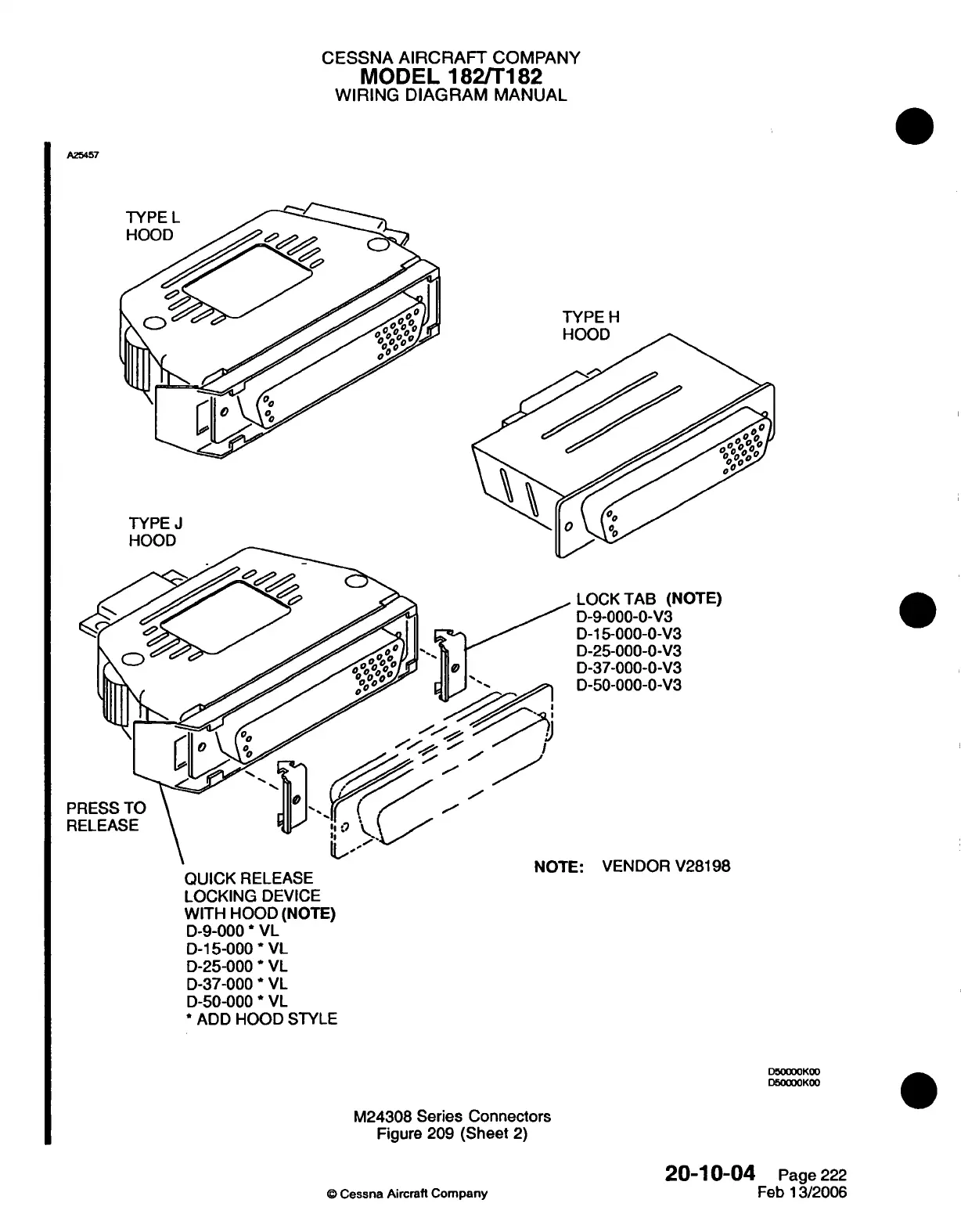

Figure 209 (Sheet 2)
Cessna
Aircraft
Company
20-10-04
Page
222
Feb 13/2006
D500OOK00
