Textron Cessna 182S User Manual

NOTES:
. ALL WIRES 22
AWG UNLESS OTHERWISE
NOTED.
GROUND
SHIELDS TO THE BACKSHELL
OF THE CONNECTOR
USING
THE GARMIN SUPPLIED
GROUNDING WIRES FASTENED
TO THE
CONNECTOR.
SHIELD
WIRES SHOULD
BE NO LONGER
THAN
3".
USE 392404 CABLE.
CONFIGURATION
MODULE IS
MOUNTED INSIDE OF
PI311.
5. THE FOLLOWING SPECS ARE PART OF THIS DRAWING:
CSAM012 SHIELDED
CABLE INSTALLATION.
CES2718
WIRE TERMINATIONS.
16GA WIRE IS PART OF
GARMIN TERMINATED WIRE
GROUP.
EXTEND WIRE LENGTH AS REQUIRED.
VENDOR
SUPPLIED WIRES.
©CESSNA
AIRCRAFT
COMPANY

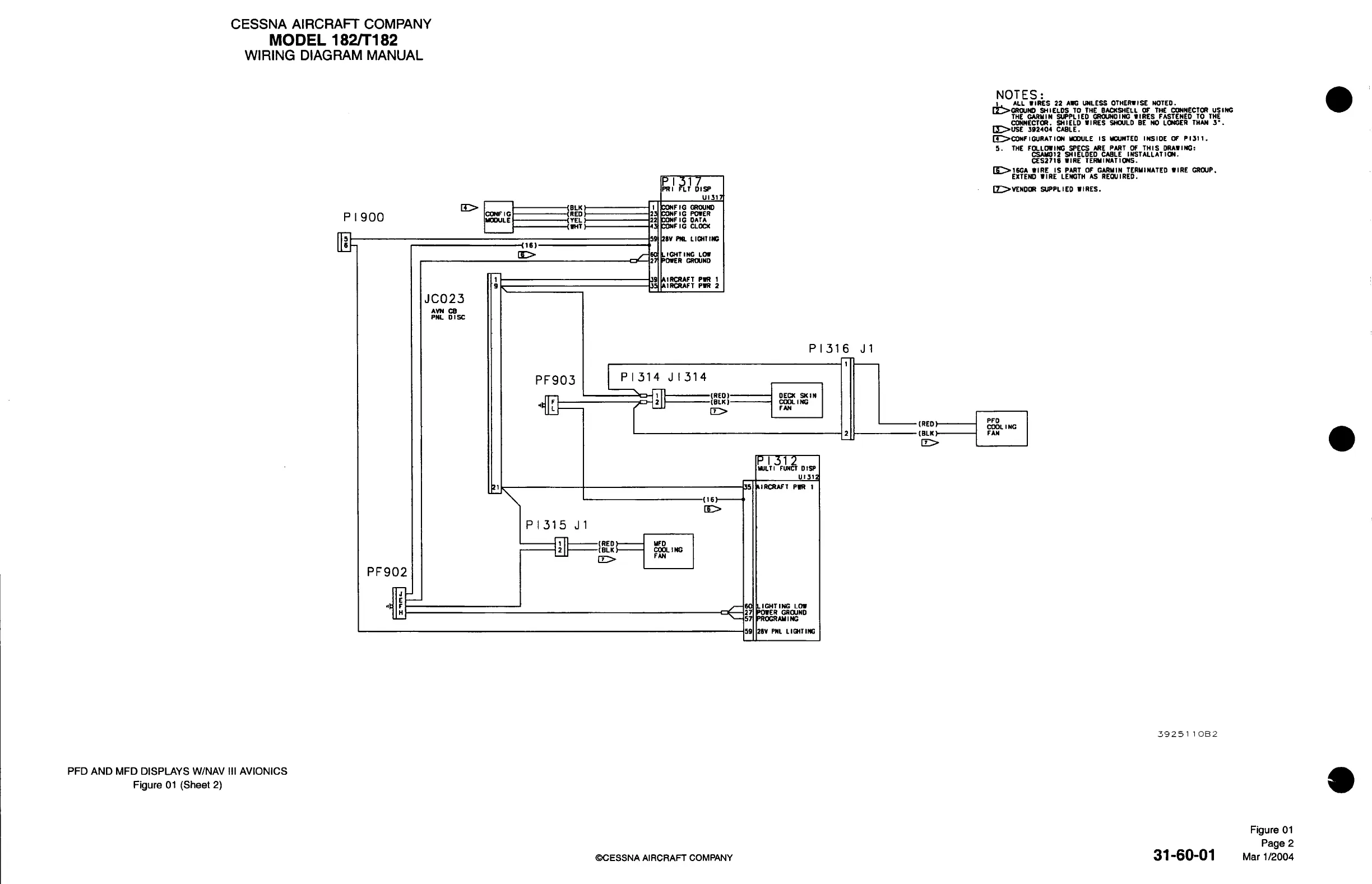

Figure 01
Page 2
Mar
1/2004
CESSNA AIRCRAFT COMPANY
MODEL 182/T182
WIRING DIAGRAM MANUAL
