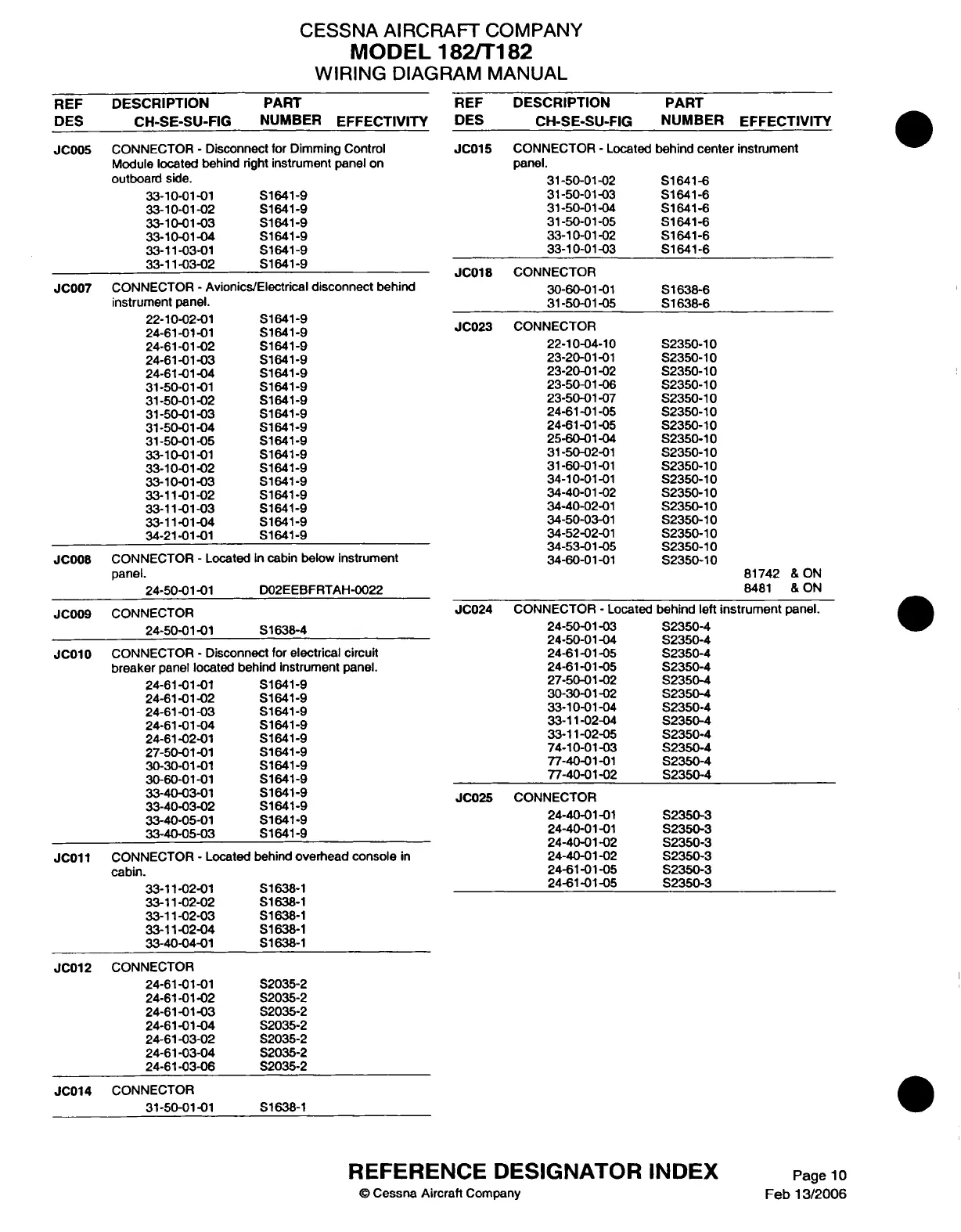

MODEL 182/T182
WIRING
DIAGRAM
MANUAL
PART
REF
DESCRIPTION
NUMBER EFFECTIVITY DES CH-SE-SU-FIG
PART
NUMBER EFFECTIVITY
JC005
CONNECTOR
- Disconnect
for
Dimming
Control
Module
located
behind
right instrument
panel
on
outboard
side.
33-10-01-01
33-10-01-02
33-10-01-03
33-10-01-04
33-11-03-01
33-11-03-02
S1641-9
S1641-9
S1641-9
S1641-9
S1641-9
S1641-9
JC007
CONNECTOR
- Avionics/Electrical
disconnect
behind
instrument
panel.
22-10-02-01
S1641-9
24-61-01-01
S1641-9
24-61-01-02
S1641-9
24-61-01-03
S1641-9
24-61-01-04
S1641-9
31-50-01-01
S1641-9
31-50-01-02
S1641-9
31-50-01-03
S1641-9
31-50-01-04
S1641-9
31-50-01-05
S1641-9
33-10-01-01
S1641-9
33-10-01-02
S1641-9
33-10-01-03
S1641-9
33-11-01-02
S1641-9
33-11-01-03
S1641-9
33-11-01-04 S1641-9
34-21-01-01
S1641-9
JC008
CONNECTOR
- Located
in cabin
below
Instrument
panel.
24-50-01-01
JC009
CONNECTOR
24-50-01-01
D02EEBFRTAH-0022
S1638-4
JC010
CONNECTOR
- Disconnect
for electrical
circuit
breaker
panel located
behind
Instrument
panel.
24-61-01-01
S1641-9
24-61-01-02
S1641-9
24-61-01-03
S1641-9
24-61-01-04
S1641-9
24-61-02-01
S1641-9
27-50-01-01
S1641-9
30-30-01-01
S1641-9
30-60-01-01
S1641-9
33-40-03-01
S1641-9
33-40-03-02
S1641-9
33-40-05-01
S1641-9
33-40-05-03
S1641-9
JC011
CONNECTOR
- Located
behind
overhead
console
in
cabin.
33-11-02-01
33-11-02-02
33-11-02-03
33-11-02-04
33-40-04-01
JC012
CONNECTOR
24-61-01-01
24-61-01-02
24-61-01-03
24-61-01-04
24-61-03-02
24-61-03-04
24-61-03-06
JC014
CONNECTOR
31-50-01-01
S1638-1
S1638-1
S1638-1
S1638-1
S1638-1
JC015
CONNECTOR
-
Located behind
center instrument
panel.
31-50-01-02
31-50-01-03
31-50-01-04
31-50-01-05
33-10-01-02
33-10-01-03
JC018
CONNECTOR
30-60-01-01
31-50-01-05
JC023
CONNECTOR
22-10-04-10
23-20-01-01
23-20-01-02
23-50-01-06
23-50-01-07
24-61-01-05
24-61-01-05
25-60-01-04
31-50-02-01
31-60-01-01
34-10-01-01
34-40-01-02
34-40-02-01
34-50-03-01
34-52-02-01
34-53-01-05
34-60-01-01
S1641-6
S1641-6
S 1641-6
S1641-6
S1641-6
S1641-6
S 1638-6
S1638-6
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
S2350-10
81742 &ON
8481 & ON
JC024
CONNECTOR
- Located
behind
left
instrument
panel.
24-50-01-03
S2350-4
24-50-01-04
S2350-4
24-61-01-05 S2350-4
24-61-01-05 S2350-4
27-50-01-02
S2350-4
30-30-01-02 S2350-4
33-10-01-04
S2350-4
33-11-02-04 S2350-4
33-11-02-05 S2350-4
74-10-01-03 S2350-4
77-40-01-01 S2350-4
77-40-01-02 S2350-4
JC025
CONNECTOR
24-40-01-01
24-40-01-01
24-40-01-02
24-40-01-02
24-61-01-05
24-61-01-05
S2350-3
S2350-3
S2350-3
S2350-3
S2350-3
S2350-3
S2035-2
S2035-2
S2035-2
S2035-2
S2035-2
S2035-2
S2035-2
S1638-1
REFERENCE
DESIGNATOR
INDEX
