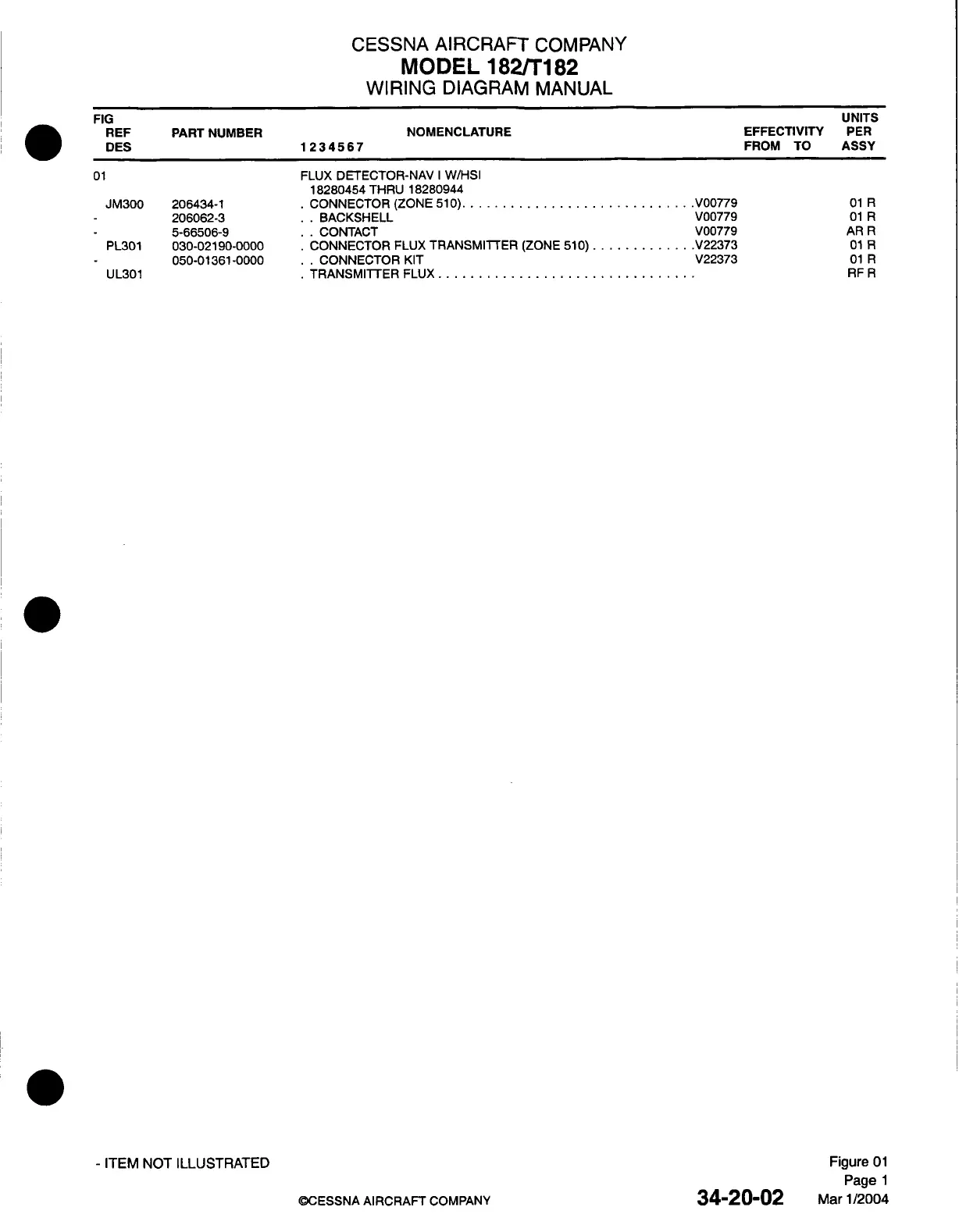

CESSNA AIRCRAFT COMPANY
MODEL
182/T182
WIRING DIAGRAM
MANUAL
FIG
REF
DES
PART NUMBER
01
JM300
206434-1
- 206062-3
- 5-66506-9
PL301 030-02190-0000
- 050-01361-0000
UL301
1234567
NOMENCLATURE
EFFECTIVITY
FROM TO
FLUX DETECTOR-NAV
I W/HSI
18280454
THRU 18280944
.
CONNECTOR
(ZONE
510) .............................
V00779
. . BACKSHELL
V00779
. . CONTACT
V00779
. CONNECTOR
FLUX
TRANSMITTER
(ZONE
510) ............
.V22373
. . CONNECTOR KIT
V22373
. TRANSMITTER
FLUX ................................
- ITEM NOT ILLUSTRATED
©CESSNA AIRCRAFT COMPANY
UNITS
PER
ASSY
01 R
01 R
AR R
01 R
01 R
RFR
Figure 01
Page 1
Mar 1/2004
34-20-02
