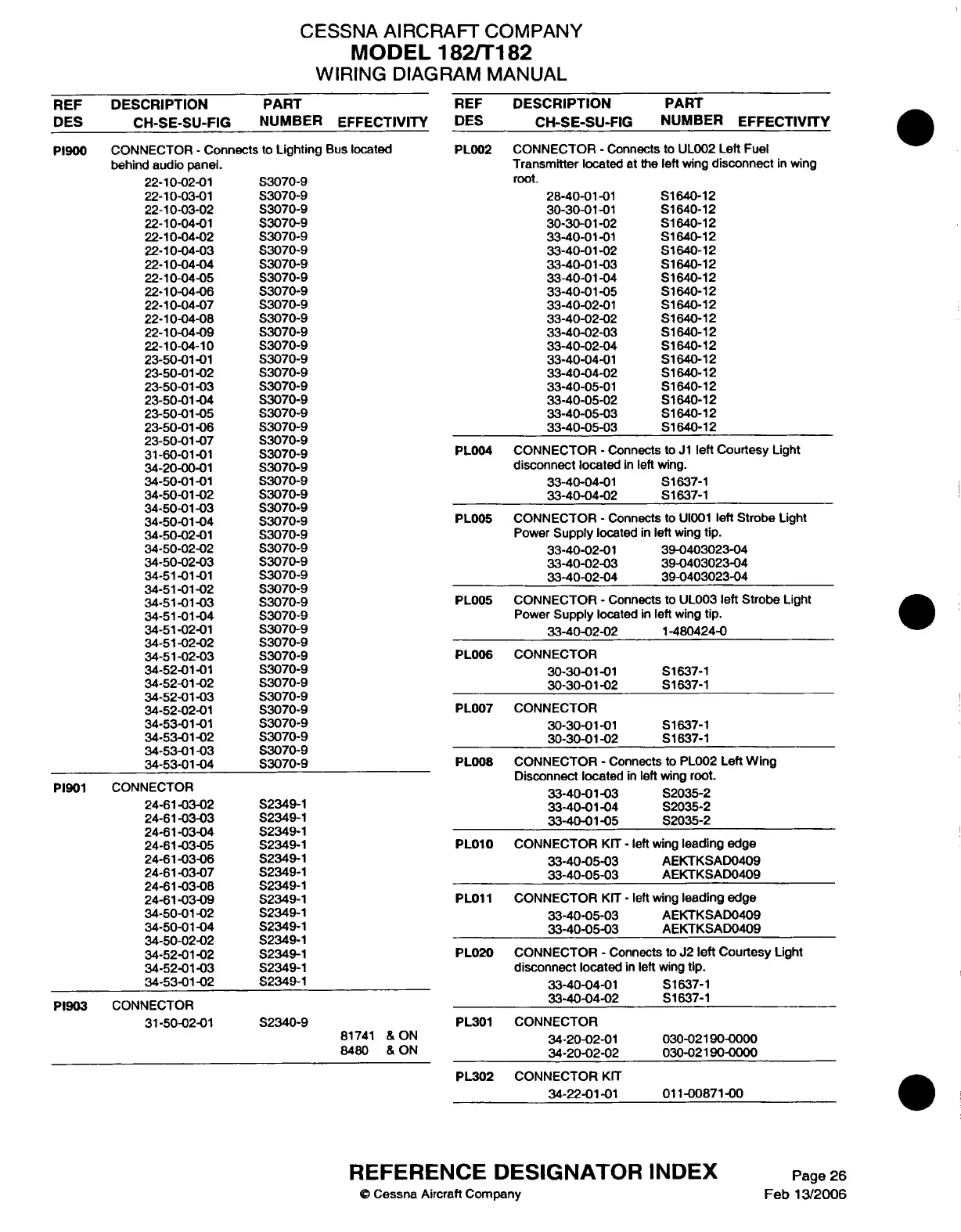

DESCRIPTION
CH-SE-SU-FIG
CESSNA
AIRCRAFT
COMPANY
MODEL 182/T182
WIRING
DIAGRAM
MANUAL
PART
REF DESCRIPTION
PART
NUMBER
EFFECTIVITY
DES
CH-SE-SU-FIG
NUMBER
EFFECTIVITY
P1900 CONNECTOR
- Connects to
Lighting Bus located
behind audio panel.
22-10-02-01 S3070-9
22-10-03-01 S3070-9
22-10-03-02 S3070-9
22-10-04-01 S3070-9
22-10-04-02 S3070-9
22-10-04-03
S3070-9
22-10-04-04 S3070-9
22-10-04-05 S3070-9
22-10-04-06 S3070-9
22-10-04-07 S3070-9
22-10-04-08 S3070-9
22-10-04-09 S3070-9
22-10-04-10
S3070-9
23-50-01-01 S3070-9
23-50-01-02 S3070-9
23-50-01-03
S3070-9
23-50-01-04
S3070-9
23-50-01-05 S3070-9
23-50-01-06 S3070-9
23-50-01-07 S3070-9
31-60-01-01 S3070-9
34-20-00-01 S3070-9
34-50-01-01 S3070-9
34-50-01-02 S3070-9
34-50-01-03 S3070-9
34-50-01-04 S3070-9
34-50-02-01 S3070-9
34-50-02-02 S3070-9
34-50-02-03 S3070-9
34-51-01-01 S3070-9
34-51-01-02 S3070-9
34-51-01-03 S3070-9
34-51-01-04 S3070-9
34-51-02-01 S3070-9
34-51-02-02 S3070-9
34-51-02-03 S3070-9
34-52-01-01 S3070-9
34-52-01-02 S3070-9
34-52-01-03 S3070-9
34-52-02-01 S3070-9
34-53-01-01
S3070-9
34-53-01-02 S3070-9
34-53-01-03 S3070-9
34-53-01-04 S3070-9
P1901 CONNECTOR
24-61-03-02
24-61-03-03
24-61-03-04
24-61-03-05
24-61-03-06
24-61-03-07
24-61-03-08
24-61-03-09
34-50-01-02
34-50-01-04
34-50-02-02
34-52-01-02
34-52-01-03
34-53-01-02
P1903 CONNECTOR
31-50-02-01
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2349-1
S2340-9
81741 &ON
8480 & ON
PLOO2 CONNECTOR - Connects to UL002 Left Fuel
Transmitter located
at the left wing disconnect
in wing
root.
28-40-01-01
30-30-01-01
30-30-01-02
33-40-01-01
33-40-01-02
33-40-01-03
33-40-01-04
33-40-01-05
33-40-02-01
33-40-02-02
33-40-02-03
33-40-02-04
33-40-04-01
33-40-04-02
33-40-05-01
33-40-05-02
33-40-05-03
33-40-05-03
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
S1640-12
PL004 CONNECTOR
- Connects to J1 left
Courtesy Light
disconnect
located
in left wing.
33-40-04-01 S1637-1
33-40-04-02 S1637-1
PLO05 CONNECTOR - Connects to UI001 left Strobe Light
Power Supply located in left wing tip.
33-40-02-01 39-0403023-04
33-40-02-03 39-0403023-04
33-40-02-04 39-0403023-04
PL005 CONNECTOR
- Connects to UL003 left
Strobe Light
Power Supply located in left wing tip.
33-40-02-02 1-480424-0
PL006 CONNECTOR
30-30-01-01
30-30-01-02
PL007 CONNECTOR
30-30-01-01
30-30-01-02
S1637-1
S1637-1
S1637-1
S1637-1
PL008 CONNECTOR
- Connects to PL002
Left Wing
Disconnect located in left wing root.
33-40-01-03 S2035-2
33-40-01-04 S2035-2
33-40-01-05 S2035-2
PL010 CONNECTOR KIT - left wing leading edge
33-40-05-03
AEKTKSAD0409
33-40-05-03 AEKTKSAD0409
PL011 CONNECTOR KIT - left wing leading edge
33-40-05-03 AEKTKSAD0409
33-40-05-03 AEKTKSAD0409
PL020 CONNECTOR
- Connects to J2 left
Courtesy Light
disconnect located in left wing tip.
33-40-04-01 S1637-1
33-40-04-02 S1637-1
PL301 CONNECTOR
34-20-02-01 030-02190-0000
34-20-02-02
030-02190-0000
PL302 CONNECTOR KIT
34-22-01-01 011-00871-00
REFERENCE
DESIGNATOR
INDEX
Cessna
Aircraft Company
