NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 89 of 129
Example 1: Releasing from CRUZcontrol
Releasing from CRUZcontrol
Problem Releasing Accumulated Product
Solution When using CRUZcontrol the product will automatically accumulate.
A signal must be given to the function module to get it to release.
Configuration Plug Function module into discharge zone.
All jumpers are set to pins 1-2.
Give function module a release signal either through the isolated input as shown
in Figure 15 or through the non-isolated inputs as shown in Figure 16.
Operation Product will release for as long as the release signal is given.

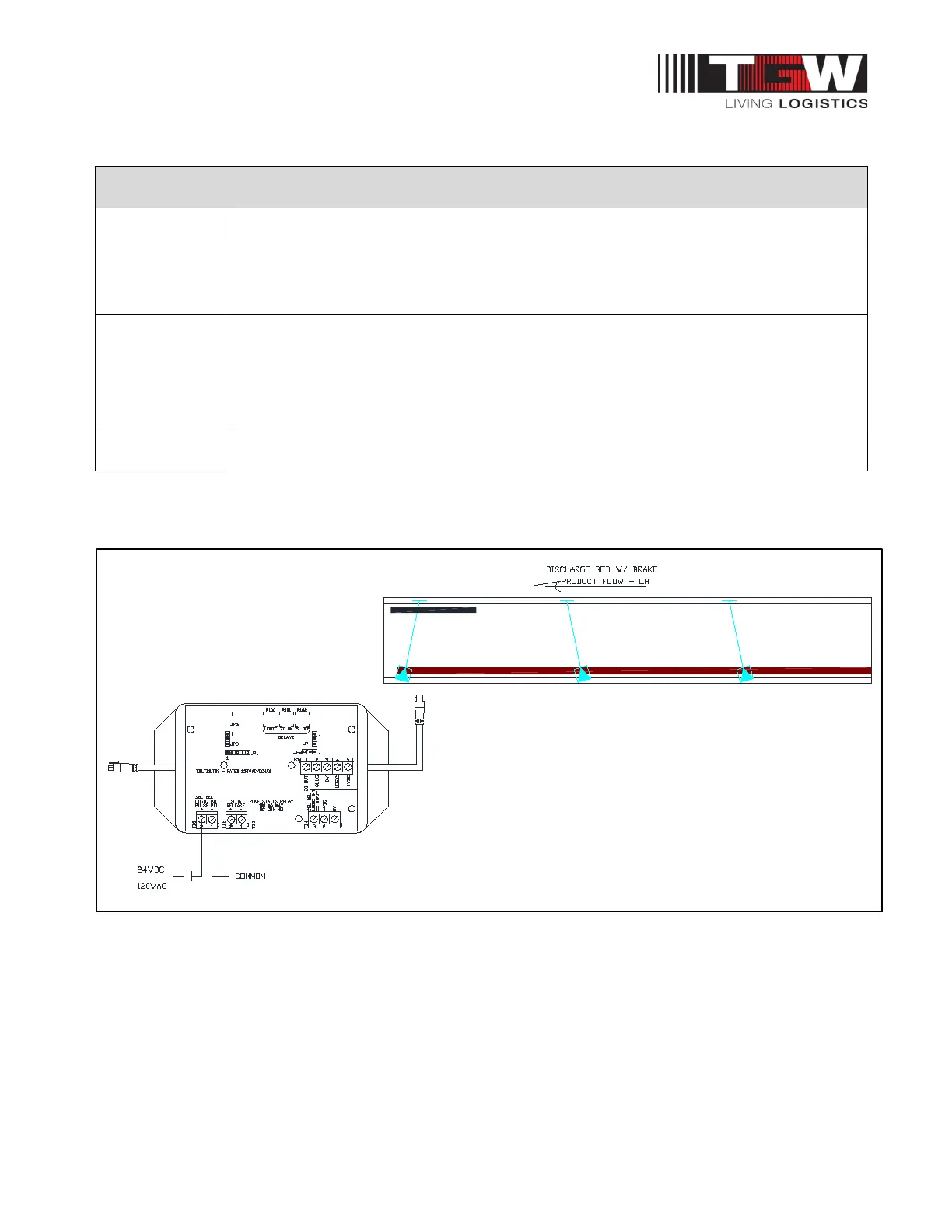

Figure 15: Isolated Input Single Release
