NBC™ Flat Belt - IOM
P/N: 1118140 Rev: 07/29/2020 Page 90 of 129

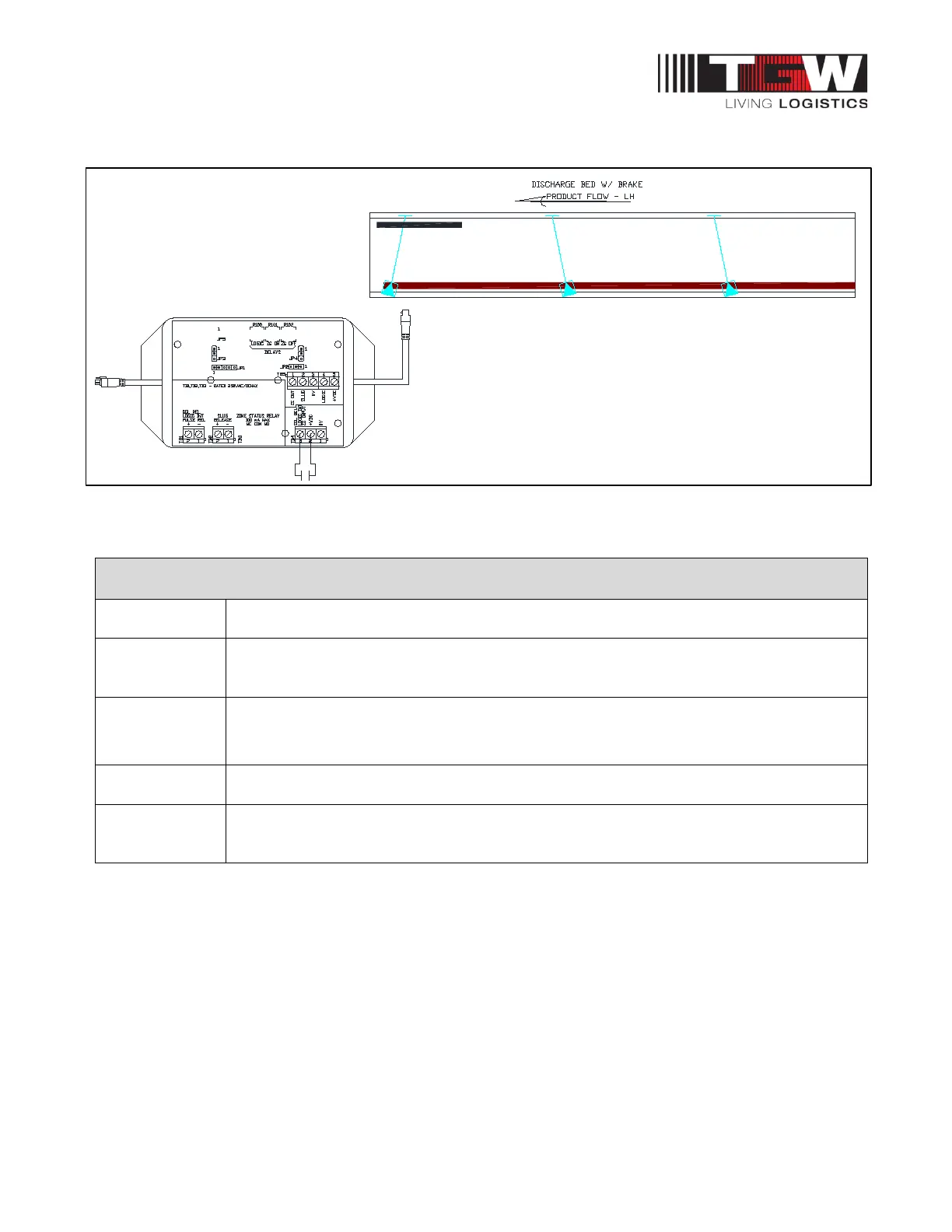

Figure 16: Non-Isolated Input Single Release
Example 2: Creating a work zone
Creating a work zone
Problem Creating a work zone in the middle of a section of CRUZcontrol
Solution Use the release function module and interrupt the downstream logic to start
accumulation.
Configuration When using TB1 to interrupt the logic set jumper terminal JP3, 2-3
When using TB4 to interrupt the logic set jumper terminal JP4, 2-3
User Action: Apply a high signal to TB1 (24Vdc/120Vac) or TB4 (24Vdc)
Operation All product stops at a specific accumulation zone, when the contact is closed and
is released when the contact is opened.
