iCNC PERFORMANCE
3-24 OPERATION Manual 0-5399

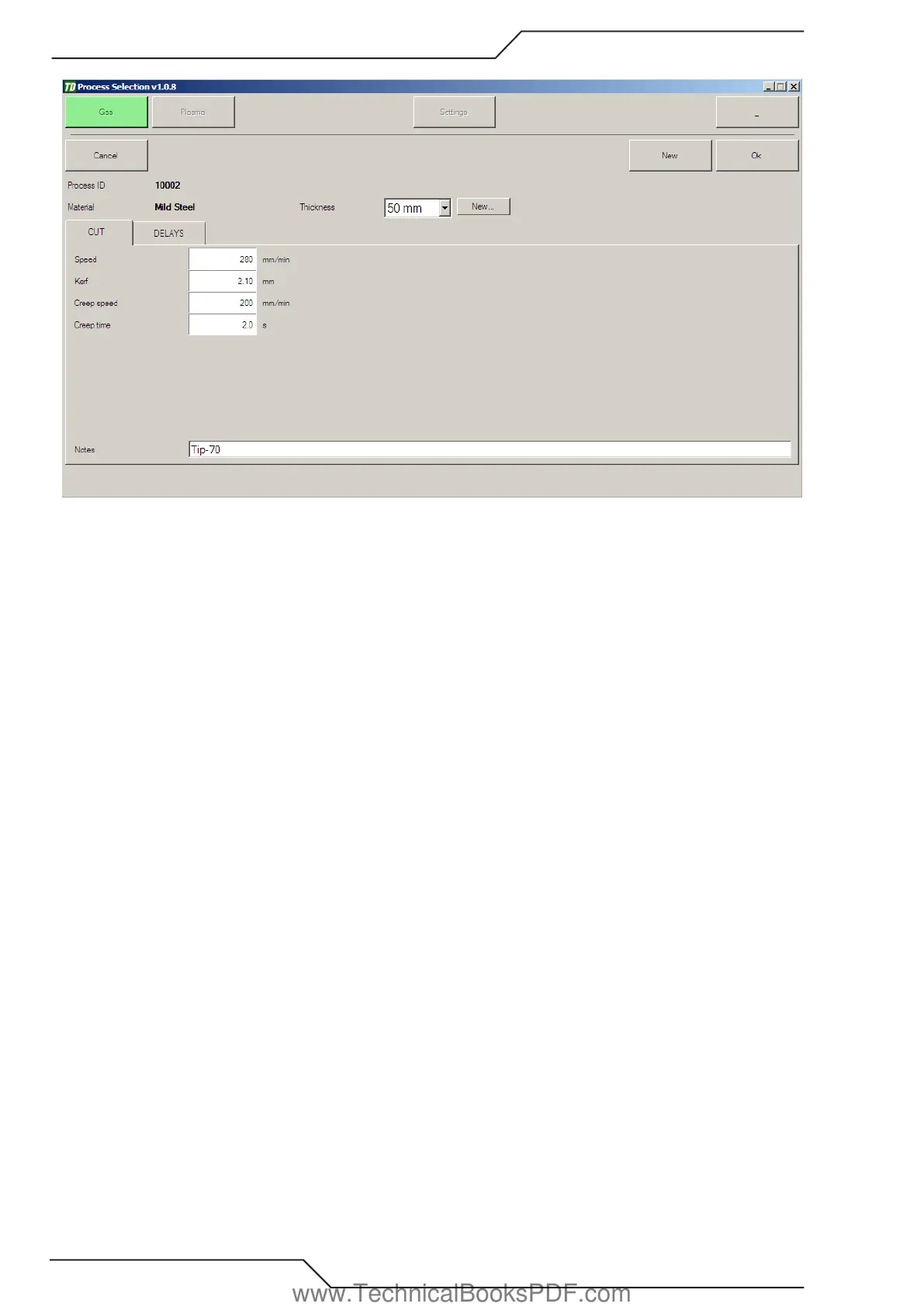

3. Set your parameters
Speed
This is the machine cutting speed. This setting duplicates the cutting speed setting in folder 1 Parameters. Changing one, changes
the other.
Kerf
The process kerf.
Creep speed
The initial speed of the cutting torch will immediately be activated after the start command is given. The duration of this speed is
determined by the setting of the Creep Time parameter. This ‘ramp-up” speed is used only shortly, to assist with piercing. After the
creep time is over the torch accelerates/decelerates to the normal cutting speed.
Creep time
Length of the time for using the creep speed.
Note
Allows the operator to put notes corresponding the changes that were made to the process.
