PARTS LIST
40
5.2 FRONT PANEL COMPONENTS
Fig. Item Qty. Catalog Description Reference
No. Number Designator
5-2 1 1 9-4418 Control Panel with Overlay - English
5-2 2 1 9-4419 Control Panel Overlay - English
5-2 (1) 1 9-4420 Control Panel with Overlay - International
5-2 (2) 1 9-4421 Control Panel Overlay - International
5-2 3 1 9-4210 Torch Leads Boot
5-2 4 1 8-1119 Top Panel
5-2 7 1 9-5607 ON/OFF Switch Kit- 3PST SW1
5-2 8 1 9-3405 RUN/SET Switch- DPDT SW2
5-2 9 1 9-4188 LED Control Indicator PC Board
5-2 10 1 9-5608 Range Switch
5-2 11 1 9-5862 Range Switch Knob SW3
5-2 12 2 9-3995 Fastener Receptacle
5-2 13 2 9-4346 Fastener Stud
5-3 14 2 9-4347 Fastener Retaining Ring

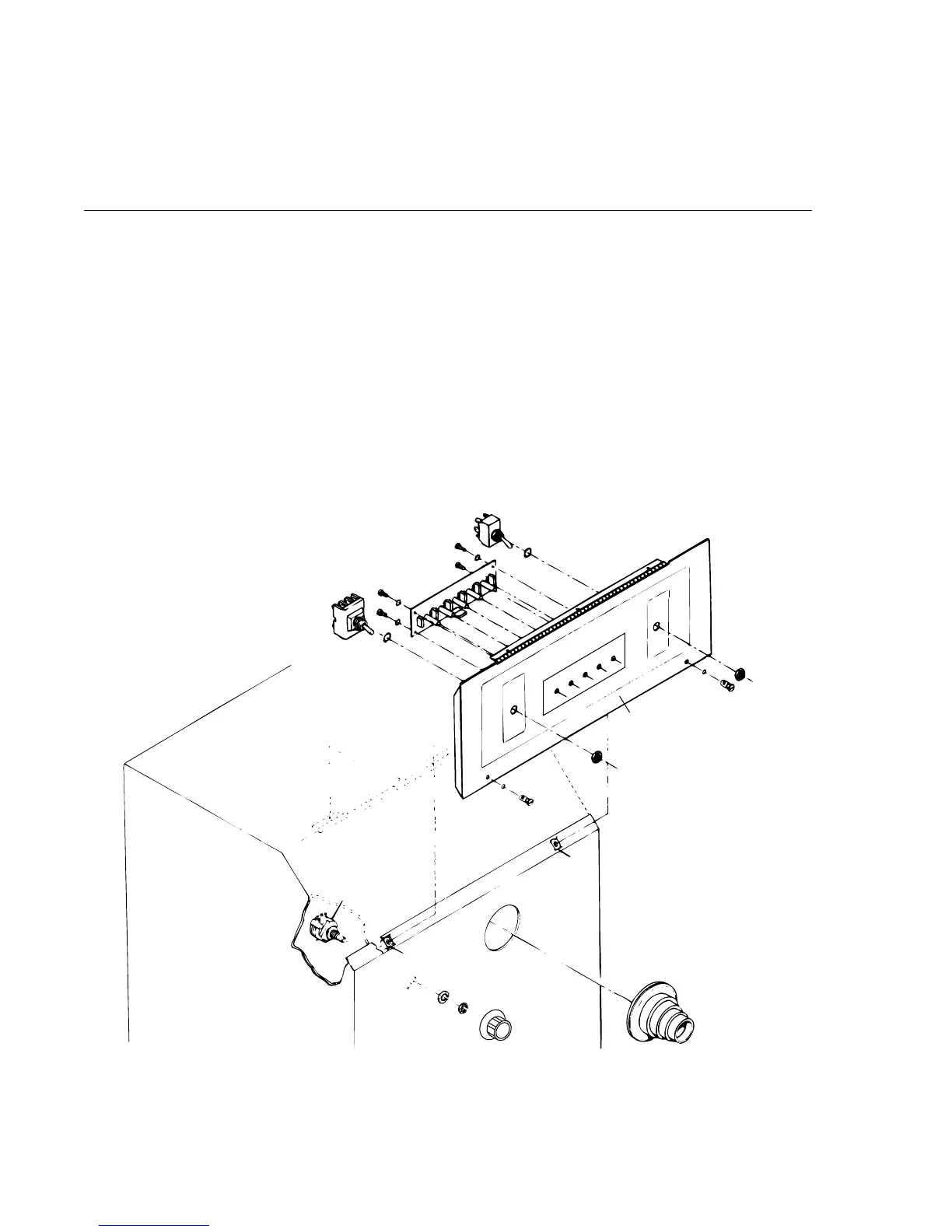

Figure 5-2 Front Panel Components
4
7
9
8
2
13
14
14
13
12
12
3
11
10
1
A-01465

Thermal Dynamics SIGNATURE PAK 1250XRTM Specifications

General

Brand	Thermal Dynamics
Model	SIGNATURE PAK 1250XRTM
Category	Welding System
Language	English
