PARTS LIST
41

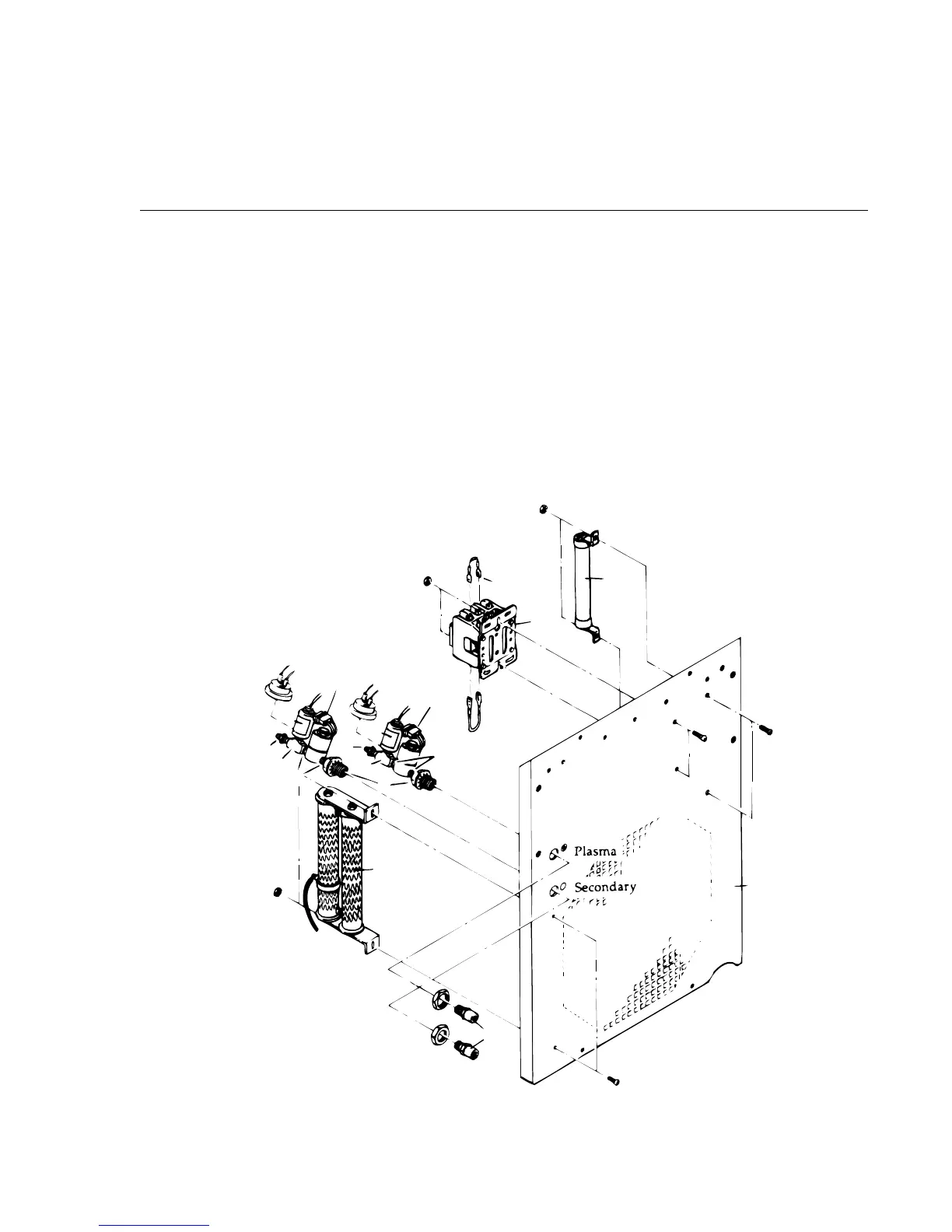

Figure 5-3 Rear Panel Components
Fig. Item Qty. Catalog Description Reference
No. Number Designator
5.3 REAR PANEL COMPONENTS
5-3 1 1 8-1123 Rear Panel
5-3 2 1 8-1154 Pilot Resistor Assembly R6,R10
5-3 3 1 9-5586 Contactor - 24 VAC PCR
5-3 4 1 9-5610 Resistor - 100k ohm, 1/2 W R9
5-3 5 1 9-3568 Resistor - 100 ohm, 100 W R5
5-3 6 2 9-4337 Solenoid Assembly (Includes All Fittings) SOL1,2
5-3 7 2 9-4078 Reducing Bulkhead Fitting
5-3 8 4 8-0354 Close Nipple Fitting
5-3 9 2 8-0312 Female Tee Fitting
5-3 10 2 8-0257 Straight Adaptor Fitting
5-3 11 1 8-6130 Pressure Switch Assembly - Plasma (30 psi) PS1
5-3 12 1 8-6131 Pressure Switch Assembly - Secondary (40 psi) PS2
5-3 13 2 9-5209 Solenoid Receptacle
5-3 14 2 9-3257 Pressure Switch Plug
5-3 15 2 8-0330 Adaptor Fitting
A-01466
1
2
3
4
5
7
8
9
10
11
12
13
14
15
13
(12)
(11)
9
10
14
8
To Next Page
