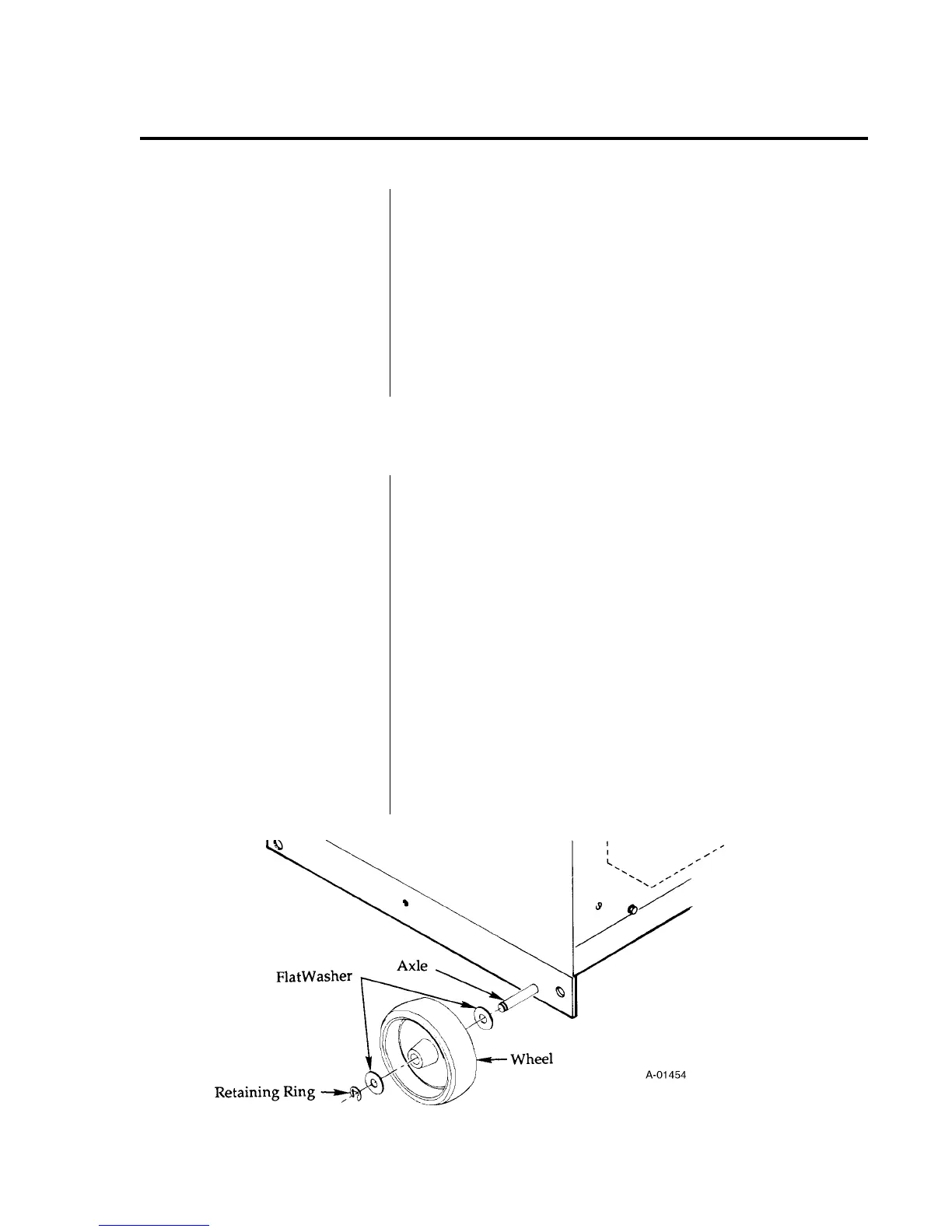

Figure 2-A Standard Running Gear Assembly
INSTALLATION
2.1 UNPACKING THE SYSTEM
The power supply is skid-mounted and protected with a
carton and padding material to prevent damage during
shipment. The two front casters are factory-installed on
the unit. The power supply, running gear, work cable,
torch, torch leads, and spare parts kit are packed together.
1. Remove packing material.
2. Locate the packing list. Use the list to identify and
account for each item.
3. Inspect each item for possible shipping damage. If
damage is evident, contact your distributor before
proceeding with system installation.
Standard running gear includes rear wheels with mount-
ing hardware, factory-installed front casters, and handle.
The optional cylinder rack running gear (see page 8) is
designed for mounting and transporting two gas cylinders
with the system.
Refer to Figure 2-A and:
1. Remove all packing material. Install the running gear
with the unit still on the skid.
2. Locate the two rear wheels, axle, handle, and mounting
accessories.
3. Feed the axle through the large hole on each side of the
base as shown.
4. Slip a flat washer onto the axle, then a wheel, followed
by another flat washer. Locate these parts behind the
groove in the axle.
5. Press the retaining ring into the groove to secure the
wheel assembly.
6. Follow the same procedure for the other wheel.
(continued)
Standard Running Gear
Assembly
2.2 EQUIPMENT ASSEMBLY
SECTION 2: UNIT ASSEMBLY
