PARTS LIST
46

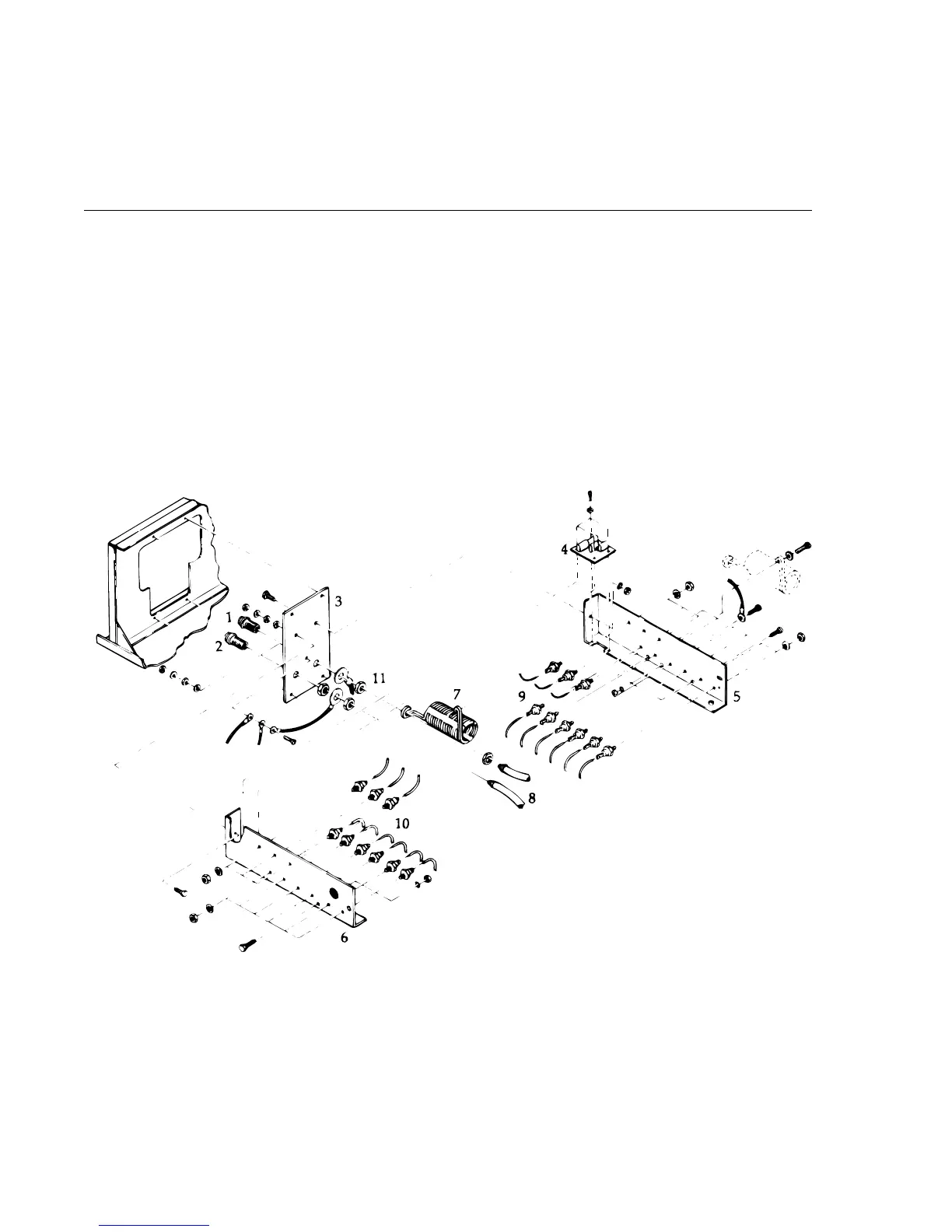

Figure 5-6 Bulkhead Components
5-6 1 1 9-4045 Bulkhead Fitting - 1/8 NPT, Standard Thread
5-6 2 1 9-4046 Bulkhead Fitting - 1/8 NPT, Left-Hand Thread
5-6 3 1 8-2141 Insulator - Bulkhead & Bridge
5-6 4 1 9-4333 Filter PC Board - Main Bridge
5-6 5 1 8-1129 Negative Heatsink
5-6 6 1 8-1130 Positive Heatsink
5-6 7 1 8-1131 Suppression Coil L1
5-6 8 2 8-1163 Internal Gas Hose
5-6 9 9 9-5466 Diode - Reverse Polarity , 40A, 1000v D1,3,5,11,13,15,21,23,25
5-6 10 9 9-5260 Diode - Straight Polarity, 40A, 1000v D2,4,6,12,14,16,22,24,26
5-6 11 4 8-2149 Jam Nut
Fig. Item Qty. Catalog Description Reference
No. Number Designator
5.6 BULKHEAD COMPONENTS
A-01469
