PARTS LIST
47
5.7 TORCH COMPONENTS
Fig. Item Qty. Catalog Description
No. Number
5-7 1 2-2940 PCH-52 70° Hand Torch with Parts
5-7 1 2-2398 PCH-52 90° Hand Torch with Parts
5-7 1 2-2941 PCM-52 180° Machine Torch with Parts
5-7219-5642PCH-52 Basic 70° Hand Torch Body
5-7 1 9-5854 PCH-52 Basic 90° Hand Torch Body
5-7119-5643PCM-52 Basic 180° Machine Torch Body
5-7 3 2 8-0536 O-Ring (Handle)
5-7 4 1 8-5525 O-Ring (Shield Cup)
5-7 5a 1 9-5711 Multi-Gas Electrode
5-7 5b 1 9-5619 Air Electrode
5-7 6a 1 8-5129 Gouging Tip
5-7 6b 1 9-5702 Cutting Tip - .031 in Orifice (For Range I - 35 amps)
5-7 1 9-5707 Cutting Tip - .047 in Orifice (For Range II - 70 amps)
5-7 1 9-5708 Cutting Tip - .059 in Orifice (For Range III - 105 amps)
5-7 7a 1 8-5128 Gouging Cup
5-7 7b 1 9-5617 Standard Shield Cup - Ceramic
5-7 1 9-5781 Standard Shield Cup - Phenolic (Not Shown)
5-7 7c 1 9-5694 Crown Cup
5-7 1 9-5712 Drag Cup (Not Shown)
5-7 1 9-5799 Standoff Attachment - Use with 9-5781 (Not Shown)
5-7 1 9-5780 Standoff Attachment (Short) - Use with 9-5781 (Not Shown)
5-7 1 8-5130 Heat Shield - For Gouging (Not Shown)
5-7 8 1 8-4007 Tip Wrench (for Spare Parts Kit)
5-7 9 1 9-5620 Electrode Wrench (for Spare Parts Kit)
5-7 1 8-4025 O-Ring Lubricant (for Spare Parts Kit - not shown)
5-7 1 8-3141 Tool Box (for Spare Parts Kit)

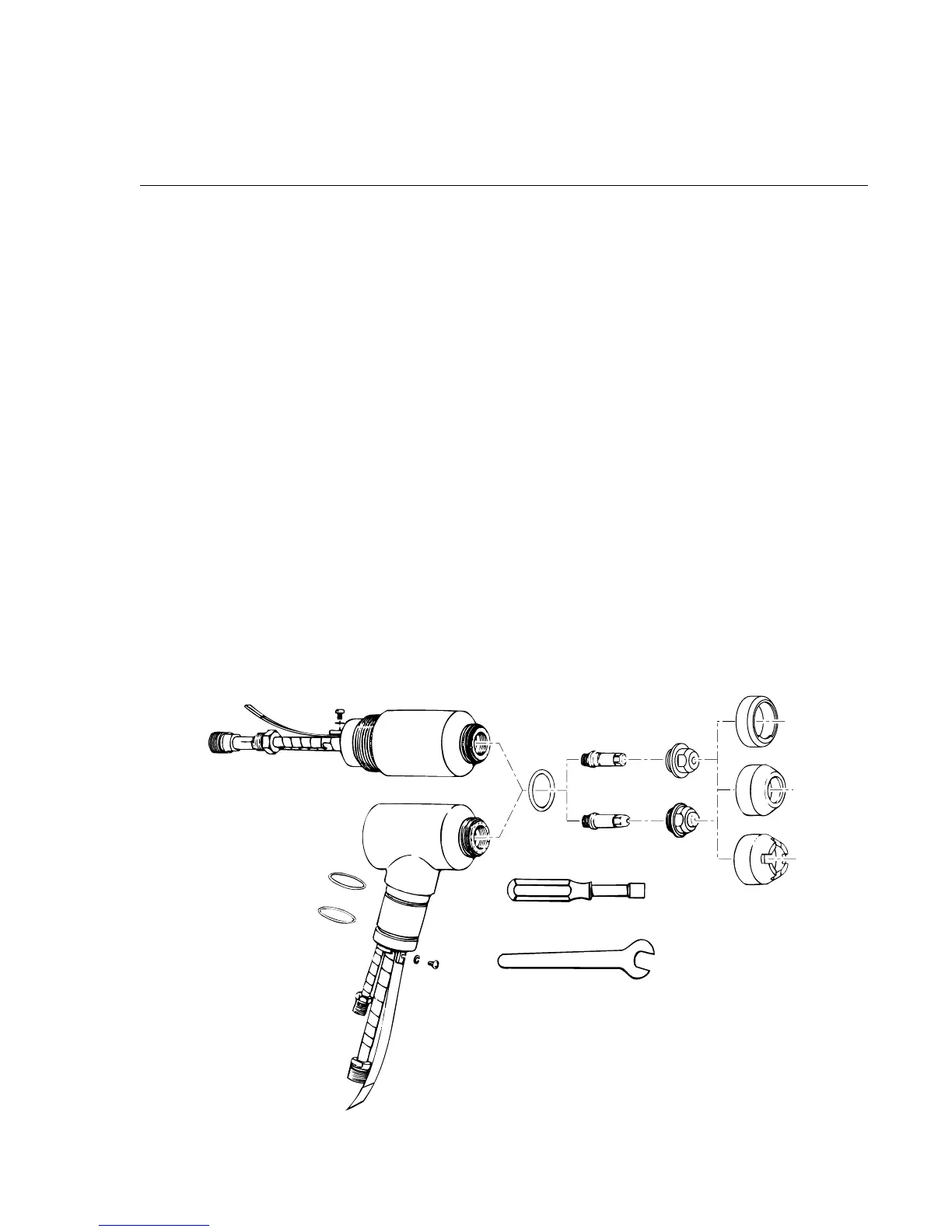

Figure 5-7 Torch Components
2
1
4
5b
5a
6b
6a
7b
7a
7c
8
9
3
A-01480
