16. Rotate the door 180° and place it in the lower hinge bracket. Install
the upper hinge bracket where indicated.
17. Screw the threaded plugs into the holes vacated by the door hinge
brackets where indicated in Figure 5-5.
18. Install the door open switch target plate. Refer to Figure 5-6 and 5-7.
The plate must be positioned exactly 12.5 inches from the outside
edge of the cabinet to the leading edge of the plate. Do not
overtighten.
19. Connect the door heater cable and install the kick plate with the door
heater cable on the right side.
20. Installing the outer door onto the hinge pins completes the door
reversal procedure.
Model 310 Series DH Incubator 5-7Thermo Scientific
Section 5
Routine Maintenance

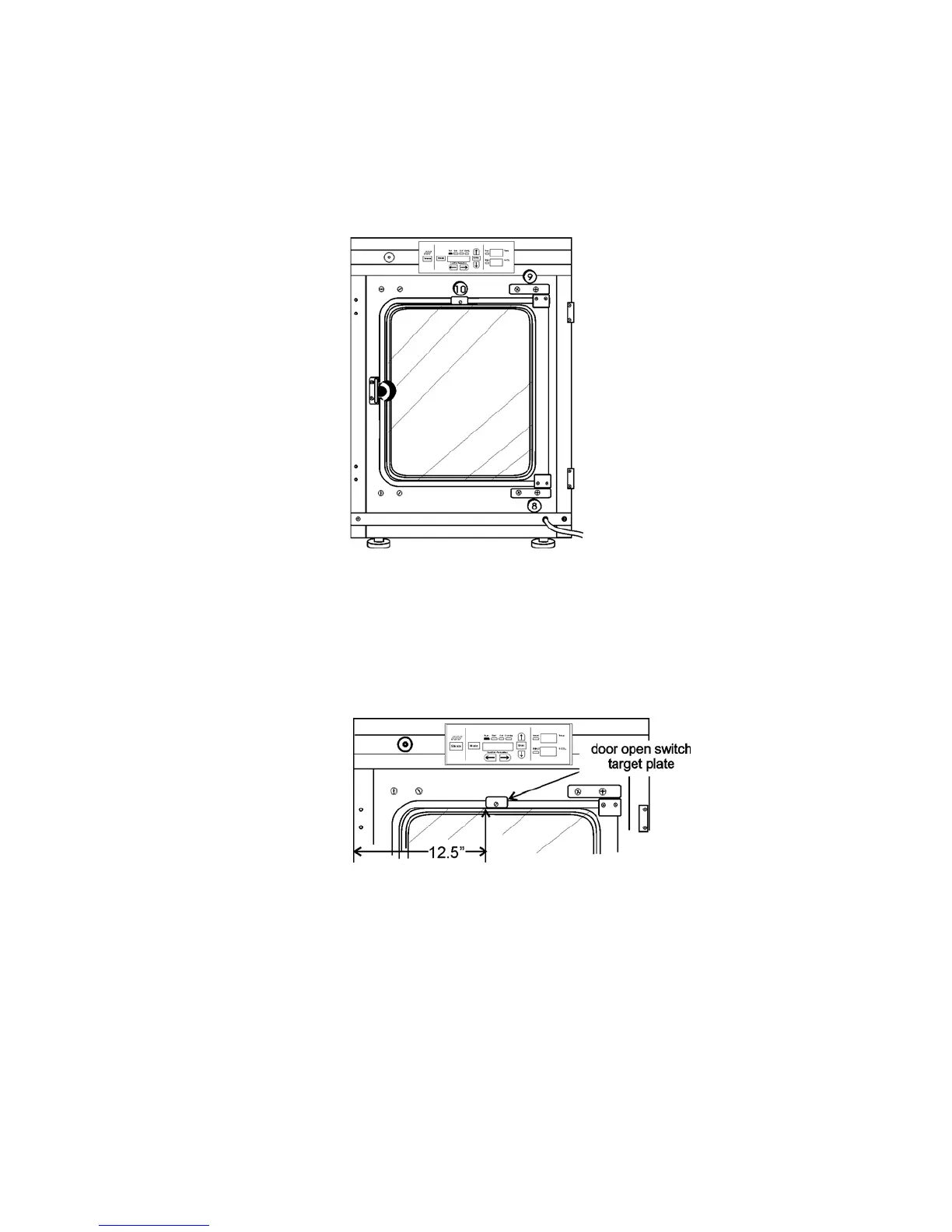

Figure 5-6. Reversed Components
Figure 5-7. Plate Position
Reversing the Door
Swing (continued)
