Replaceable Parts and Consumables
EI/CI Ion Source Replaceable Parts
146 TSQ Quantum XLS Series User Guide Thermo Scientific

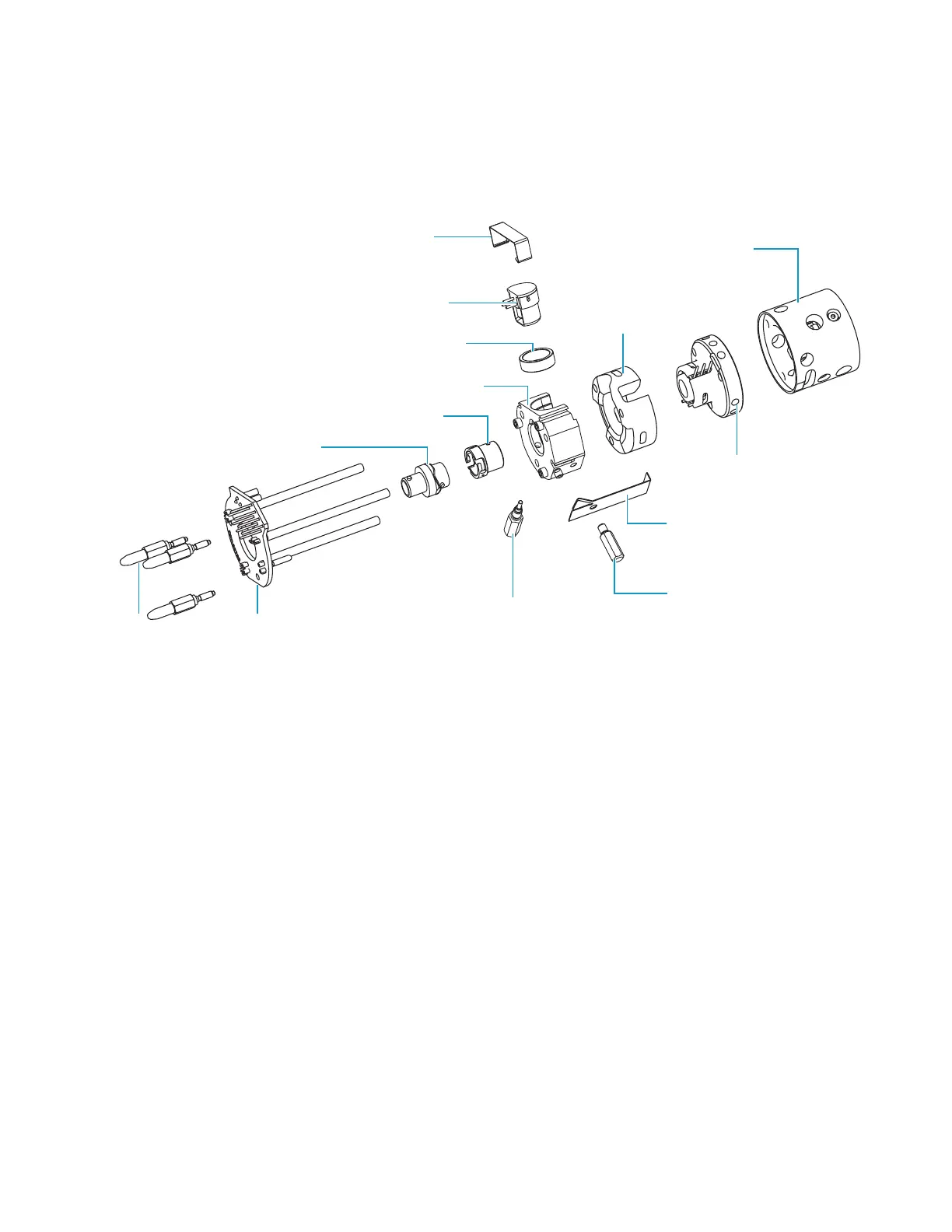

Figure 75. Ion source (70111-60840)
L1, L2, L3 lens assembly
(70111-60842)
Heater ring
(70111-22052)
Centering ring
(70111-22061)
Ion source block
(70111-22019)
Heater ring and lens
assemblies retainer clip
(70111-22070)
Threaded standoff
(70111-22060)
Ion volume retaining
thumbscrew
(70111-22059)
EI/CI Source PCB
(70111-60848)
Base studs
(70111-22056)
Ion volume holder
(70001-20532-T)
Closed EI ion volume
(70111-22147)
Heated Q0 quadrupole
assembly (70111-60843)
Filament
(120320-0030)
Filament retainer clip
(70111-22071)
