Thermo Scientific TSQ Quantum XLS User Manual

6
Maintenance
Completely Disassembling and Reassembling the Ion Source
96 TSQ Quantum XLS Series User Guide Thermo Scientific
Complete Disassembly and Reassembly of the Ion Source
See Figure 55 for the location of the ion source components.
Y To disassemble the ion source completely
1. Prepare a clean work area by covering the area with lint-free cloth.
2. Shut down and vent the TSQ Quantum XLS Series system. See“Shutting Down the
System Completely” on page 51
.
3. Wearing clean, lint- and powder- free gloves, remove the ion source. See “Removing the
Ion Source” on page 88.
4. Remove the ion source from the magnet yoke.

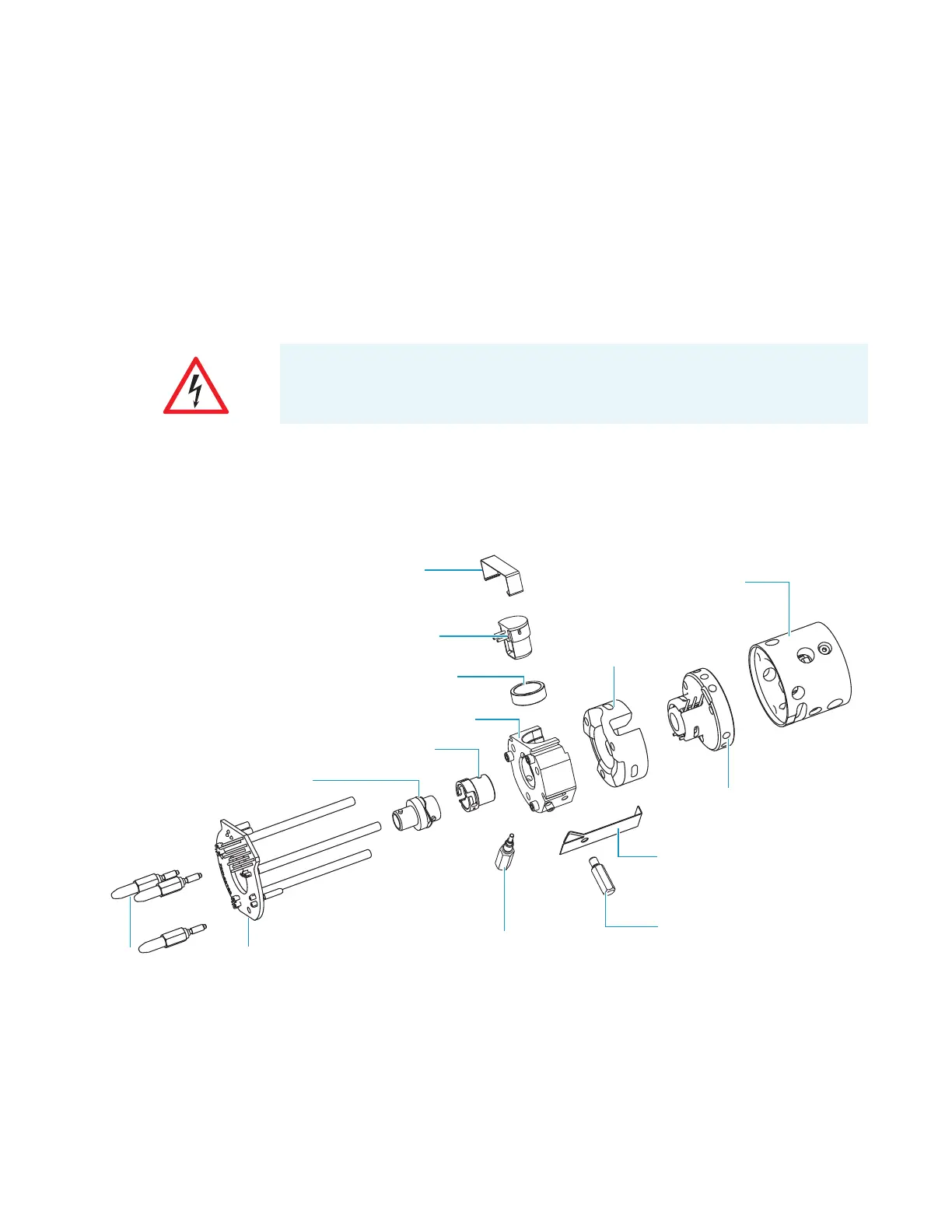

Figure 55. TSQ Quantum XLS Series ion source, disassembled
5. Unscrew the threaded hexagonal standoff and remove the retainer clip that secures the
heater ring and lens assemblies to the ion source block.
6. Pull the heated Q0 quadrupole assembly and the L1, L2, L3 lens assembly off the ion
source.
WARNING Shock Hazard. Unplug the mass spectrometer before proceeding.
L1, L2, L3 lens assembly
70111-60842
Heater ring
70111-22052
Centering ring
70111-22061
Ion source block
70111-22019
Heater ring and lens
assemblies retainer clip
70111-22070
Threaded standoff
70111-22060
Ion volume holder
70111-20532
Closed EI ion volume
70111-22038
Heated Q0 quadrupole
assembly 70111-60843
Filament
120320-0030
Filament retainer clip
70111-22071
L1, L2, L3 lens assembly
Heater ring
Centering ring
Ion source block
Heater ring and lens
assemblies retainer clip
Threaded standoff
Ion volume retaining
thumbscrew
EI/CI Source PCB
Base studs
Ion volume holder
Closed EI ion volume
Heated Q0 quadrupole
Filament
Filament retainer clip
