Functional Description
Mass Spectrometer
Thermo Scientific TSQ Quantum XLS Series User Guide 25
The Ethernet Link OK LED is green when the System Control PCB is communicating with
the data system computer. The LED is off when there is no communication between the
System Control PCB and the data system computer.

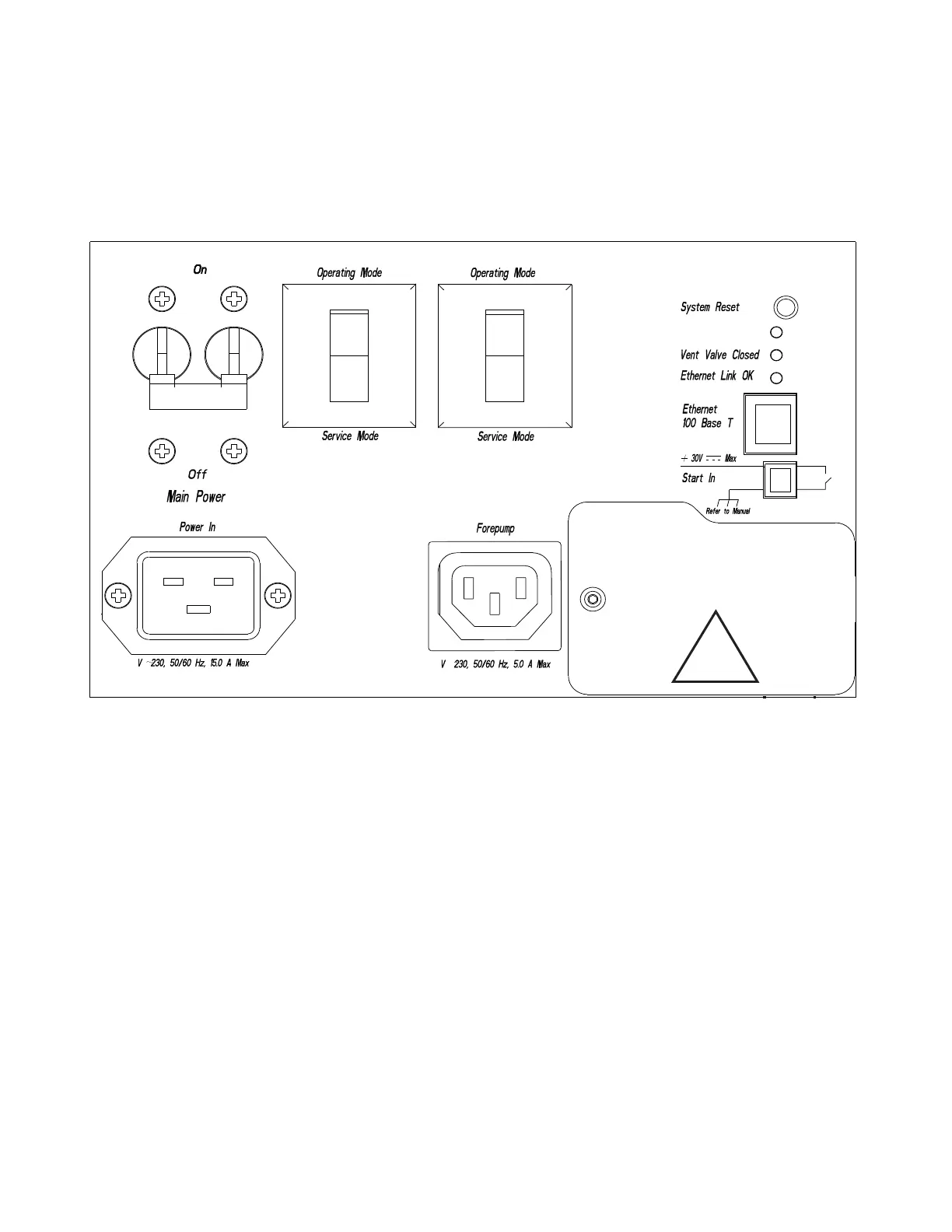

Figure 14. Right-side power panel of the mass spectrometer
Qualified
Service
Personnel
Only
!
Electronics
Vacuum
Pump On
