Thermo Scientific TSQ Quantum XLS User Manual

5
Changing Ionization Modes
Removing the Ion Volume
74 TSQ Quantum XLS Series User Guide Thermo Scientific

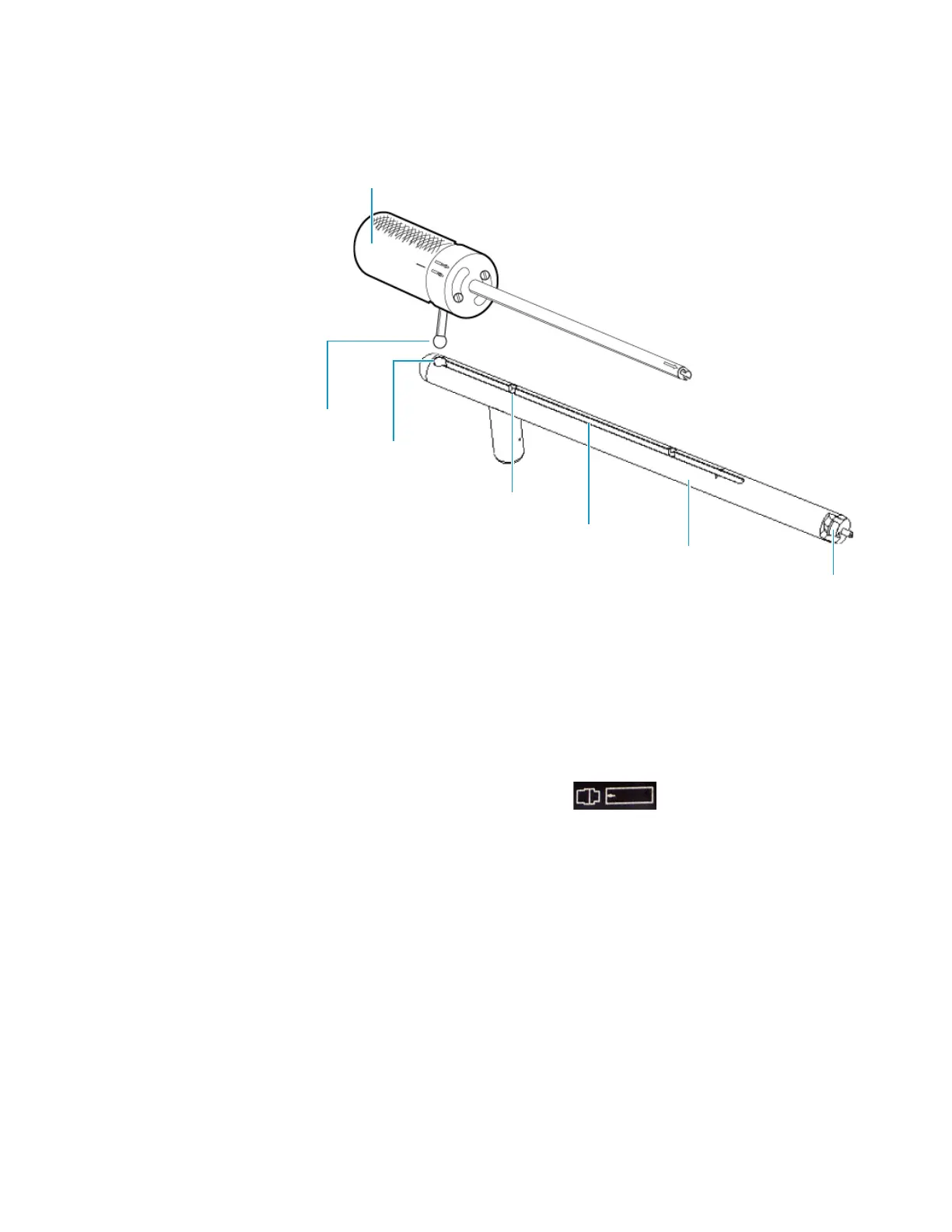

Figure 41. Insertion/removal (I/R) tool and guide bar
2. Prepare the inlet valve and I/R tool for insertion:
a. Make sure the inlet valve is closed. Figure 42 shows the inlet valve lever is down for
closed.
b. Loosen the inlet valve knob counterclockwise and remove the inlet valve plug. The
inlet valve plug prevents air from entering the vacuum manifold in case the inlet valve
is inadvertently opened.
c. Turn the I/R tool to the unlock position , which indicates the I/R tool is
in position to accept the ion volume.
I/R tool
Guide ball
hole
First stop
Guide ball
track
Guide bar
Bayonet
lock
Guide ball
