THORLABS DCC1645C User Manual

Getting started
2
US: PO Box 366, 435 Route 206N, Newton, NJ 07860, Tel: +1 (973) 579-7227, Fax: +1 (973) 3600,
Europe: Hans-Böckler-Str. 6, 85221 Dachau, Germany, Tel: +49 8131 59560, Fax +49 8131 595699
Web: http://www.thorlabs.com Mail: europe@thorlabs.com
14/05/09

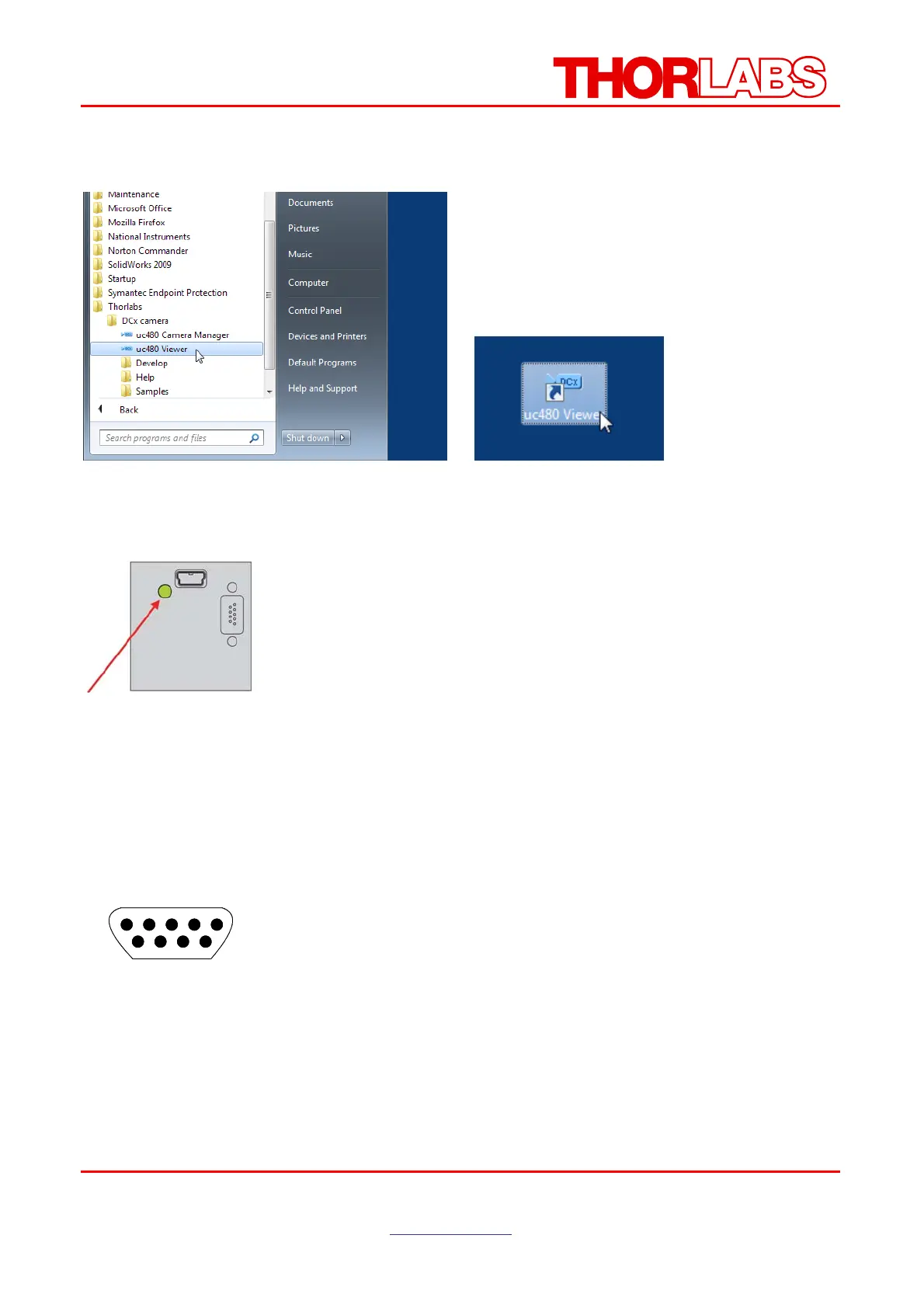

3) Start camera camera viewer
…from START button… …or from desktop icon.
Camera viewer will show the first pictures
Check for DCU cameras:
? red = driver not loaded
? green = driver loaded and camera ready
Cables:
Standard USB-A to USB Mini-B
Optional:
DCU camera Micro Sub-D connector with shielded USB 2.0 to USB-A including breakout-
cables for trigger and strobe.
Sub-D 9p male (camera rear view)
1
5
9
6
Micro Sub-D connector
