51Camera viewer (uc480Viewer)
© 2010 Thorlabs
6.4.3
Size
On this tab, you can set the image size parameters for your DCx camera (see also Reading out
Partial Images ).

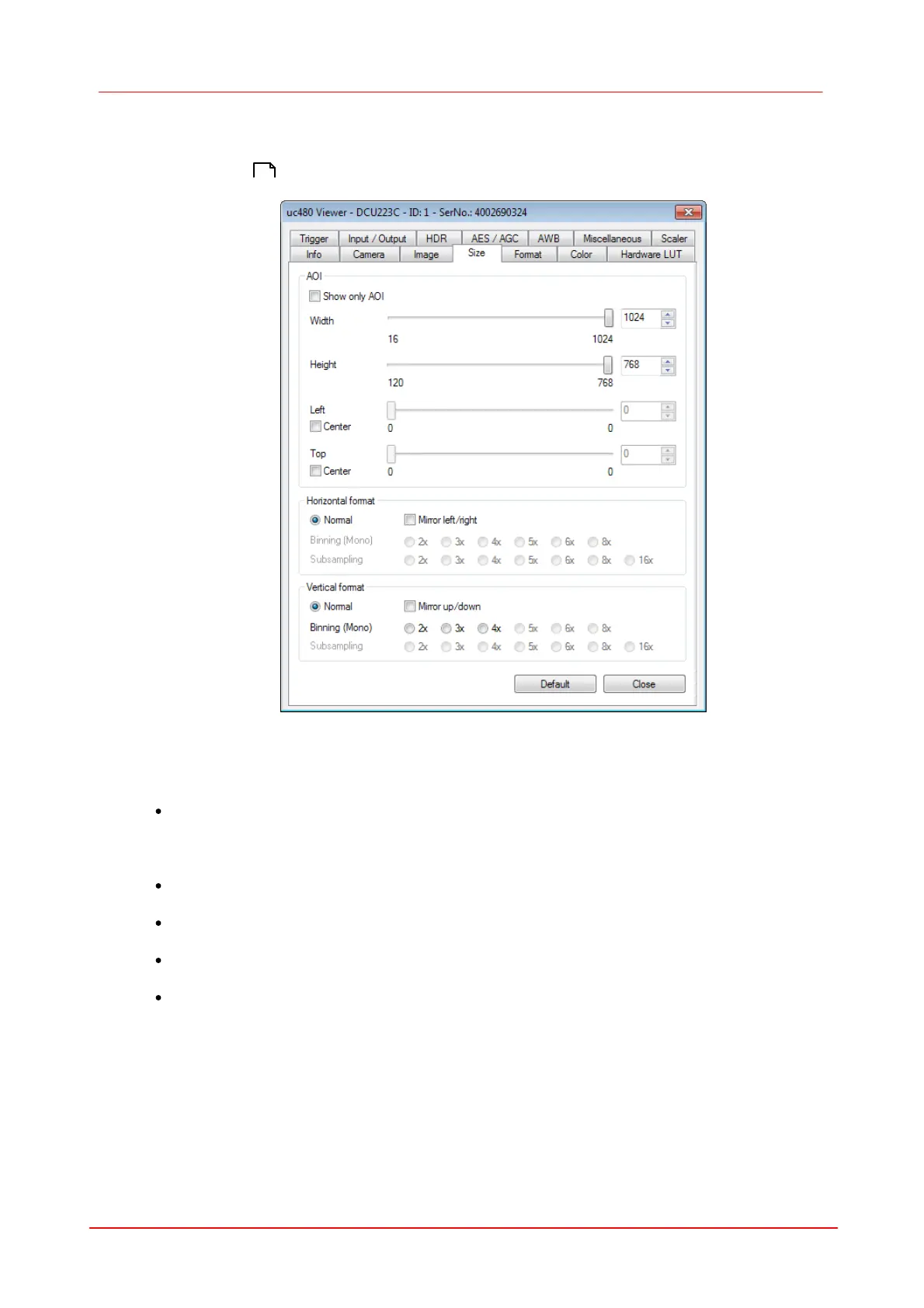

Figure 21: Properties- Size
Area of Interest (AOI)
Within the maximum values limited by the resolution the window size and position can be selected.
The following attitude possibilities are present:
Show only AOI
AOI is displayed without black border. Internally the image is administered in the AOI resolution
and not in the full resolution of sensor. This function saves memory and computing time when
building the image.
Width
Set the window width.
Height
Set the window height.
Left
Set the left position of the window. Using the option Center will centre the AOI horizontal.
Top
Set the top position of the window. Using the option Center will centre the AOI vertical.
It applies to consider, that the sum of left position and width can never exceed the maximum width,
and the sum of top position and height can never exceed the maximum height.
Horizontal / Vertical format
