399Appendices
© 2010 Thorlabs
USB-Board
mA
Rev. 1.2
50
Rev. 2.1
500

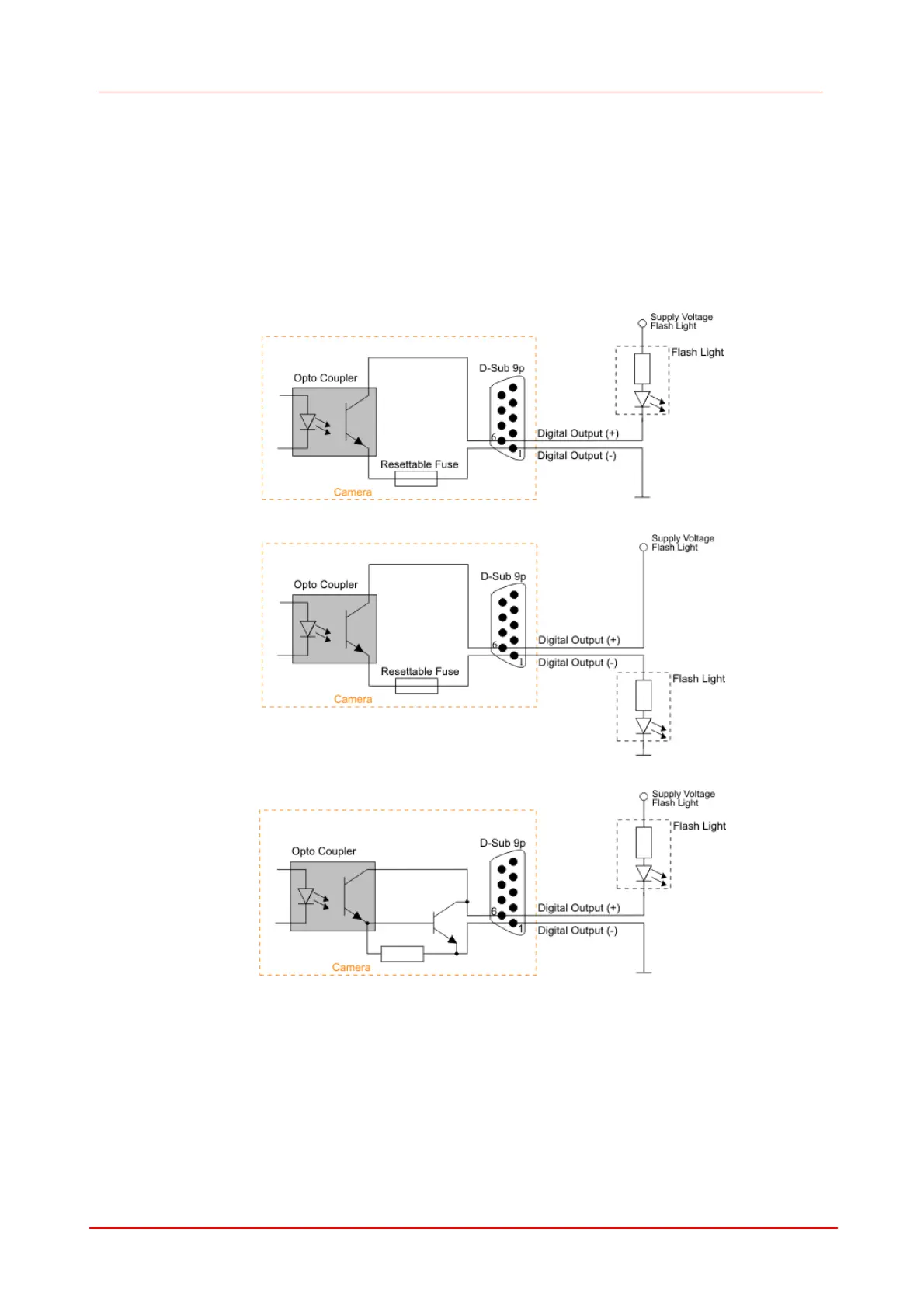

In the following drawing examples of the connection of the digital output are to be found.
Figure 103 Rev. 1.2 Flash Strobe output as Open Collector (OC)
Figure 104 Rev. 1.2 Flash Strobe output as Open Emitter (OE)
Figure 105 Rev. 2.0 Flash Strobe output as Open Collector (OC)
