5 Specifications
447
Method
H + V: Color subsampling
Factor
2x, 4x
Frame rate w/ 2x subsampling, 640
x 480 pixels
fps
89
Frame rate w/ 4x subsampling, 320
x 240 pixels
fps
263
Hardware trigger
Mode
Asynchronous
Trigger delay with rising edge
µs
180.9 ±0.25
Trigger delay with falling edge
µs
199.3 ±0.25
Additive trigger delay (optional)
µs
15 µs...4 s
Power consumption
*5
W
0.3 to 0.8
*
1
The maximum possible pixel clock frequency depends on the PC hardware used.
*
2
Requires maximum pixel clock frequency.
*
3
Requires minimum pixel clock frequency.
*
4
Use of this function increases the frame rate.
*
5
The power consumption depends on the sensor model and the pixel clock setting.
Please see also the DCC1645C Application Notes chapter.

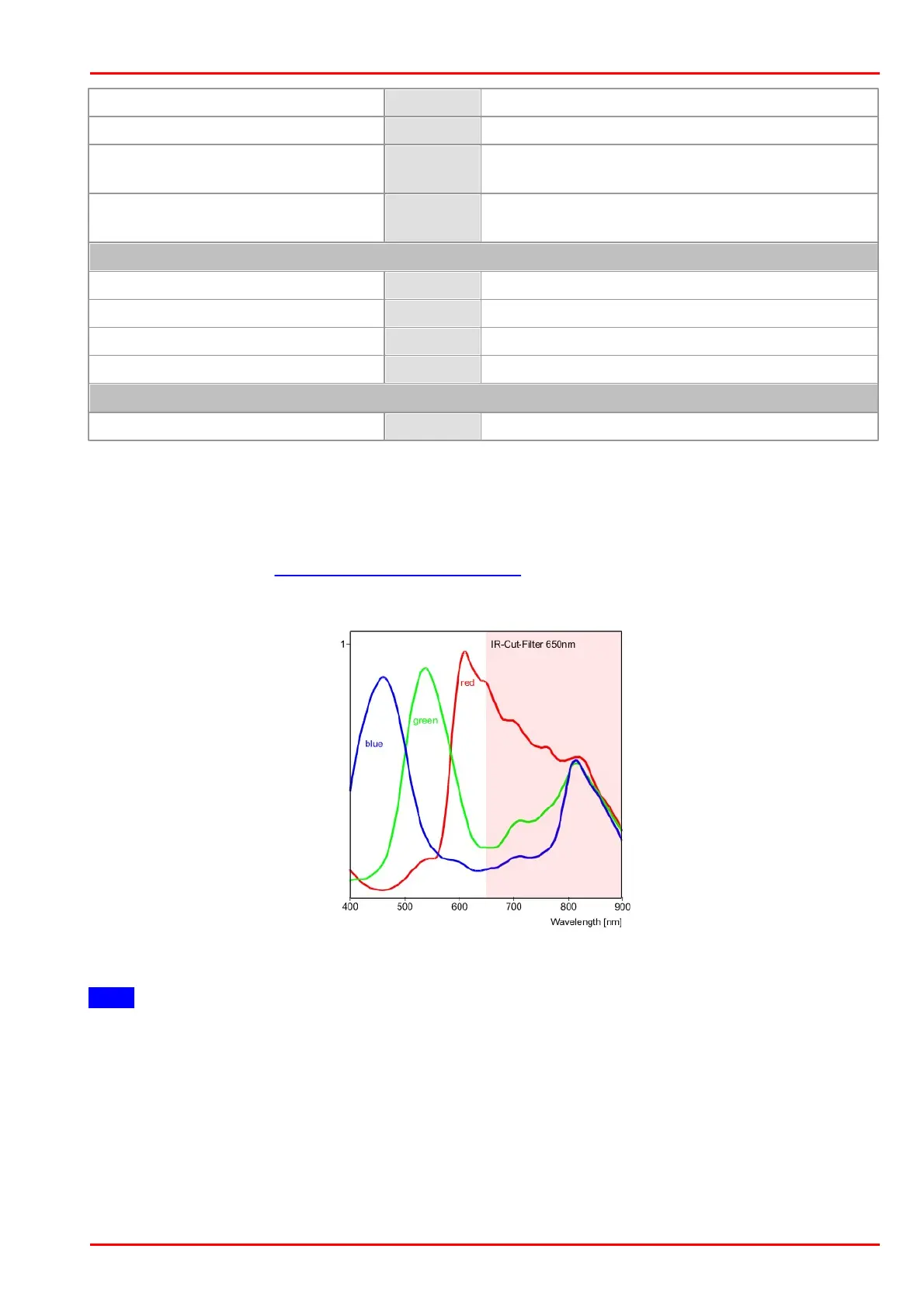

Relative sensor sensitivity
Sensor sensitivity of the DCC1645C
Note
The colored part of above diagram just indicates the IR wavelength range in order to tell it from the
visible.
