5.6 Accessories for DCx cameras
Lenses
Thorlabs also supplies a wide variety of lenses and objectives from leading manufacturers. Please contact Thorlabs for
technical support and a detailed quote tailored to your needs.
USB cables
All Thorlabs DCx cameras are shipped with a 1.5m USB2.0, A to Mini B, cable.
5.6.1 Accessories for DCU22xX / DCC1240X
For information on the pin assignment of the cables and connectors see chapter Pin Assignment I/O Connector.

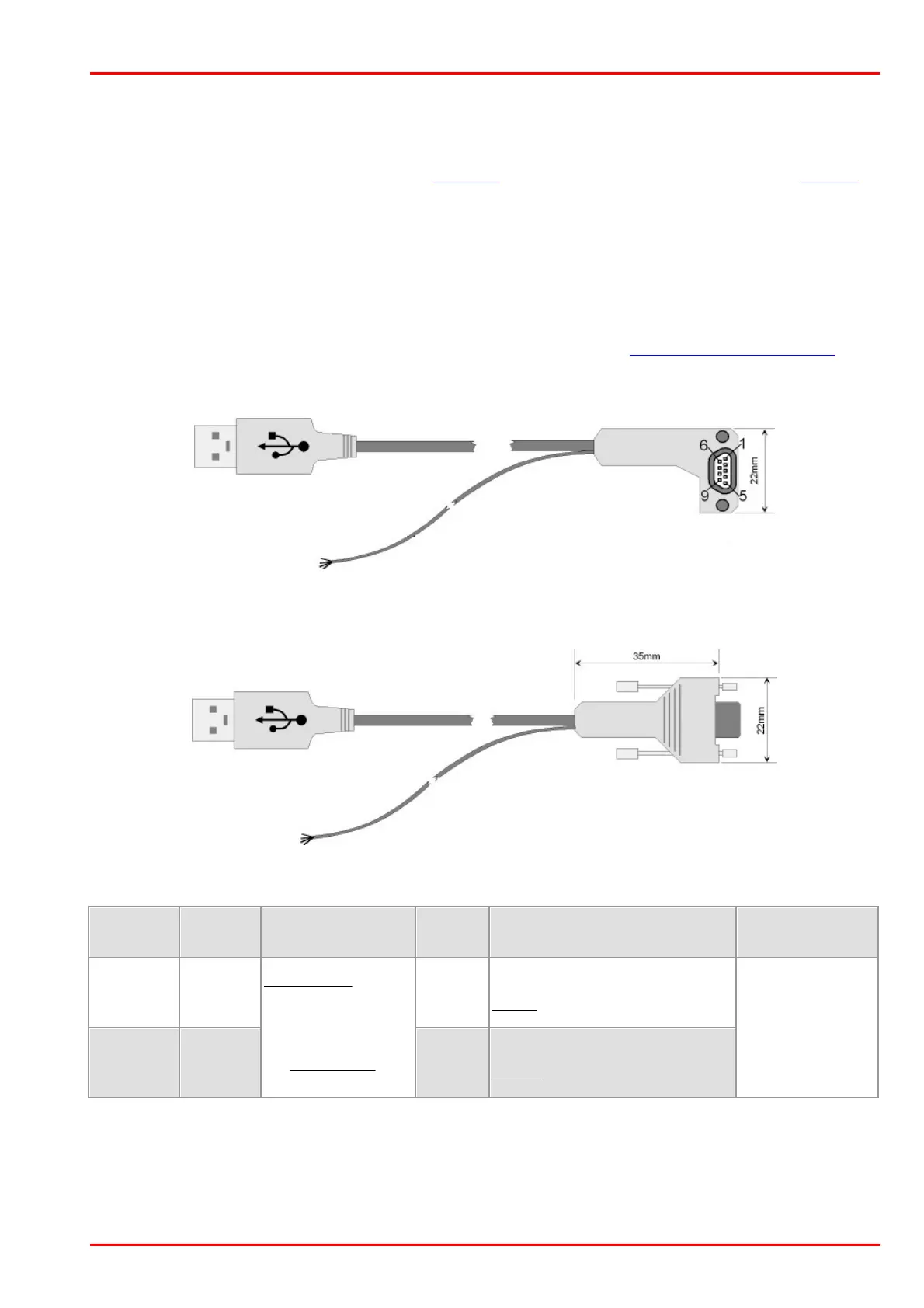

USB Cables with Cables for digital I/Os
CAB-DCU-T1 (angled Micro D SUB camera connector; trigger in / out)
CAB-DCU-T2 (straight Micro D SUB camera connector, trigger in only)
Type
Length
Cable Type
Functio
n
Connector Camera Side
Connector PC
Side
CAB-DCU-T1
3 m
USB cable, AWG
28, single
shielded,
additional cable
for digital I/Os, 4-
wire, open wires
USB &
Trigger
in / out
Micro D-Sub for screw-mounting,
angled
USB 2.0
Type A
CAB-DCU-T2
3 m
USB &
Trigger
in
Micro D-Sub for screw-mounting,
straight

THORLABS DCU22 Series Specifications

General

Brand	THORLABS
Model	DCU22 Series
Category	Security Camera
Language	English
