DCx Camera Functional Description and SDK Manual
5.6.2 Accessories for DCC1x45X
For USB cables and accessories see also Accessories for all DCx cameras.
DCC1545M and DCC1645C CS mount cameras are delivered with both CS / C objective mount
adapter and CS / SM1 1" optics adapters.

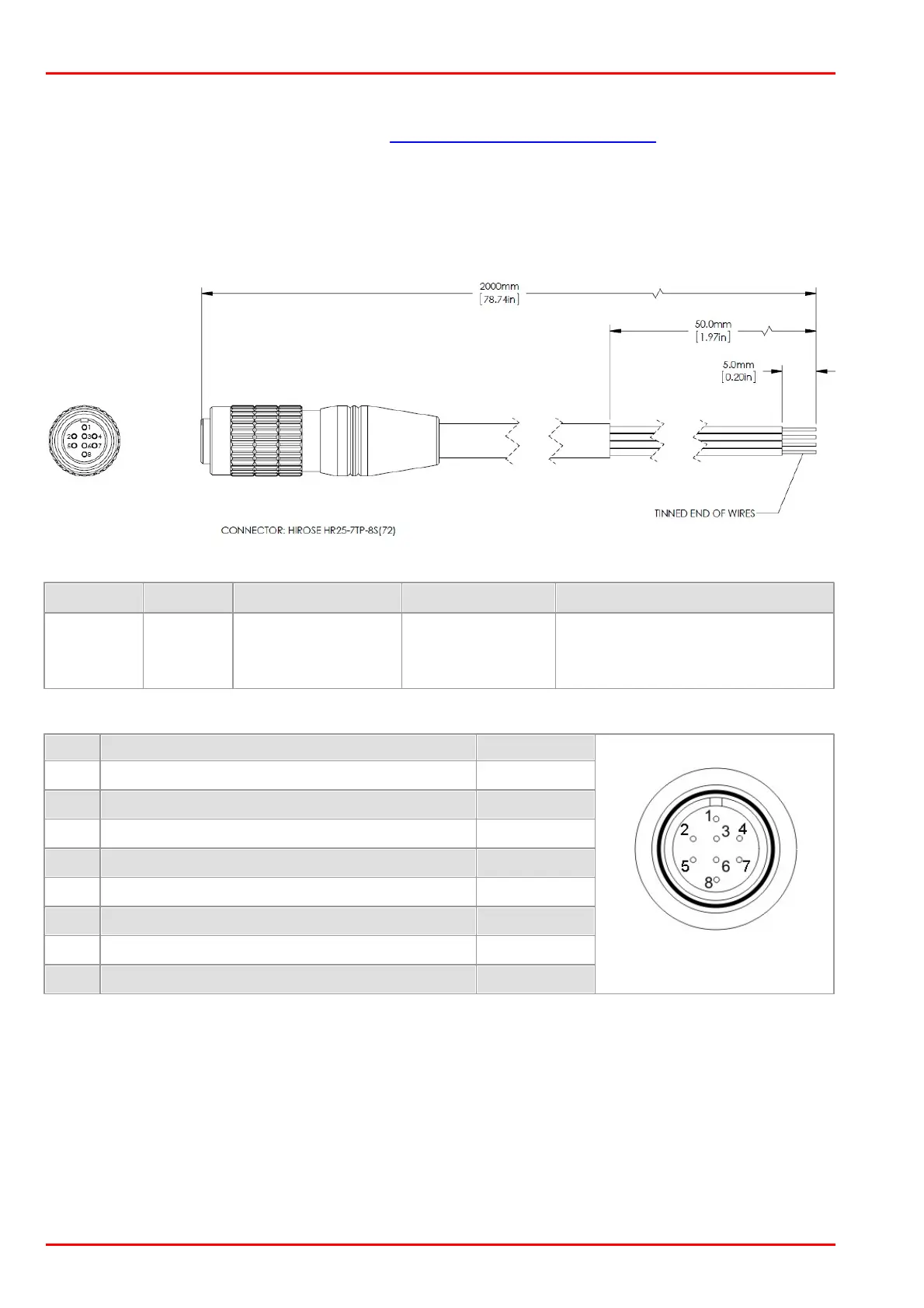

5.6.3 Accessories for DCC3240x / DCC3260x
Type
Length
Cable Type
Function
Connector Camera Side
CAB-DCU-T3
2 m
Shielded high-
flexible control cable
8 x0.1mm, Ø 4.9mm
GPIO
digital in (trigger)
digital out (flash)
Hirose 8 pin (HR25)
Pin assignment of the 8-pin Hirose connector HR25 for trigger, flash and GPIO
Pin
Description
Cable color
Hirose connector female,
cable tip view
1
Ground (GND)
gray
2
Flash output, opto-decoupled (-)
green
3
GPIO 1, 3.3 V LVCMOS
blue
4
Trigger input, opto-decoupled (-)
brown
5
Flash output, opto-decoupled (+)
yellow
6
GPIO 2, 3.3 V LVCMOS
red
7
Trigger input, opto-decoupled (+)
white
8
Output supply voltage, 5 V (100 mA)
pink
