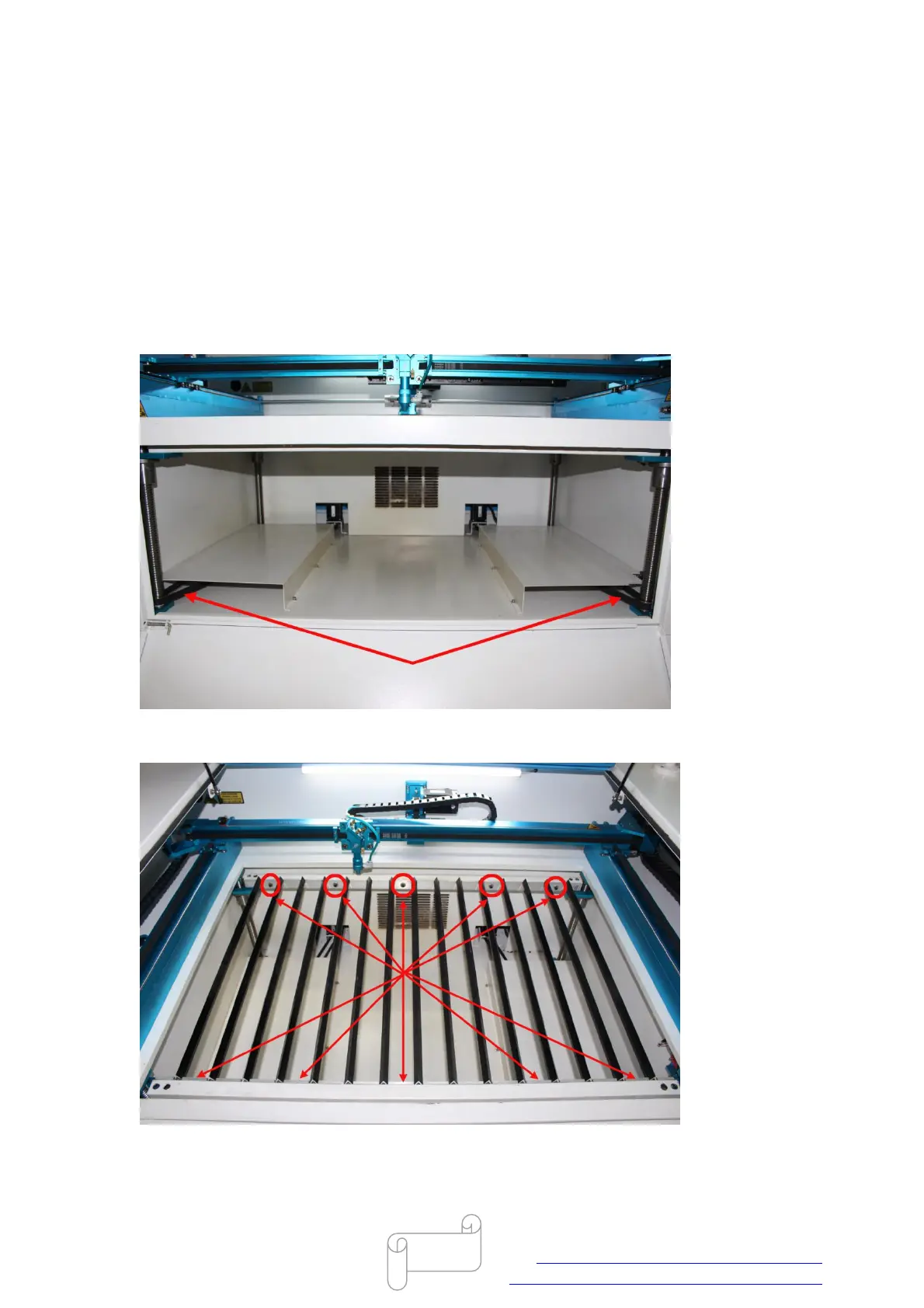

4.4 How to calibrate the working table to level.
There are three cases.
1. Two sides of the working table are not of the same height.
Turn off the whole machine power, manually pull one of the belts of Z axis so as to adjust the up
and down of the working table height of this side and calibrate the level in this way. Shown as
below:
2. If it’s one of the four corners that is of different height from the other three corners, use
method 2.
As shown above, by adjusting these screws you can fine adjusting the support frame of the knife
table so as to calibrate height of one corner.
