4.6 How to adjust the verticality between the X and Y Axis？
There are two solutions：
1. Unfix the X Axis.

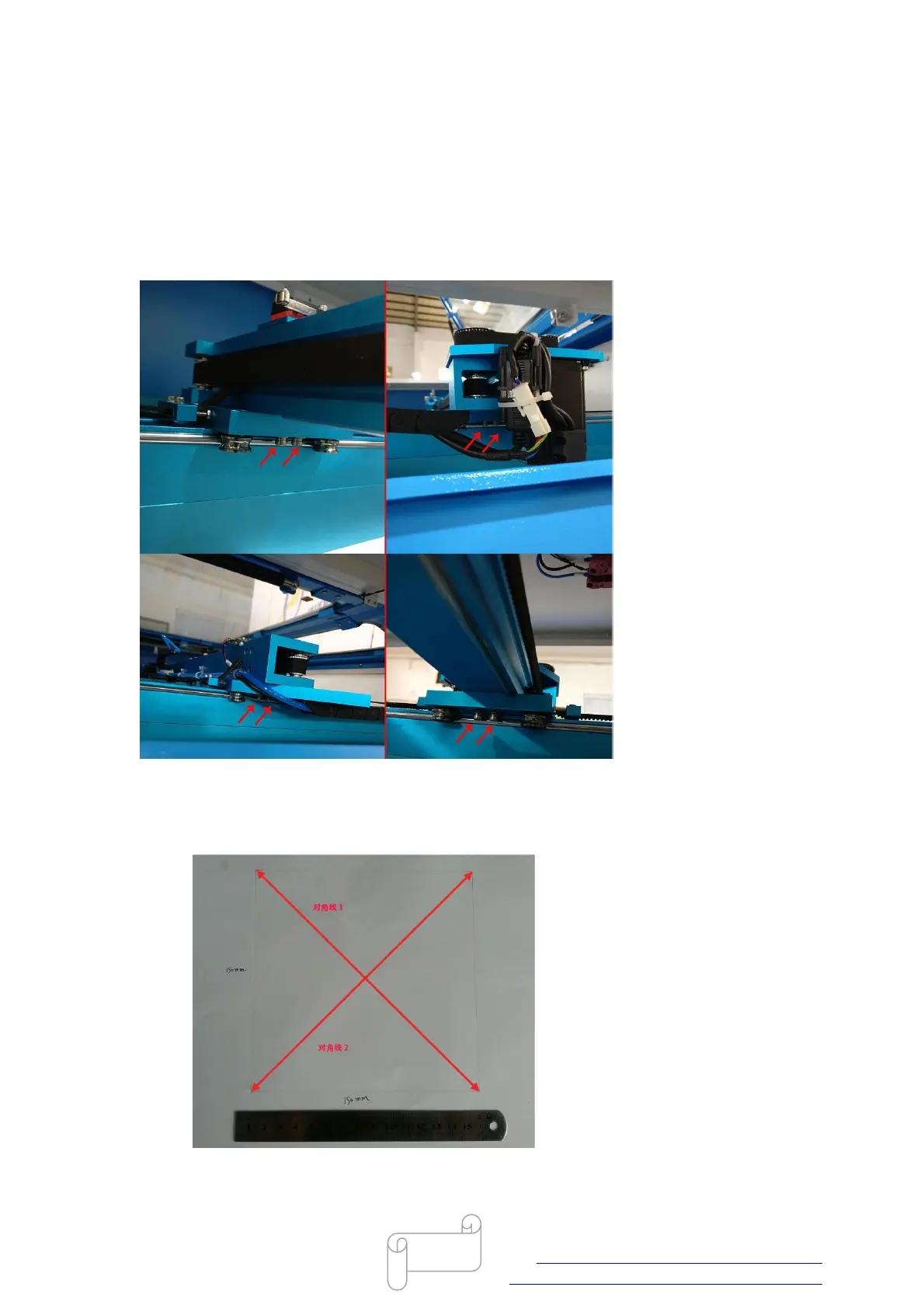

Turn off the whole machine power. There are four screws for each side，loosen them then you
can fine tuning the angle of the X Axis. Shown as bellow.
Diagonal line 1 = Diagonal line 2.
Error value must be less than 0.5mm like below:
① If the Diagonal line 1 > Diagonal line 2.
